In the world of industrial sealing, ring joint gaskets play a vital role in ensuring leak-free connections in pipelines, pressure vessels, and equipment operating under extreme pressure and temperature. Among the many varieties of ring joint gaskets, the R, RX, and BX types are some of the most commonly used in high-pressure sealing applications. Understanding the differences between these types, their specific design features, advantages, and typical use cases is essential for engineers, maintenance teams, and procurement professionals to select the best gasket for their needs.
This comprehensive guide will explain what R, RX, and BX ring joint gaskets are, how they differ, and why choosing the correct type matters for safety, reliability, and cost-effectiveness.
Before diving into the specific types, it’s important to review the basic concept of a ring joint gasket. Ring joint gaskets (RTJ gaskets) are metal sealing rings designed to fit into a precisely machined groove on a flange face. When the flange bolts are tightened, the gasket's edges embed into the flange surfaces, creating a tight, metal-to-metal seal that can withstand very high pressures and temperatures.
Unlike softer gaskets made of rubber or compressed fiber materials, ring joint gaskets rely on the mechanical deformation of metal to seal the joint, making them highly resistant to extrusion, chemical attack, and temperature extremes. Because of these qualities, they are commonly used in critical applications such as oil and gas pipelines, chemical plants, power generation facilities, and heavy industry.
The R, RX, and BX ring joint gaskets are all designed to meet specific sealing needs, but they differ primarily in their cross-sectional shape and sealing mechanism. Each type corresponds to a particular flange groove profile standardized under ASME B16.20, a widely recognized industrial standard for ring joint gaskets.

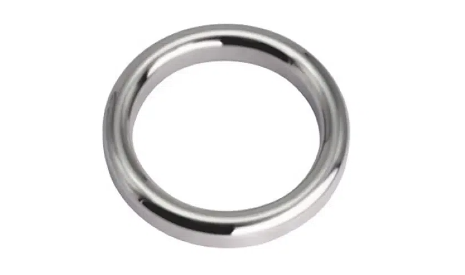

The R-type ring joint gasket features an oval cross-section and is the most traditional and widely used style. It is designed to fit into an oval-shaped groove machined into the flange face. When bolted together, the gasket’s outer and inner edges create two sealing points against the groove and flange, respectively.
Key characteristics:
The oval shape provides a large sealing surface area.
It offers excellent sealing performance under high pressure and temperature.
It is versatile and suitable for a wide range of applications, from moderate to very high pressure.
Typically made from carbon steel, stainless steel, or alloy metals, depending on service requirements.
The RX-type gasket is an evolution of the R-type, also featuring an oval shape but with a rounded cross-section and more refined sealing edges. This design enhances sealing performance by reducing the risk of damage to flange grooves during installation and improving gasket-to-flange contact.
Key characteristics:
The RX gasket’s rounded profile offers better stress distribution.
It reduces flange groove wear and extends flange life.
It performs well in dynamic or thermal cycling applications where flange movement occurs.
It provides slightly improved sealing reliability compared to the R-type under some conditions.
The BX-type gasket has a octagonal cross-section, creating multiple sealing edges that engage the flange groove. This profile is typically used in flanges designed with a matching octagonal groove.
Key characteristics:
The octagonal shape forms four sealing surfaces on each side, for a total of eight sealing points.
It provides excellent sealing under fluctuating pressures and temperatures.
It is ideal for severe service conditions with high vibration or thermal shock.
Because of its multiple sealing edges, it is considered a more robust option in challenging environments.
To better understand which gasket type suits your application, it helps to compare their design features, performance advantages, and typical applications side by side.
R-Type: Oval shape with relatively sharp sealing edges. Suitable for many standard applications.
RX-Type: Rounded oval profile with smoother edges, reducing flange groove damage.
BX-Type: Octagonal shape with multiple sealing edges for enhanced sealing and resilience.
The R-type gasket seals effectively through the metal-to-metal contact at two edges, providing reliable sealing at high pressure.
The RX-type improves upon the R-type by distributing the sealing force more evenly, which enhances seal integrity and reduces flange wear.
The BX-type gasket offers superior sealing thanks to multiple sealing edges, making it especially suitable for fluctuating or dynamic pressure environments.
Each gasket type requires a matching flange groove profile:
R-type fits into an oval groove.
RX-type fits into a rounded oval groove.
BX-type fits into an octagonal groove.
Flange grooves must be machined to precise dimensions according to ASME B16.20 to ensure proper gasket fit and seal.
R-Type: Used in general high-pressure piping and equipment in oil and gas, petrochemical, and power generation industries.
RX-Type: Preferred in applications where flange damage from gasket installation is a concern, or where thermal cycling causes flange movement.
BX-Type: Ideal for severe service conditions, such as offshore platforms, compressors, and environments with vibration or pressure fluctuations.
The choice of material for ring joint gaskets is as critical as the profile type. Common materials include:
Carbon Steel: Widely used for general service and moderate corrosive environments.
Stainless Steel (304, 316): Preferred for corrosion resistance in chemical and marine applications.
Alloy Steels (Inconel, Monel, Hastelloy): Used for extreme temperature and corrosive conditions.
Soft Metal Inserts: Some RTJ gaskets incorporate soft metal layers, such as silver or copper coatings, to enhance sealing under specific conditions.
Choosing the right material depends on factors like operating temperature, pressure, media compatibility, and regulatory requirements.
Proper installation of ring joint gaskets is vital to achieve the expected sealing performance and long service life:
Inspection: Always inspect flange grooves for damage or irregularities before installation. Damaged grooves can compromise the seal.
Cleanliness: Ensure all surfaces are clean and free of debris or corrosion.
Correct Gasket Type: Match the gasket type exactly to the flange groove profile to avoid leaks or damage.
Proper Torque: Use the manufacturer’s recommended bolt torque and tightening sequence to apply even pressure.
Avoid Reuse: Ring joint gaskets are generally single-use because the sealing edges deform during installation.
Regular maintenance and inspection of flanged joints help detect early signs of leaks or flange damage, allowing for timely intervention.
Choosing the correct type of ring joint gasket—whether R, RX, or BX—is essential for ensuring a secure, reliable seal in high-pressure industrial applications. Each type has distinct design features and performance advantages tailored for different operating conditions and flange designs. Understanding these differences allows users to optimize sealing performance, reduce maintenance costs, and enhance operational safety.
