Knife gate valves have become indispensable components in many industrial pipelines, especially those handling thick fluids, slurries, and solids. Their unique design and functionality enable smooth flow control even under challenging conditions. However, selecting the right knife gate valve for your specific pipeline can be complex, considering the many options available and the critical nature of valve performance in industrial processes.
This comprehensive guide will walk you through the key factors to consider when choosing a knife gate valve. From understanding the working principles to evaluating material compatibility, pressure ratings, and actuation methods, you will gain practical insights to make an informed decision. By the end, you will know how to pick a knife gate valve that ensures optimal performance, durability, and safety in your pipeline system.

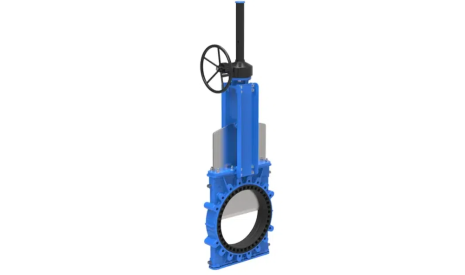

Before diving into selection criteria, it’s important to briefly understand what a knife gate valve is and how it works. Unlike traditional gate valves, knife gate valves feature a sharp-edged gate that slides vertically to open or close the valve. This blade-like gate can cut through thick liquids and solids, making it ideal for slurry, pulp, wastewater, mining, and other abrasive or fibrous media.
Knife gate valves usually provide a full bore when open, minimizing flow resistance and pressure drop. Their design is simpler, lighter, and often more cost-effective compared to other valve types used for similar applications.
The first and most important consideration is the nature of the fluid or media flowing through your pipeline. Knife gate valves are specifically designed to handle challenging media such as:
Slurries with suspended solids
Viscous liquids with fibrous content
Abrasive materials like pulp or grit
Thick sludge and wastewater
If your media fits these categories, a knife gate valve is likely suitable. However, understanding the particle size, concentration, and corrosiveness of the media will help determine the valve materials and design needed.
Knife gate valves have different pressure and temperature limits depending on their construction and materials. Typically, they are used in low to moderate pressure applications, but high-quality valves can handle pressures up to several hundred PSI.
Check the maximum operating pressure and temperature ratings to ensure the valve matches your pipeline conditions. Overlooking this can lead to premature failure or safety risks.
Valve size is critical. Knife gate valves come in a wide range of diameters to fit various pipelines. Selecting the correct size ensures minimal pressure drop and smooth operation.
There are also two main bore types:
Full Bore (Full Port): The valve opening matches the pipeline diameter, offering unrestricted flow. Ideal for slurry and abrasive media.
Reduced Bore: The valve opening is smaller than the pipeline, which can cause minor pressure loss but may be more compact or cost-effective.
For slurry and solid-laden fluids, full bore valves are generally preferred.
The material of the valve body, gate, and seat directly impacts durability, corrosion resistance, and cost. Common materials include:
Stainless Steel: Offers excellent corrosion resistance and durability, suitable for harsh and corrosive environments.
Carbon Steel: Often used for less corrosive media, offering strength at a lower cost.
Ductile Iron: Provides good strength and is more economical, but less resistant to corrosion.
Alloys and Special Coatings: For highly abrasive or corrosive media, valves may have hard-faced gates or special coatings to extend service life.
Seats can be made of resilient materials like polyurethane, rubber, or PTFE, improving sealing performance especially in slurry applications.
Knife gate valves can be operated manually or automatically:
Manual Actuation: Handwheel or lever operation suitable for smaller valves or systems where frequent operation is not needed.
Electric Actuators: Provide remote control and automation, ideal for large valves or difficult-to-access locations.
Pneumatic or Hydraulic Actuators: Offer fast and powerful operation for large industrial valves, often used in heavy-duty processes.
Choose the actuation type based on operational frequency, safety requirements, and available infrastructure.
Sealing is critical to prevent leaks and maintain pipeline integrity. Knife gate valves use different sealing mechanisms depending on design and application:
Soft Seated Valves: Use resilient seat materials for tight sealing against irregular or solid-laden media.
Metal Seated Valves: Suitable for high-temperature or abrasive media but may have less tight sealing.
Dual Sealing: Some valves offer combination seats for enhanced performance.
Confirm the valve’s sealing performance matches your requirements for leakage prevention.
Industrial pipelines demand valves that are not only durable but also easy to maintain. Features to look for include:
Easy access to seats and gate for inspection and replacement
Minimal parts that can wear out or fail
Availability of spare parts and technical support
Good maintenance practices extend valve life and reduce downtime.
Ensure the knife gate valve complies with relevant industry standards such as API (American Petroleum Institute), ANSI (American National Standards Institute), ISO, or other regional regulations. Compliance guarantees safety, quality, and compatibility with your system.
While cost is important, it should not override quality and suitability. An inexpensive valve that fails early can lead to higher operational costs. Balance initial investment with expected lifespan, maintenance needs, and reliability.
Knowing where knife gate valves are typically used helps frame your decision:
Mining and mineral processing
Wastewater treatment plants
Pulp and paper industry
Chemical processing involving slurry
Food and beverage processing with thick fluids
Proper installation of a knife gate valve is crucial to ensure its optimal performance and long service life. Before installation, carefully review the manufacturer’s guidelines and technical specifications to understand the valve’s specific requirements. One of the most important steps is ensuring correct alignment between the valve and the pipeline. Misalignment can cause uneven wear on the gate and seats, leading to leakage or premature failure. It can also make operation difficult and increase maintenance needs.
Additionally, provide adequate support for both the valve and the adjoining pipeline sections. Knife gate valves can be heavy, especially in larger sizes, so relying solely on the pipeline for support can cause stress and damage over time. Use proper mounting brackets or supports to minimize mechanical strain.
During installation, ensure the valve is installed in the correct orientation as specified—usually with the gate moving vertically—and confirm that the flow direction matches any markings on the valve body. Finally, test the valve operation after installation to verify smooth movement and proper sealing before putting the system into full service.
Selecting the right knife gate valve involves careful consideration of media characteristics, pressure and temperature requirements, material compatibility, actuation methods, and maintenance needs. Taking time to evaluate these factors ensures you invest in a valve that performs reliably and efficiently over its service life.
For high-quality knife gate valves tailored to demanding industrial pipelines, Wenzhou Kasin Valve Co., Ltd. offers a broad range of durable, innovative solutions designed to meet diverse operational challenges. Their expertise can help you find the perfect valve to enhance your pipeline system’s performance and longevity.
