Valves play an essential role in industrial systems, helping to control the flow of liquids, gases, or slurries through pipelines. Among the many valve types available, gate valves are widely used due to their straightforward operation and effective sealing capabilities. However, even within the category of gate valves, there are distinct variants, notably the knife gate valve and the traditional gate valve. Understanding the differences between these two types is crucial for selecting the right valve for specific industrial applications.
This article aims to provide a comprehensive comparison between knife gate valves and traditional gate valves, focusing on their design, working principles, suitable applications, advantages, and limitations. By the end, you’ll have a clear idea of which valve type best fits your operational needs.
Gate valves are designed to start or stop the flow in a pipeline by lifting or lowering a gate inside the valve body. When the gate is fully lifted, the valve is open and allows fluid to pass with minimal resistance; when lowered, it blocks the flow completely. These valves are primarily intended for on/off service rather than flow regulation.
Despite the similar operating concept, knife gate valves and traditional gate valves have notable design and functional differences that influence their performance and application suitability.
The traditional gate valve typically features a wedge-shaped metal gate (also called a disc) that moves perpendicular to the flow. This gate fits tightly between two seats to form a seal. The valve body is usually more robust, designed to withstand higher pressures, and the internal gate often has a solid, flat or wedge-shaped design.
Traditional gate valves come in two common types: parallel gate and wedge gate. Both types are used for clean fluids such as water, oil, or steam, where media is generally free of solids.

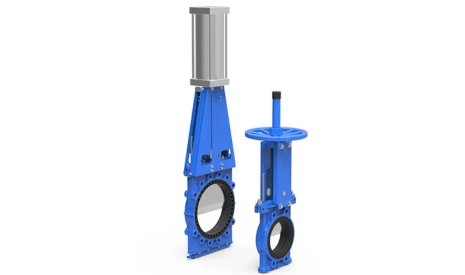

Knife gate valves, in contrast, have a thinner, sharper-edged gate designed to "cut" through thick, viscous, or slurry-type media. The gate slides vertically and has a sharp blade edge resembling a knife, which enables it to pass through fibrous or solid-laden fluids.
The body of a knife gate valve is often more streamlined, sometimes with a full bore design that allows unobstructed flow when open. Many knife gate valves are also designed with softer seats to improve sealing against challenging media.
Both valve types operate on the principle of a gate moving up or down to open or close the flow path. However, the knife gate valve’s sharp edge and thinner gate allow it to slice through solid materials, which traditional gate valves cannot easily handle.
Traditional gate valves require clean, non-abrasive fluids because solids or fibrous content can damage the seats or prevent full closure. Knife gate valves are specifically built to work in tougher conditions where sludge, slurry, or fibrous materials are present.
Traditional gate valves generally provide excellent sealing in clean fluid applications, thanks to their robust metal-to-metal or metal-to-rubber seats. They are designed to achieve a tight shut-off under high-pressure conditions.
Knife gate valves use either soft or metal seats, with soft seats being common to enhance sealing against irregular, solid-laden media. While knife gate valves can seal effectively in their intended environments, they may not provide the same high-pressure sealing as traditional gate valves.
This is where the most significant difference lies. Traditional gate valves are ideal for clear fluids such as water, oil, and gas. Their thicker gate and robust seat arrangement are not suitable for slurry or solid-laden fluids.
Knife gate valves excel in handling thick, viscous, and abrasive materials like sludge, slurry, and pulp. Their sharp blade cuts through solids and prevents clogging, which traditional gate valves cannot manage.
Traditional gate valves typically handle higher pressure and temperature ranges, often found in steam systems or oil and gas pipelines.
Knife gate valves are usually rated for lower pressures and moderate temperatures, matching their primary application in wastewater treatment, mining, and pulp industries.
Both valves provide full bore flow when open, minimizing pressure drop. However, knife gate valves with their streamlined body can sometimes offer slightly better flow characteristics in slurry lines due to less risk of sediment buildup.
Due to their durability and sealing capabilities, traditional gate valves are common in:
Water supply and distribution systems
Oil and gas pipelines
Steam and power plants
HVAC systems
Chemical processing involving clean fluids
Knife gate valves find their strength in:
Wastewater treatment plants handling sludge and grit
Mining and mineral processing with abrasive slurries
Pulp and paper industry managing fibrous pulp stock
Food processing where viscous, thick fluids are present
Construction and cement industries with abrasive media
High pressure and temperature tolerance
Excellent sealing for clean fluids
Durable and long service life in proper conditions
Minimal pressure loss when fully open
Not suitable for media containing solids or fibers
Heavier and bulkier designs
Slower operation due to higher torque required
Cuts through fibrous, viscous, and solid-laden fluids
Lighter and often more compact design
Lower operating torque due to thin gate
Easier maintenance in slurry environments
Generally lower pressure and temperature limits
Soft seats may wear faster in abrasive conditions
Not ideal for throttling or flow regulation
Traditional gate valves, while robust, may require significant maintenance if used outside their ideal application, such as with slurry media. Seat damage or gate corrosion can lead to leakage or failure.
Knife gate valves, due to their exposure to abrasive or corrosive materials, require regular inspection and maintenance of seats, seals, and the gate blade. The softer seats may need periodic replacement to maintain sealing efficiency.
Selecting the right valve depends on your specific system requirements:
If your system handles clean fluids at high pressure and requires tight shut-off, traditional gate valves are often the best choice.
If your system deals with slurry, sludge, fibrous, or abrasive media where clogging is a risk, knife gate valves provide the necessary durability and cutting action.
Understanding the operational environment, media characteristics, pressure, temperature, and maintenance capacity is crucial for the right valve selection.
Knife gate valves and traditional gate valves serve distinct purposes in industrial fluid control. Their fundamental difference lies in their design and ability to handle different types of media. Knife gate valves are specialized for tough, slurry-filled environments, whereas traditional gate valves excel in clean, high-pressure systems. Choosing between them requires careful evaluation of your application’s unique demands to ensure efficient, reliable, and long-lasting valve performance.
