A knife gate valve is a specialized type of valve used to isolate or shut off the flow of fluids, slurries, or other semi-solid media in industrial pipelines. What makes it distinct is the presence of a sharp-edged gate, typically made of stainless steel, that slices through thick, abrasive, or fibrous materials during operation. This cutting function not only gives the valve its name but also makes it ideal for harsh applications where ordinary valves may clog, jam, or fail altogether.
Unlike globe or ball valves, which are better suited for regulating flow, the knife gate valve is primarily used for on-off control. When the gate is fully raised, the valve allows unobstructed flow. When lowered, it seals against the valve seat, stopping the flow entirely. This design helps reduce pressure drop and minimizes blockage, particularly in systems where the media contains solids or sludge.

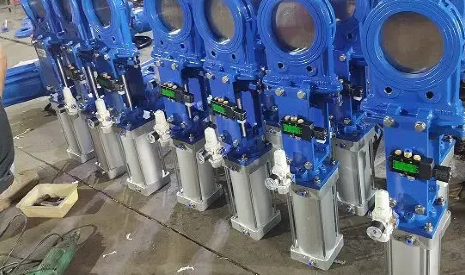

At its core, the knife gate valve operates through a simple mechanism. A flat or slightly concave blade, called the gate, moves up and down inside the valve body. It is actuated manually or automatically via a handwheel, pneumatic cylinder, electric motor, or hydraulic actuator. The gate travels perpendicular to the flow of the medium. When the gate is fully open, it retracts into the valve body or bonnet, leaving a wide-open passageway. When closed, it presses against a seat, usually at the bottom of the valve body, to form a tight seal.
The sharp edge of the gate allows it to cut through solid-laden or viscous material that could otherwise prevent the valve from sealing properly. In applications like wastewater, pulp processing, or mining slurry handling, this feature is essential to maintaining consistent flow control.
Knife gate valves are widely used across a variety of industries due to their ability to handle difficult media. In wastewater treatment plants, for example, these valves can manage fluids with suspended solids, sand, or debris. In mining and minerals processing, they are often installed in pipelines transporting ore slurry or gravel-laden mixtures. The pulp and paper industry also depends on knife gate valves to regulate flows of fibrous pulp mixtures, which could clog other types of valves.
Food processing plants use them as well, especially in systems dealing with thick pastes or grain-based mash. Specialized knife gate valves made from sanitary-grade materials help maintain cleanliness and meet health standards. Even in the chemical and power generation industries, knife gate valves are used when durability and the ability to handle corrosive or high-temperature media are required.
A typical knife gate valve is composed of the following major parts:
Valve Body: Houses the gate and provides structural support. Made from materials like cast iron, ductile iron, stainless steel, or special alloys.
Gate: The flat blade that moves to open or close the valve. Often made of corrosion-resistant stainless steel.
Seat: The surface the gate seals against. Can be metal or soft-seated using rubber, PTFE, or other elastomers.
Stem: Connects the gate to the actuator.
Packing Gland: Prevents leakage around the stem.
Actuator: Mechanism that moves the gate. Can be manual or automated depending on application needs.
Material selection is important and depends heavily on the type of media, pressure, and operating environment. For instance, high-chloride media may require duplex or super duplex stainless steel, while abrasive slurries benefit from hardened gates and wear-resistant linings.
Knife gate valves offer several advantages over other types of flow control valves. One major benefit is their ability to function in conditions that would disable standard valves. The sharp gate cuts through thick or solid-laden materials that could block or wear down globe or ball valves. The design also allows for a full bore opening, which reduces pressure drop and ensures efficient flow.
Another advantage is the valve’s relatively low cost compared to more complex types, especially in larger sizes. Installation is simple, and maintenance is generally straightforward since the valve has fewer moving parts. In many cases, the gate, seat, and packing can be replaced without removing the entire valve from the pipeline.
Despite their advantages, knife gate valves are not suitable for every application. They are not ideal for throttling or modulating flow, as partially open gates can create turbulence, leading to wear and poor control. Additionally, most knife gate valves are designed for unidirectional flow and may not seal properly if installed backward unless they are specified as bi-directional models.
Leakage can also become an issue if the seat or gate becomes worn, especially when dealing with high-pressure systems. Over time, abrasive media can degrade the sealing surfaces, so regular inspection is critical to long-term performance. These valves also tend to have relatively slower response times compared to quarter-turn valves like butterfly or ball valves.
Installing a knife gate valve requires precision and care. The valve must be properly aligned with the pipeline flanges to avoid torque or stress on the body. Over-tightening flange bolts can distort the valve and cause seat leakage. It’s also essential to ensure that the valve is mounted in the correct orientation for flow direction, particularly if it’s a unidirectional model.
Maintenance includes periodic inspections of the gate for signs of wear, pitting, or deformation. The packing gland around the stem should be monitored for leaks and adjusted or replaced as needed. If media build-up occurs inside the valve body, especially in systems with thick slurry or pulp, the valve may need to be flushed or manually cleaned. A good preventive maintenance plan can greatly extend the service life of the valve and avoid costly unplanned shutdowns.
Modern knife gate valve technology has evolved significantly, with manufacturers offering models that overcome traditional limitations. Double-seated or bi-directional valves allow for flow in both directions, improving versatility and safety. Self-cleaning designs prevent build-up and sticking, especially in fibrous media. There are also enhanced sealing systems that reduce leakage and improve performance in higher-pressure or more corrosive environments.
Automation and digital control have also influenced the development of knife gate valves. Smart actuators can be equipped with sensors to monitor valve position, cycle count, and even internal wear patterns. This data can be used to schedule maintenance more effectively, reduce downtime, and support predictive maintenance strategies.
Selecting the right knife gate valve depends on several factors: the type of media, pressure and temperature requirements, flow characteristics, and operating frequency. For abrasive media, a valve with a hardened gate and wear-resistant seat is essential. For corrosive fluids, stainless steel or alloy construction may be necessary. If automation is needed, the type of actuator—manual, pneumatic, hydraulic, or electric—must be matched with the system’s control logic.
Sizing is also important. Oversized valves may lead to slow actuation and increased costs, while undersized valves can restrict flow and accelerate wear. Consulting with manufacturers or experienced valve engineers can help ensure that the correct specifications are chosen for optimal long-term performance.
The knife gate valve is a robust and reliable solution for isolating the flow of heavy, viscous, or solid-laden media. Its unique design, featuring a sharp gate that cuts through difficult materials, makes it indispensable in industries ranging from mining and wastewater to food processing and pulp production. While it’s not suited for every application, when used appropriately, it delivers excellent performance, ease of maintenance, and long-term durability. As industrial systems become more demanding and precise, the knife gate valve continues to evolve, combining simple mechanical principles with modern materials and smart technology to meet the needs of the future.
