In the complex world of industrial flow control, a deep understanding of valve mechanisms is essential for engineers, operators, and maintenance personnel. Valves play a critical role in regulating, directing, and controlling the flow of various media, including liquids, gases, slurries, and dry materials. Among the plethora of valve types available, slide gate valves and knife gate valves are frequently utilized due to their effectiveness in specific applications. However, these valves, while similar in some respects, possess distinct characteristics that make them suitable for different operational environments.
This comprehensive analysis aims to elucidate the differences between slide gate valves and knife gate valves. By dissecting their design principles, operational mechanisms, material constructions, and application domains, we seek to provide valuable insights that can aid in the selection of the appropriate valve type for specific industrial needs. The significance of choosing the right valve cannot be overstated, as it impacts not only the efficiency and safety of operations but also the longevity and maintenance costs of the equipment involved.
The knife gate valve, in particular, has garnered significant attention in industries dealing with challenging media. Its unique ability to handle slurries, viscous fluids, and media containing solids sets it apart from other valve types. On the other hand, slide gate valves are widely used in bulk material handling, especially with dry solids and powders. Understanding these differences is crucial for optimizing industrial processes and ensuring compliance with regulatory standards.
At the core of the differences between slide gate valves and knife gate valves lies their design and structure. These fundamental distinctions dictate their suitability for various applications and influence their operational efficiency and maintenance requirements.
Slide gate valves feature a simple yet effective design consisting of a flat gate that slides in and out of the flow path. The gate is typically rectangular and operates perpendicular to the flow direction. When the gate is fully inserted, it blocks the flow completely; when retracted, it allows full flow through the valve. This design is particularly effective for on/off applications in gravity-fed systems.
The simplicity of the slide gate valve's design translates to ease of manufacturing and lower costs. However, the sealing surfaces in slide gate valves are usually metal-to-metal, which may not provide a leak-proof seal, especially for fine powders or gases. This limitation confines their use primarily to applications where absolute sealing is not critical.

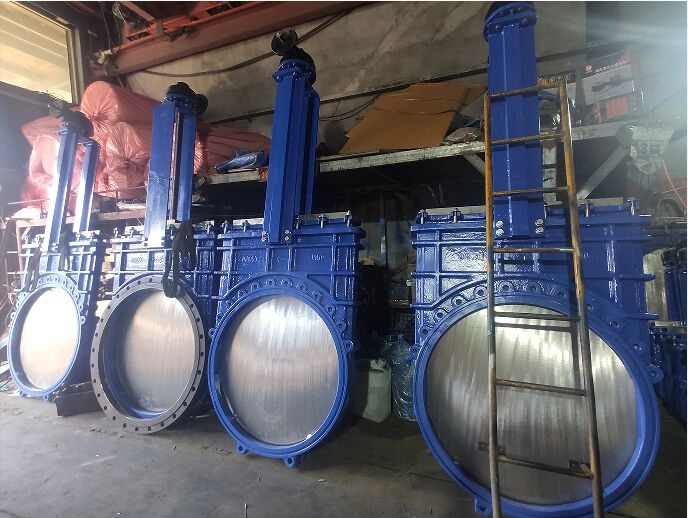

Knife gate valves are engineered with a sharp-edged gate or blade that can cut through tough or thick media. The gate moves in a linear motion, slicing through the media as it closes. This design is particularly beneficial for handling viscous fluids, slurries, and media with suspended solids that could clog other valve types.
Manufacturers like Kasin Valves have advanced the design of knife gate valves by incorporating features such as replaceable wear seats, advanced sealing technologies, and materials suited for harsh environments. The robust construction ensures durability and reliability even under demanding conditions.
The body of a slide gate valve is generally fabricated from materials like carbon steel or stainless steel and is designed to be compact and lightweight. The gate is guided within grooves or channels, ensuring alignment during operation. However, due to the metal-to-metal contact, wear and leakage can become issues over time, especially in abrasive applications.
In contrast, knife gate valves often have a heavier and more robust body to withstand the stresses of cutting through media. The gate is guided and supported to prevent deflection, which is crucial for maintaining sealing integrity. Seals or packings are employed around the gate to prevent leakage, and the design often includes features to purge or clean the sealing surfaces, extending the valve's operational life.
Selecting the right materials for valve construction is vital for ensuring performance, durability, and safety. The choice of materials depends on factors such as the type of media, operating temperature and pressure, and environmental conditions.
Slide gate valves are commonly constructed from materials suitable for handling dry bulk materials. Carbon steel is often used for general applications due to its strength and cost-effectiveness. Stainless steel may be employed when corrosion resistance is required, such as in food processing or chemical applications. The simplicity of the design allows for the use of standard materials without the need for specialized alloys.
However, the metal-to-metal sealing surfaces can be susceptible to wear, especially in abrasive applications. To mitigate this, hard-facing materials or surface treatments may be applied to enhance wear resistance. Alternatively, replaceable wear plates can be incorporated into the design to extend the valve's service life.
Knife gate valves require materials that can endure harsh conditions and abrasive media. Manufacturers like Kasin Valves offer a range of materials, such as stainless steel, ductile iron, and special alloys like Hastelloy or Monel for corrosive environments. The gate itself is often made from hardened stainless steel to maintain a sharp edge and resist wear.
Seals and packings are critical components and are selected based on compatibility with the media and operating conditions. Materials like PTFE, EPDM, or Viton are commonly used for their chemical resistance and sealing properties. The ability to tailor materials to specific applications enhances the versatility and reliability of knife gate valves.
Effective sealing is essential for preventing leakage, maintaining system efficiency, and ensuring safety. The sealing mechanisms of slide gate valves and knife gate valves differ significantly, impacting their suitability for various applications.
Slide gate valves typically employ metal-to-metal seals, which can result in leakage, especially with fine particles or gases. The seal is achieved by the gate pressing against a seating surface, but without elastomeric materials to fill in microscopic gaps, a perfect seal is challenging to attain. This limitation is acceptable in applications where minor leakage is not critical, such as in bulk solid handling.
Advancements in design have introduced options like inflatable seals or soft-seating materials to improve sealing performance. However, these enhancements can increase the complexity and cost of the valve, potentially diminishing one of the slide gate valve's primary advantages—its simplicity.
Knife gate valves are designed to provide a tight seal, even in demanding applications. The sealing mechanism involves elastomeric seals or packings that surround the gate. As the gate moves, the seals adapt to maintain contact, preventing leakage. Some designs incorporate a beveled gate edge that enhances the sealing action by compressing the seal material more effectively.
In applications with high-pressure or abrasive media, metal seats may be used in conjunction with soft seals to provide durability while maintaining sealing performance. The inclusion of purging ports allows for the injection of cleaning fluids or air to remove any build-up around the sealing surfaces, ensuring consistent operation.
The ability of a valve to maintain a tight seal directly affects operational efficiency. Leakage can lead to product loss, environmental hazards, and safety risks. Knife gate valves' superior sealing capabilities make them preferable in applications where such risks are unacceptable. Conversely, slide gate valves, with their less effective sealing, are suitable in systems where minor leakage does not significantly impact operations or safety.
The functionality of slide gate valves and knife gate valves extends beyond their basic open and closed positions. Understanding how they operate and their responsiveness to control inputs is crucial for integrating them into industrial processes.
Slide gate valves are primarily used for on/off control in systems where the flow of dry materials needs to be started or stopped quickly. The gate moves horizontally across the flow path, and the operation can be manual or automated. Manual operation involves a lever or handwheel, while automation can be achieved with pneumatic or electric actuators.
Due to their design, slide gate valves are not ideal for throttling applications. Partial opening can lead to uneven flow, vibration, and increased wear on the gate and sealing surfaces. In systems where flow regulation is necessary, alternative valve types like rotary valves or specially designed knife gate valves may be more appropriate.
Knife gate valves offer greater versatility in operation. The gate moves vertically, cutting through the media, which allows for reliable operation even when the valve is closed against a flowing media containing solids. This capability reduces the risk of clogging and ensures that the valve can open and close as needed.
Knife gate valves can be equipped with various actuators, including handwheels, pneumatic cylinders, electric motors, and hydraulic systems. The choice of actuator depends on factors like the size of the valve, the frequency of operation, and the level of control required. For example, in automated process control systems, electric or pneumatic actuators allow for precise positioning and integration with control logic.
The operational characteristics of these valves influence their integration into process control systems. Knife gate valves' ability to modulate flow and handle challenging media makes them suitable for applications requiring precise control. Slide gate valves, with their on/off functionality, are better suited for applications where flow does not need to be regulated continuously.
Manufacturers like Kasin Valves offer technologically advanced electric knife gate valves that can be seamlessly integrated into modern control systems. Features like position feedback, variable speed operation, and remote control enhance the valve's functionality and contribute to overall system efficiency.
Maintenance considerations are vital for ensuring the reliability and longevity of valves. The operational demands placed on slide gate valves and knife gate valves differ, affecting their maintenance needs and costs.
Slide gate valves, due to their simple design and minimal moving parts, generally require less maintenance. However, the metal-to-metal sealing surfaces are prone to wear, especially in abrasive applications. Regular inspection is necessary to detect signs of wear or deformation that could lead to leakage or operational issues.
Replacing worn components, such as the gate or seat, is straightforward and cost-effective. Lubrication of moving parts can extend the valve's service life and ensure smooth operation. Preventive maintenance practices help to minimize unplanned downtime and maintain the efficiency of the system.
Knife gate valves operate in more challenging conditions and therefore have more demanding maintenance requirements. The seals and packings are critical components that must be regularly inspected for wear and replaced as necessary. Abrasive media can erode the gate and body, necessitating the use of wear-resistant materials or coatings.
Maintenance practices may include cleaning the valve to remove build-up, adjusting the packing to ensure a proper seal, and verifying the operation of the actuator mechanisms. Advanced designs may incorporate features like easy-access packing glands or replaceable seats that simplify maintenance tasks.
The reliability of a valve directly impacts operational continuity and total cost of ownership. While knife gate valves may have higher initial costs and maintenance demands, their durability and performance in harsh conditions can result in cost savings over time. Preventing unplanned downtime and reducing the risk of catastrophic failures are critical considerations.
Slide gate valves offer low initial costs and simplicity, but their limitations in sealing and handling challenging media may lead to increased operational risks in unsuitable applications. Careful analysis of the application's demands and consultation with manufacturers like Kasin Valves can aid in selecting a valve that balances performance, reliability, and cost.
The selection of slide gate valves versus knife gate valves often depends on the specific requirements of the industry and application. Each valve type has areas where it excels, influenced by factors such as the nature of the media, operating conditions, and regulatory requirements.
Slide gate valves are commonly used in industries that handle dry bulk materials. These include agriculture (grain handling), mining (ore and mineral processing), cement production, and food processing (dry ingredients like flour and sugar). Their ability to provide quick shut-off in gravity-fed systems makes them invaluable for controlling material flow during processing and transportation.
In these applications, the simplicity and cost-effectiveness of slide gate valves are significant advantages. The lack of a requirement for tight sealing or handling of challenging media aligns with the valve's design capabilities.
Knife gate valves are prevalent in industries where media contain solids, are viscous, or require reliable sealing. The pulp and paper industry is a prime example, where the valves must handle fibrous slurries without clogging. In wastewater treatment, knife gate valves manage sludge and other solid-laden fluids effectively.
Chemical processing facilities utilize knife gate valves for their ability to handle corrosive and abrasive fluids safely. The mining industry benefits from their robustness in handling slurries with high solid content. In the food and beverage industry, sanitary designs of knife gate valves ensure hygiene while managing viscous food products.
Kasin Valves has developed specialized pneumatic knife gate valves that integrate seamlessly into automated systems, enhancing process control and operational efficiency in these industries.
In wastewater treatment plants, valves must handle a variety of media, including raw sewage, sludge, and treated effluent. Knife gate valves are ideal due to their ability to cut through solids and provide reliable sealing. Their robust construction withstands the corrosive and abrasive nature of the media, ensuring longevity and minimizing maintenance requirements.
Implementing knife gate valves in critical control points enhances the plant's efficiency and compliance with environmental regulations. The valves' compatibility with automated control systems allows for precise management of flow rates and pressures, optimizing the treatment processes.
Environmental protection and safety are paramount in industrial operations. The selection of valves plays a critical role in preventing leaks, spills, and emissions that could harm the environment or pose safety risks to personnel.
Knife gate valves offer superior sealing capabilities, essential in applications where leakage of hazardous or environmentally sensitive media must be prevented. The tight seal reduces the risk of emissions and contamination, supporting compliance with environmental regulations and safety standards.
Slide gate valves, with less effective sealing, may not be suitable in applications where even minor leakage is unacceptable. In such cases, utilizing a knife gate valve or exploring alternative valve types is advisable to mitigate environmental and safety risks.
Selecting materials that resist corrosion and degradation extends the valve's service life and maintains its sealing integrity. In environments with aggressive chemicals or extreme temperatures, materials like stainless steel, Hastelloy, or special polymers are necessary. Manufacturers like Kasin Valves provide options tailored to these demanding conditions.
Using appropriate materials not only ensures performance but also supports environmental compliance by preventing leaks due to material failure. Regular inspections and adherence to maintenance schedules further enhance safety and environmental protection.
Economic factors play a significant role in the selection of valves. Evaluating the total cost of ownership, rather than just the initial purchase price, provides a more accurate picture of the investment required over the valve's lifespan.
Slide gate valves often have lower initial costs due to their simple design and construction. For applications where their limitations are not critical, they offer a cost-effective solution. However, if applied in unsuitable environments, the costs associated with leaks, maintenance, and potential downtime can outweigh the initial savings.
Knife gate valves may require a higher initial investment but provide benefits in terms of reliability, performance, and reduced risk of operational interruptions. The ability to handle challenging media and maintain sealing integrity can lead to cost savings over time.
Maintenance costs include the labor and materials required for regular upkeep and repairs. Downtime associated with valve failures or maintenance can significantly impact productivity and profitability. Selecting a valve that aligns with the operational demands and maintenance capabilities of the facility is crucial.
Investing in higher-quality valves like those offered by Kasin Valves can reduce maintenance frequency and mitigate the risks of unplanned downtime. The availability of support services and spare parts also contributes to effective maintenance and cost management.
The distinction between slide gate valves and knife gate valves is substantial, encompassing design, functionality, materials, and application suitability. Slide gate valves offer simplicity and cost-effectiveness for handling dry bulk materials in gravity-fed systems. Their limitations in sealing and handling challenging media confine them to specific applications where these factors are acceptable.
Knife gate valves provide versatility and reliability in demanding environments. Their ability to cut through media containing solids, maintain a tight seal, and integrate with automated control systems makes them indispensable in industries like pulp and paper, wastewater treatment, and chemical processing. The investment in knife gate valves often results in long-term benefits through reduced maintenance costs, improved safety, and enhanced operational efficiency.
Making an informed decision between a slide gate valve and a knife gate valve requires a comprehensive analysis of the application's demands, operational conditions, and economic considerations. Consulting with industry experts and manufacturers like Kasin Valves can provide valuable guidance and access to customized solutions that meet specific needs.
In conclusion, understanding the differences between these two valve types empowers professionals to optimize their systems, enhance performance, and ensure compliance with environmental and safety standards. The right choice of valve not only contributes to the success of the operations but also reflects a commitment to quality, efficiency, and responsibility.
The primary differences lie in their design, functionality, and applications. Slide gate valves have a flat gate that slides across the flow path, suitable for on/off control in dry bulk material handling. Knife gate valves feature a sharp-edged gate that can cut through media containing solids, offering reliable sealing and operation in challenging conditions. Their design differences make them suitable for different applications and media types.
Consider factors such as the type of media (dry solids, fluids, slurries), operating conditions (pressure, temperature), sealing requirements, maintenance capabilities, and environmental regulations. Slide gate valves are suitable for dry bulk materials where tight sealing is not critical. Knife gate valves are preferable for handling fluids with solids, requiring reliable sealing and cutting capabilities. Consulting with manufacturers like Kasin Valves can provide personalized guidance.
While knife gate valves can modulate flow to some extent, they are not typically designed for precise throttling applications. Prolonged operation in a partially open position can lead to increased wear and may not provide accurate flow control. For precise throttling, other valve types like globe valves or control valves might be more suitable. However, knife gate valves offer adequate flow regulation in systems where precise control is not critical.
Regular inspection of the gate, seals, and packing is essential. Cleaning the valve to remove build-up, especially in abrasive or sticky media, helps maintain smooth operation. Adjusting or replacing seals and packings as needed prevents leakage. Lubricating moving parts and verifying the functionality of actuators contribute to extending the valve's service life. Following the manufacturer's maintenance guidelines and scheduling preventive maintenance can significantly enhance reliability.
Yes, various industry standards and regulations govern valve design, manufacturing, and application. Standards from organizations like the American Society of Mechanical Engineers (ASME), the American Petroleum Institute (API), and the International Organization for Standardization (ISO) provide guidelines on material selection, pressure ratings, testing, and quality control. Compliance with these standards ensures that valves meet safety, performance, and quality requirements.
Environmental regulations may dictate requirements for leak prevention, material compatibility, and emissions control. Selecting valves with superior sealing capabilities, like knife gate valves, helps prevent environmental contamination and supports compliance with regulations. Material selection must consider corrosive media and environmental factors to prevent failures that could lead to leaks or spills. Adhering to environmental regulations is essential for legal compliance, safety, and corporate responsibility.
Automation can significantly enhance the performance and functionality of knife gate valves. Utilizing pneumatic, electric, or hydraulic actuators allows for remote operation, precise control, and integration with process automation systems. Features like position feedback and variable speed operation improve responsiveness and efficiency. Automation enhances safety by reducing the need for manual intervention in hazardous environments and contributes to overall operational excellence.
