Views: 0 Author: Site Editor Publish Time: 2025-05-17 Origin: Site
In the realm of fluid control systems, the selection of appropriate valves is pivotal for ensuring efficiency, safety, and reliability. Among the myriad of valve types available, gate valves and butterfly valves stand out due to their widespread application in various industries. This article delves into the reasons why one might opt for a gate valve, particularly a knife gate valve, over a butterfly valve. By examining their structural differences, operational mechanisms, and suitability for different conditions, we aim to provide a comprehensive understanding that aids in informed decision-making.
Understanding the fundamental structural differences between gate valves and butterfly valves is essential. Gate valves, including knife gate valves, operate by lifting a gate out of the path of the fluid. This gate, often a flat or wedge-shaped disc, moves vertically to allow or restrict flow. In contrast, butterfly valves use a rotating disc to regulate flow, which pivots on a central axis perpendicular to the direction of the flow.
Gate valves are known for their robust construction, which allows them to handle high-pressure and high-temperature applications. The design minimizes pressure drop across the valve when fully open, making them suitable for full-flow applications. Knife gate valves, a subset of gate valves, feature a sharp-edged gate that can cut through viscous fluids, slurries, and solids.
Butterfly valves are more compact and lighter due to their simple design. The rotating disc can be swiftly actuated, making them suitable for quick shut-off applications. However, the presence of the disc in the flow path even when fully open can cause a pressure drop and turbulence.
Gate valves operate through linear motion. The gate moves up or down, controlled by a threaded stem connected to an actuator like a handwheel or an electric motor. This design allows for precise control but typically results in slower operation compared to quarter-turn valves.
Butterfly valves are quarter-turn valves. A 90-degree rotation of the actuator opens or closes the valve. This mechanism allows for rapid operation but offers less precise flow control compared to gate valves. The simplicity of this mechanism also leads to lower maintenance requirements.
Gate valves offer several advantages that make them preferable in certain applications over butterfly valves. These advantages stem from their design and operational characteristics.
When fully open, gate valves provide an unobstructed path for the fluid, resulting in minimal pressure drop. This characteristic is crucial in pipelines where maintaining pressure is essential for the system's efficiency. The straight-through flow design reduces energy consumption as pumps do not have to work against additional resistance.
Gate valves are designed to function effectively in both directions. This bidirectional capability provides flexibility in piping systems where the flow direction may change or is not fixed. It ensures that the valve provides a tight seal regardless of flow direction.
While not ideal for throttling, gate valves excel in fully open or fully closed positions. They provide a tight seal, which is essential for isolating sections of a pipeline or equipment during maintenance. The sealing surfaces of gate valves are less likely to erode when the valve is fully open, prolonging their service life.

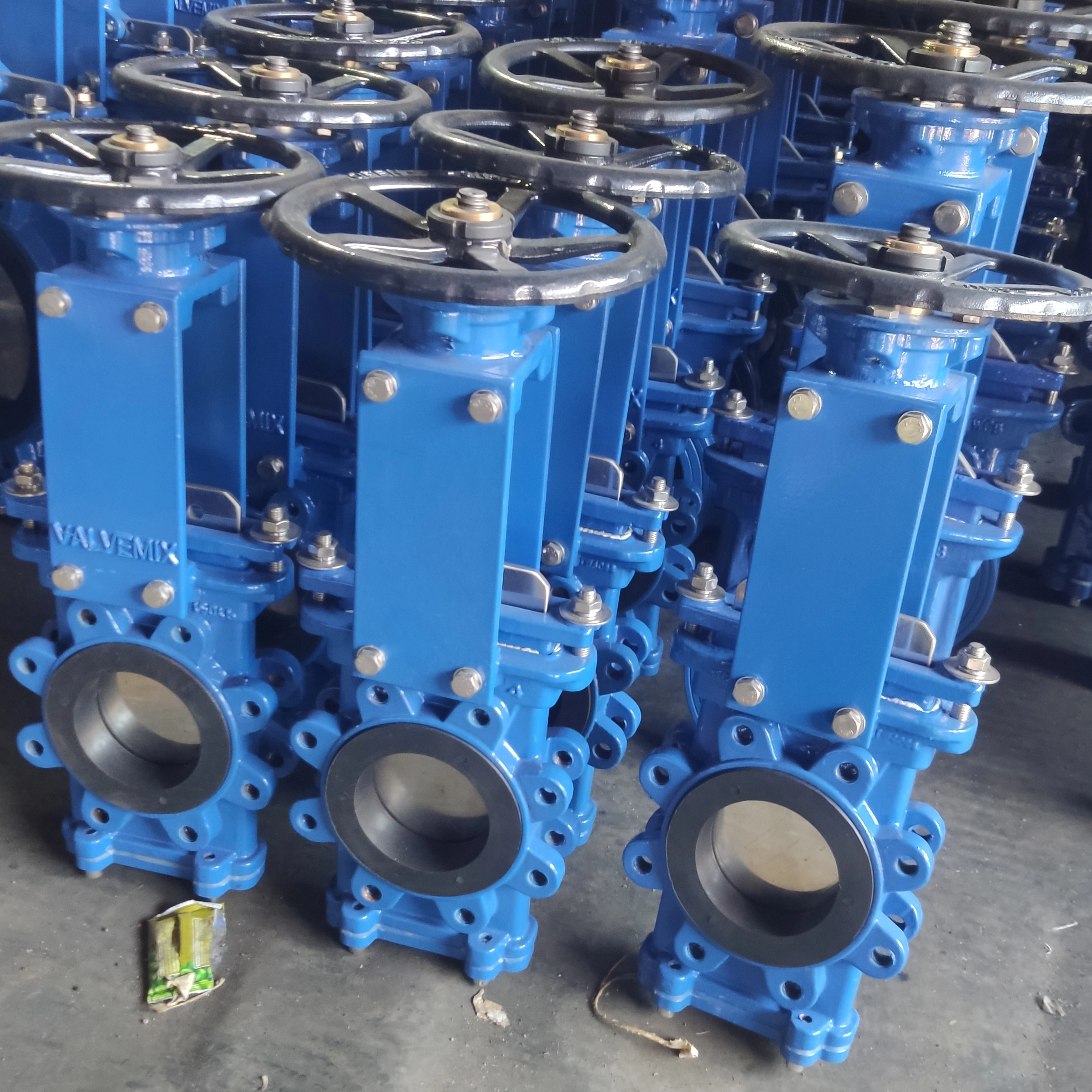

Knife gate valves are a specialized type of gate valve designed to handle challenging media. Their unique features make them suitable for industries dealing with viscous fluids, slurries, and solids.
The sharp edge of the knife gate slices through thick fluids and solids, preventing clogging and ensuring a reliable seal. Industries such as wastewater treatment, pulp and paper, and mining often prefer knife gate valves for their ability to handle sludge, slurry, and fibrous materials effectively.
Knife gate valves have a slim profile compared to traditional gate valves. This compact design saves space and reduces the weight of the valve assembly. It's particularly advantageous in large-diameter pipelines where valve weight can be a concern.
Due to their simpler construction and the ability to use less material without compromising performance, knife gate valves are often more cost-effective. They offer a balance between performance and cost, making them an attractive option for large-scale applications.
While butterfly valves have their own set of advantages, they also come with limitations that might make gate valves a better choice in certain scenarios.
The presence of the disc in the flow path, even when fully open, can cause a significant obstruction. This obstruction leads to a pressure drop and can induce turbulence in the fluid flow. In systems where maintaining a smooth flow with minimal pressure loss is critical, this can be a disadvantage.
Butterfly valves may experience sealing issues under high-pressure conditions. The disc relies on a tight fit against the valve seat, and under high pressure, it can be challenging to maintain this seal without deforming the components. Gate valves, on the other hand, can handle higher pressures more effectively due to their design.
While butterfly valves can be used for throttling, they are not as precise as other valve types like globe valves. The flow characteristics can make it difficult to control flow rates accurately, which is vital in some industrial processes.
Gate valves are preferred in various applications due to their ability to handle demanding conditions. Understanding these applications helps in selecting the right valve for specific needs.
In the oil and gas sector, the need for valves that can handle high pressures and temperatures is paramount. Gate valves are commonly used in upstream and downstream operations for isolating equipment and controlling the flow of crude oil, natural gas, and refined products. The ability to provide a tight seal and withstand harsh operating conditions makes them indispensable in this industry.
Knife gate valves are particularly suited for mining operations where slurries containing solids are common. The sharp gate design cuts through abrasive materials without compromising the valve's integrity. This durability reduces downtime and maintenance costs, enhancing operational efficiency.
In wastewater treatment facilities, handling fluids with suspended solids and fibrous materials is routine. Knife gate valves provide reliable performance by preventing clogging and ensuring a consistent seal. Their ease of operation and maintenance further contributes to their suitability in these environments.
Selecting the appropriate valve involves evaluating various factors to ensure compatibility with the application's requirements. These considerations help in choosing between a gate valve and a butterfly valve.
The nature of the fluid or gas being controlled is a primary consideration. For clean fluids, butterfly valves might suffice. However, for media containing solids, high viscosity, or abrasive particles, gate valves, especially knife gate valves, are more suitable. Their design prevents clogging and excessive wear.
High-pressure and high-temperature conditions are better handled by gate valves. Their robust construction withstands these conditions without compromising performance. Butterfly valves may have limitations in such environments due to potential deformation and sealing issues.
In situations where space is limited, butterfly valves offer an advantage due to their compact design. However, knife gate valves also provide a space-saving alternative to traditional gate valves without sacrificing the benefits of gate valve design.
Advancements in valve technology have enhanced the performance and applicability of gate valves. Innovations aim to address previous limitations and meet evolving industry demands.
The development of new materials, such as advanced alloys and composites, has improved gate valves' durability and resistance to corrosion and abrasion. These materials extend valve life and reduce maintenance requirements, especially in harsh operating conditions.
Modern gate valves incorporate improved sealing mechanisms, such as resilient seats and precision-machined gates, to provide better leak-tight performance. These enhancements are crucial for applications where even minor leakage is unacceptable.
Integration with automation systems allows for remote operation and monitoring of gate valves. Electric and pneumatic actuators enable precise control over valve position, facilitating efficient process management and safety enhancements.
Real-world examples illustrate the practical benefits of choosing gate valves over butterfly valves in specific scenarios.
A pulp processing plant faced frequent valve failures due to the abrasive nature of the pulp slurry. Switching to knife gate valves dramatically reduced downtime and maintenance costs. The sharp gates effectively cut through fibrous materials, ensuring reliable operation and extending valve life.
An oil refinery required valves that could handle high-temperature crude oil with solid impurities. Gate valves provided the necessary durability and tight sealing, preventing leaks and maintaining system integrity. The ability to operate under high pressure was crucial for the refinery's safety standards.
A city upgraded its wastewater treatment plant and opted for knife gate valves in its sludge handling systems. These valves effectively managed thick sludge without clogging, improving the facility's efficiency and reducing maintenance interventions.
The total cost of ownership for valves includes not only the initial purchase price but also ongoing maintenance and the expected service life.
Gate valves, constructed with robust materials, often outlast butterfly valves in demanding environments. Their ability to withstand abrasion and corrosion reduces the frequency of replacements and maintenance, leading to long-term cost savings.
While gate valves may require more time to actuate, their straightforward design simplifies maintenance procedures. Components are accessible and can be serviced or replaced with minimal disruption. In industries where downtime is costly, this accessibility is a significant advantage.
A tight seal is essential not only for operational efficiency but also for safety. Gate valves provide superior sealing capabilities, reducing the risk of leaks that could lead to hazardous situations or environmental contamination.
The choice between a gate valve and a butterfly valve hinges on various factors, including the nature of the media, operating conditions, and specific application requirements. Gate valves, and more specifically knife gate valves, offer distinct advantages in handling challenging fluids, providing reliable sealing, and enduring harsh conditions. Their robust design and operational characteristics make them the preferred choice in industries where performance and reliability are paramount. By carefully evaluating the needs of the system and understanding the strengths of each valve type, engineers and decision-makers can select the most suitable valve, ensuring efficiency, safety, and longevity in their operations.
1. What makes a knife gate valve suitable for slurry applications?
The sharp edge of a knife gate valve allows it to cut through thick slurries and viscous fluids containing solids. This design minimizes clogging and ensures reliable operation in industries like mining and wastewater treatment.
2. How does a gate valve provide a better seal compared to a butterfly valve?
Gate valves offer a tight seal by lowering a solid gate into the valve seat, which completely blocks the flow path. This mechanism is highly effective for isolation purposes and prevents leakage even under high-pressure conditions.
3. Are gate valves suitable for throttling applications?
Gate valves are generally not recommended for throttling because they are designed for fully open or fully closed positions. Partially open gate valves can suffer damage due to vibration and erosion from the fluid flow.
4. Why might a butterfly valve be less effective in high-pressure systems?
Butterfly valves may experience sealing and deformation issues under high-pressure conditions. The disc and sealing components might not withstand the pressure as effectively as the robust structure of a gate valve.
5. What advancements have been made in gate valve technology?
Recent advancements include the use of new materials for enhanced durability, improved sealing technologies for better leak prevention, and the integration of automation for precise control and monitoring.
6. How do material innovations in gate valves benefit industrial applications?
Innovations in materials, like advanced alloys, enhance resistance to corrosion and wear, extending the valve's lifespan. This durability is crucial in harsh environments, reducing maintenance costs and downtime.
7. Where can I find high-quality knife gate valves for industrial use?
Reputable manufacturers like Kasin Valves specialize in producing knife gate valves designed for various industrial applications, offering products known for their quality and reliability.
