Views: 0 Author: Site Editor Publish Time: 2025-08-25 Origin: Site
Ever wondered why some valves are better suited for certain applications? Valves control fluid flow in pipelines, ensuring efficiency and safety. Choosing the right valve, like a globe valve, is crucial for optimal performance. In this post, you'll learn why globe valves might be preferable to ball valves, exploring their features and benefits.

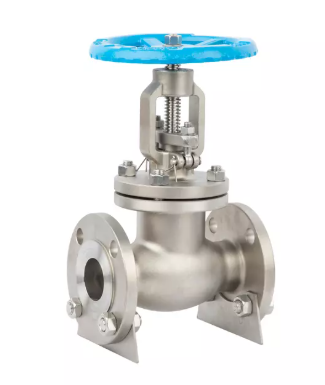

Definition and Structure of Globe ValvesA globe valve is a type of valve used to regulate flow in a pipeline. It has a spherical body shape, which is where the name "globe" comes from. Inside, it features a movable disk or plug and a stationary ring seat. The disk moves perpendicular to the seat to start, stop, or throttle flow. This design allows precise control over the flow rate. The valve body usually has an inlet and outlet at right angles, making the flow path somewhat S-shaped.
How Globe Valves OperateWhen the valve is open, the disk lifts from the seat, allowing fluid to pass through. Closing the valve presses the disk firmly against the seat, stopping flow. The disk moves up and down by turning a handwheel or actuator. The position of the disk controls how much fluid flows, so you can adjust it to partially open or fully closed. This makes globe valves ideal for throttling applications where flow control is critical.
Advantages of Using Globe Valves
Precise Flow Control: Globe valves excel at regulating flow because of their design, which allows fine adjustments.
Good Shutoff Capability: They provide a tight seal when closed, minimizing leaks.
Durability: Their construction suits high-pressure and high-temperature environments.
Versatile Use: They work well in both on/off and throttling roles.
Easy Maintenance: The internal parts are accessible for repair or replacement without removing the entire valve from the pipeline.
Globe valves tend to create more pressure drop than some other valve types because of the flow path’s shape. However, this trade-off is acceptable when precise flow control is needed.
Definition and Structure of Ball ValvesA ball valve is a type of quarter-turn valve that uses a hollow, perforated, and pivoting ball to control flow. The ball has a hole through its center, which aligns with the pipeline when the valve is open, allowing fluid to pass freely. When the ball is rotated 90 degrees by a handle or actuator, the hole becomes perpendicular to the flow path, blocking the flow completely. The valve body is generally spherical or cylindrical, and the ball is supported by seats made of soft materials like PTFE, which ensure a tight seal.
How Ball Valves OperateBall valves operate by rotating the ball inside the valve body. A simple 90-degree turn opens or closes the valve quickly. When open, the hole in the ball lines up with the pipeline, allowing unrestricted flow. When closed, the solid part of the ball blocks the pipeline, stopping flow entirely. This quick action makes ball valves excellent for on/off control. They do not offer fine control over flow rate because the flow path is either fully open or fully closed.
Advantages of Using Ball Valves
Quick Operation: A simple quarter turn fully opens or closes the valve, enabling fast response.
Tight Sealing: The ball and seat provide a strong seal, minimizing leaks even after long periods of disuse.
Low Pressure Drop: When open, the straight-through flow path causes very little pressure loss.
Durability: Ball valves are robust and handle high pressure and temperature well.
Compact Design: Their relatively small size makes them easy to install in tight spaces.
Low Maintenance: Few moving parts reduce wear, and the valve body protects internal components.
Ball valves are ideal for applications needing rapid shutoff or full flow, but they are not suited for throttling because partial opening can cause seat damage and poor flow control.
Design DifferencesGlobe valves have a more complex internal design. Their flow path follows an S-shaped route, causing the fluid to change direction as it passes through. This design uses a movable disk that presses against a stationary seat to control flow. The mechanism allows for precise flow regulation but results in a larger valve body and more internal parts.Ball valves, on the other hand, feature a simple design with a hollow ball inside a cylindrical or spherical body. The ball rotates 90 degrees to open or close the valve, creating a straight, unobstructed flow path when fully open. This simplicity makes ball valves compact and easy to operate.
Performance DifferencesGlobe valves excel at throttling and fine flow control. Their design lets you adjust flow gradually, making them perfect for applications needing precise regulation. However, their S-shaped flow path causes a higher pressure drop compared to ball valves. This means the fluid loses more energy passing through, which might not suit systems where pressure conservation is critical.Ball valves provide quick, reliable shutoff and very low pressure drop when open. Since the flow path is straight, fluid moves through with minimal resistance. However, ball valves are not suited for throttling. Partially opening a ball valve can damage the seats and cause poor flow control. So, they’re best for on/off applications where flow is either fully open or fully closed.
Cost ConsiderationsGenerally, ball valves are more cost-effective due to their simpler design and fewer parts. Their compact size also reduces installation space and related costs. Maintenance tends to be lower because of fewer moving components and easier access.Globe valves may cost more upfront and require more maintenance due to their complex internal parts. Still, their ability to control flow precisely can save money in processes where accurate regulation prevents waste or damage. The choice often depends on balancing initial costs against long-term operational needs.
Tip: Choose globe valves when precise flow control matters most, but pick ball valves for fast shutoff and minimal pressure loss.
Globe valves find their place in many industries where precise flow control matters most. Their design allows them to regulate flow smoothly and shut off tightly, making them ideal for critical applications.
Common Industries Using Globe Valves
Power Generation: They control steam flow in turbines and boilers, where precise throttling helps maintain efficiency and safety.
Oil and Gas: Globe valves manage flow in pipelines and refineries, especially where pressure and temperature vary.
Chemical Processing: They regulate corrosive or hazardous fluids, requiring reliable sealing and flow control.
Water Treatment: Globe valves adjust flow rates in filtration and distribution systems.
Pharmaceuticals and Food Processing: These industries benefit from globe valves’ precise control to maintain process consistency and hygiene.
Specific Applications and Benefits
Throttling Service: Globe valves excel in applications where flow must be adjusted gradually, such as mixing, dosing, or pressure regulation.
High Pressure and Temperature Conditions: Their robust construction withstands demanding environments better than many valve types.
Frequent Operation: Globe valves tolerate repeated opening and closing without losing sealing performance.
Corrosive or Abrasive Fluids: Materials used in globe valves can be chosen to resist specific chemicals, protecting the valve and system.
Why Globe Valves Are Preferred in Certain ScenariosGlobe valves are the go-to choice when accuracy in flow rate is crucial. For example, in steam systems, controlling pressure and temperature precisely prevents damage and improves efficiency. Their ability to throttle smoothly helps avoid water hammer and other flow disturbances. In chemical plants, the tight shutoff prevents leaks of dangerous substances. Also, their ease of maintenance reduces downtime, which is vital in continuous process industries.
Though they cause more pressure drop than ball valves, the trade-off pays off where flow control quality impacts safety, product quality, or energy use.
Ball valves are widely used across many industries due to their quick operation, tight sealing, and low pressure drop. Their simple design suits applications needing fast, reliable shutoff rather than fine flow control.
Common Industries Using Ball Valves
Oil and Gas: Ball valves control flow in pipelines, storage tanks, and processing units, where rapid shutoff is critical for safety.
Water and Wastewater Treatment: Their durability and low maintenance make them ideal for controlling water flow and isolating sections of piping.
Chemical Processing: Ball valves handle aggressive chemicals, offering secure sealing to prevent leaks.
Pharmaceuticals and Food Processing: Their hygienic design variants allow easy cleaning and prevent contamination.
HVAC Systems: Ball valves regulate heating, cooling, and ventilation flows efficiently.
Manufacturing and Industrial Plants: They isolate equipment and control fluid transfer quickly during operations or emergencies.
Specific Applications and Benefits
Emergency Shutoff: Ball valves provide instant flow stoppage, essential in safety-critical systems.
On/Off Service: Their quarter-turn operation makes them perfect for applications requiring full open or full close states.
Low Pressure Loss Needs: When flow must pass with minimal resistance, ball valves are the preferred choice.
Space-Constrained Installations: Their compact size fits tight spaces where larger valves won’t.
Systems with Infrequent Operation: Ball valves maintain sealing integrity even after long idle periods.
Why Ball Valves Are Preferred in Certain ScenariosBall valves shine where speed and reliability matter most. For example, in oil pipelines, fast shutoff can prevent spills and explosions. Their low pressure drop helps maintain system efficiency, especially in large-diameter pipes. In water systems, their simple design reduces maintenance costs and downtime. In food and pharma, sanitary ball valves ensure product purity with easy cleaning.
However, ball valves are not suited for throttling. Partially opening a ball valve risks damaging the seats and provides poor flow control. So, they are best for applications where flow is either fully on or off.
When deciding between globe valves and ball valves, several factors come into play. Understanding these will help you pick the right valve for your system’s needs.
Flow Control Needs: Globe valves shine when you need precise flow regulation. They let you adjust flow smoothly. Ball valves, however, are best for on/off control, not throttling.
Pressure Drop: Globe valves cause more pressure drop due to their S-shaped flow path. Ball valves offer minimal pressure loss because the flow path is straight when open.
Operation Speed: Ball valves open and close quickly with a simple quarter turn. Globe valves require multiple turns, so they operate slower.
Space Constraints: Ball valves are compact, fitting tight spaces easily. Globe valves tend to be bulkier because of their design.
Cost and Maintenance: Ball valves usually cost less upfront and need less maintenance. Globe valves may cost more and require more upkeep but offer better flow control.
Globe valves provide excellent control over flow rates, making them ideal for applications where accuracy matters. Their design helps prevent water hammer and flow surges by allowing gradual opening and closing. This feature is crucial in sensitive processes like chemical dosing or steam control.
Ball valves excel in efficiency when you need fast, reliable shutoff. Their low pressure drop means less energy loss in the system, which can boost overall efficiency. However, using ball valves for throttling can damage seats and reduce valve life, so avoid partial openings for flow control.
Globe valves are easier to maintain because their internal parts can be accessed without removing the valve from the pipeline. This reduces downtime during repairs or replacements. They also handle frequent operation well, maintaining a tight seal over time.
Ball valves have fewer moving parts, which means less wear and tear. Their seats, often made from resilient materials, provide long-lasting sealing even after long periods of inactivity. However, damage can occur if used improperly for throttling.
Choosing the right valve depends on balancing these factors based on your application’s priorities. If precise flow control and durability under frequent adjustments are key, globe valves are the better choice. For quick shutoff, minimal pressure loss, and simple maintenance, ball valves work best.
The article highlights the differences between globe and ball valves, focusing on flow control, pressure drop, and maintenance. Globe valves offer precise flow regulation, making them ideal for applications requiring accuracy, while ball valves excel in quick shutoff and minimal pressure loss. When selecting a valve, consider your system's specific needs. As valve technology evolves, innovations may enhance performance and efficiency. Wenzhou Kasin Valve Co., Ltd. provides high-quality globe valves, ensuring precise control and reliability for various industrial applications.
A: A globe valve is used for regulating flow in pipelines, offering precise flow control and reliable shutoff, ideal for throttling applications.
A: Choose a globe valve over a ball valve for precise flow regulation. Globe valves excel in applications needing gradual flow adjustments and tight shutoff.
A: A globe valve operates by moving a disk perpendicular to the flow, allowing precise control over the flow rate, suitable for throttling.
A: Globe valves can be more expensive due to their complex design, but they offer precise flow control, which can save costs in certain applications.
A: Benefits of using a globe valve include precise flow control, good shutoff capability, durability, versatility, and easy maintenance.
