304 Stainless Steel Construction – Offers excellent corrosion resistance, durability, and longevity in demanding environments.
Single Pin Hinge Design – Enables fast assembly and disassembly without complex tools, reducing downtime.
Solid Wing Nut with Serrated Grip – Allows for tool-free manual tightening with superior grip, even in slick or washdown conditions.
Wide Size Range – Available from 1/2" to 12" to accommodate various piping system requirements.

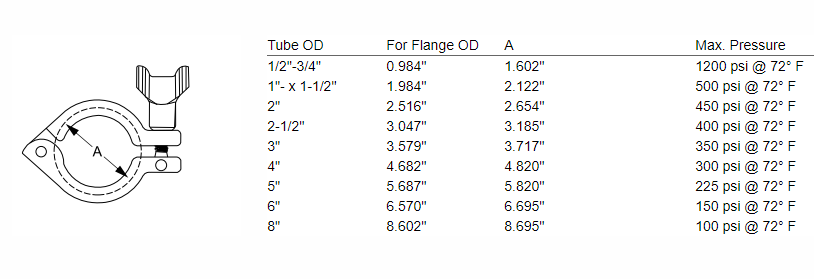

High Pressure & Temperature Ratings – Service pressure up to 350 psi @ 70°F and 175 psi @ 250°F (varies by size).
Sanitary & Hygienic Design – Smooth surface finish meets 3A sanitary standards, ideal for food, dairy, beverage, and pharmaceutical industries.
Recommended Torque: 25 in-lb – Ensures optimal sealing performance when properly tightened.

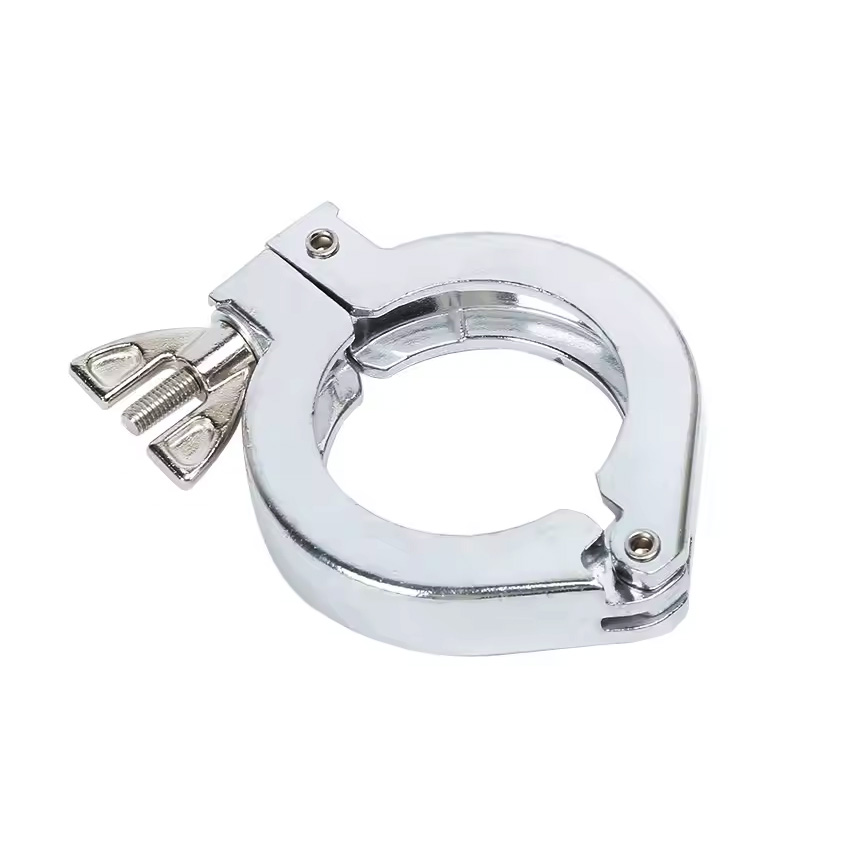

The 13MHHM Single Pin Clamp is used to join two separate tri-clamp ferrule ends together, creating a secure and leak-proof seal when combined with a matching gasket--. The single pin hinge allows the clamp to open and close around the fitting connection-. The solid wing nut is then tightened by hand to the recommended 25 in-lb torque, compressing the gasket between the ferrules to form a reliable, sanitary seal. The serrated wing nut design ensures consistent grip even in wet or oily environments.
Premium Grade 304 Stainless Steel – All clamps are manufactured from high-quality 304 SS with optional 316 SS available upon request.
Comprehensive Quality Assurance – Materials meet FDA, ISO, and 3A Certificate requirements.
Full Size Availability – Stocking all sizes from 1/2" to 12" with consistent quality across the range.
Competitive Pricing & Fast Delivery – Direct factory supply with short lead times and reliable shipping.
Expert Technical Support – Our team provides professional guidance on clamp selection, installation, and maintenance.
Customization Options – Various wing nut types and finishes available to meet specific application needs.
Q1: What materials are available for the 13MHHM clamp?
A: Standard material is 304 stainless steel. 316 stainless steel is also available for enhanced corrosion resistance in more aggressive environments.
Q2: What size range does this clamp cover?
A: The 13MHHM series covers tube OD sizes from 1/2" up to 12".
Q3: What is the recommended tightening torque?
A: The wing nut should be tightened to 25 in-lb of torque for optimal sealing performance.
Q4: What industries is this clamp suitable for?
A: Ideal for food processing, dairy, beverage, pharmaceutical, cosmetic, brewery, and biopharmaceutical industries where sanitary connections are required.
Q5: Does the clamp meet sanitary standards?
A: Yes, all materials meet FDA, ISO, and 3A Certificate requirements.
Q6: Can I get customized wing nut options?
A: Yes, we offer various wing nut types including serrated wing nut, cross-hole wing nut, and rocket wing nut to suit different application needs.
Q7: What is the maximum service pressure?
A: Pressure ratings vary by size. For example, 2" size offers 450 psi @ 70°F and 250 psi @ 250°F. Please refer to specific size specifications.
Q8: Is the clamp easy to install without special tools?
A: Yes, the serrated wing nut allows for tool-free hand tightening, making installation and removal quick and easy
