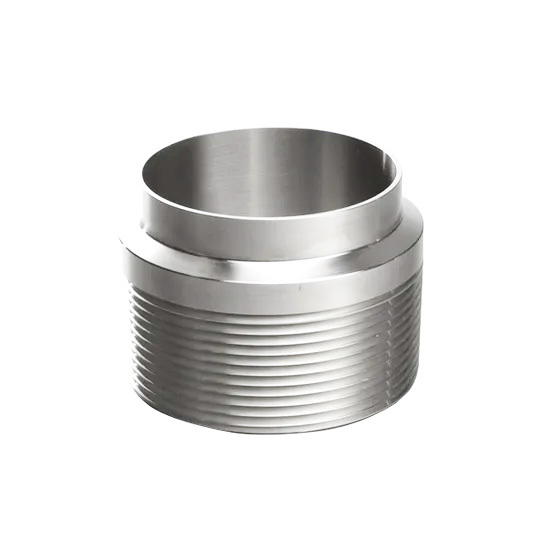

19WB Weld X Male Npt Adapter

Key Features

• Premium 304 / 316L Stainless Steel Construction – Offers outstanding resistance to corrosion, oxidation, and chemical attack. 316L provides enhanced corrosion resistance in chloride-rich environments, ideal for food, dairy, beverage, and pharmaceutical processing.

• 32Ra Mechanical Polished Finish – Both interior and exterior surfaces are precision machine-finished to 32Ra, ensuring a smooth, bacteria-resistant surface that minimizes product buildup and facilitates thorough CIP cleaning.

• Butt Weld x Male NPT Connection – The weld end provides a permanent, high-integrity joint for fixed installations, while the male NPT threaded end enables direct connection to standard female NPT threaded components.

• Tapered NPT Thread Design – NPT threads feature a tapered geometry that pulls tighter as it is threaded, creating a fluid-tight mechanical seal without the need for excessive sealant.

• Full Material Traceability – Each adapter is stamped with heat lot numbers for complete traceability. Material Test Reports and Certificates of Conformance are available upon request.

• Industry Certifications – 3-A Certified and CRN Certified, meeting the highest standards for hygienic sanitary fittings.

• Wide Size Range – Available from 1/2" to 4" tube OD to accommodate diverse system requirements.

How It Works

The 19WB Adapter functions as a transition fitting bridging two different connection methods within a piping system:

1. Weld End Connection – The butt weld end is permanently welded to the tubing of the process line, creating a continuous, seamless joint that eliminates potential leak points and provides superior mechanical strength.

2. Male NPT Threaded Connection – The male NPT end screws into standard female NPT threaded components. As it is tightened, the tapered thread geometry causes the threads to compress against each other, forming a pressure-tight mechanical seal.

3. Integrated System – Once both ends are connected, the adapter enables fluid or gas to flow seamlessly between the welded tubing section and the threaded component section, maintaining system integrity and flow efficiency.

Why Choose Our 19WB Adapter?

• Superior Material Quality – Made from 304 or 316L stainless steel. The 316L low-carbon variant offers enhanced weldability and superior corrosion resistance compared to 304.

• Hygienic Design – The 32Ra polished finish reduces bacterial adhesion and residue buildup, critical for food, dairy, beverage, and pharmaceutical applications.

• Certified Quality – 3-A Certified and CE Certified products ensure compliance with rigorous industry standards for sanitary fittings.

• Complete Traceability – Heat lot numbers stamped on each adapter. Material Test Reports (MTRs) and COCs available upon request.

• Permanent, Reliable Installation – The butt weld connection creates a permanent joint that outperforms mechanical fittings in high-vibration and high-temperature applications.

• Versatile Applications – Suitable for food processing, dairy, beverage, personal care, cosmetics, pharmaceutical, and chemical industries.

• Passivation Available – Passivation treatment can be provided upon special request for enhanced corrosion protection.

Technical Specifications

FAQ

Q1: What is the difference between 304 and 316L stainless steel for this adapter?

A: 316L stainless steel contains molybdenum, providing superior corrosion resistance compared to 304, particularly in chloride-rich environments such as food processing, dairy, and pharmaceutical applications. The "L" designation indicates low carbon content, which enhances weldability and reduces the risk of intergranular corrosion after welding.

Q2: What does "32Ra finish" mean and why is it important?

A: 32Ra refers to the surface roughness average of 32 microinches. This smooth finish is critical in sanitary applications because it minimizes bacterial adhesion, prevents product residue buildup, and facilitates thorough Clean-In-Place (CIP) cleaning.

Q3: Do I need thread sealant for the NPT connection?

A: NPT threads are designed with a tapered geometry that creates a mechanical seal as the threads are tightened-. However, for optimal leak prevention, it is recommended to use high-quality PTFE tape or PTFE paste on the male NPT threads prior to assembly.

Q4: What industries commonly use the 19WB adapter?

A: The 19WB Weld x Male NPT Adapter is widely used in food processing, dairy production, beverage manufacturing, personal care, cosmetics, pharmaceutical, and chemical processing industries.

Q5: Are Material Test Reports available?

A: Yes, Material Test Reports and Certificates of Conformance are available upon request for every 19WB adapter, providing full material certification and traceability
