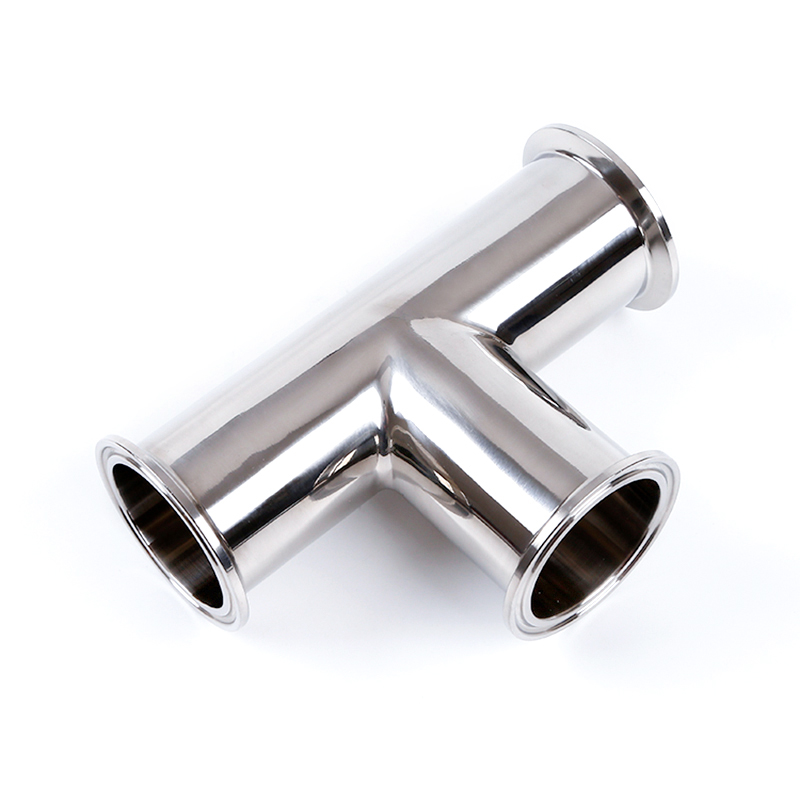

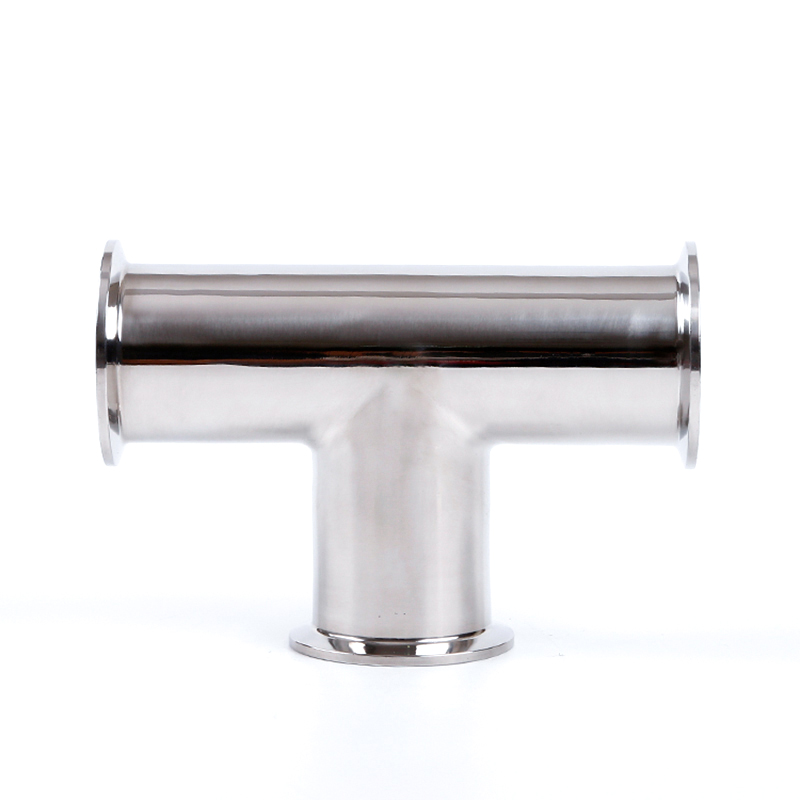

7MP Clamp Equal Tee

Key Features & Benefits

• Premium 304/316L Stainless Steel Construction – Offers outstanding resistance to corrosion, oxidation, and chemical attack, making it ideal for food, dairy, beverage, pharmaceutical, biotechnology, and cosmetic processing environments-.

• High-Grade Polished Surface Finish – Precision-polished to meet sanitary standards with a smooth, non-porous surface that minimizes product buildup, resists bacterial adhesion, and facilitates thorough CIP cleaning.

• Tri-Clamp Connections on All Three Ends – The clamp end design enables easy installation and integration into existing systems without specialized tools or welding.

• Quick Assembly & Disassembly – Clamp fittings allow for instant assembly or breakdown of sanitary line process equipment, making routine maintenance and cleaning a hassle-free task.

• Equal Tee Configuration – The equal tee design features three identical-size outlets, enabling balanced flow splitting or merging with minimal pressure drop.

• 3-A Certified & CRN Certified – Manufactured in accordance with 3-A Sanitary Standards and CRN certified, ensuring compliance with the highest industry standards for sanitary fittings.

• Full Material Traceability – Material Test Reports (MTRs) are supplied with each product, ensuring complete quality assurance and compliance.

• Wide Size Range – Available from 1/2" to 8" tube OD to accommodate diverse system requirements.

• Multiple Gasket Options – Compatible with gaskets in Buna-N, EPDM, Silicone, Teflon, and Viton materials for optimal sealing performance.

How It Works

The 7MP Clamp Equal Tee functions as a flow distribution fitting that enables fluid or gas to be split from a single line into two lines, or combined from two lines into one, within a sanitary piping system.

1. Tri-Clamp Connection – Each of the three ends features a tri-clamp ferrule with a grooved end designed to accept a clamp-. When two ferrule ends are aligned with a gasket placed between them, a clamp is secured around the joint to complete the connection.

2. Equal Flow Distribution – The equal tee geometry ensures that flow is evenly distributed between the branch line and the main line, maintaining balanced pressure and consistent flow rates across all outlets.

3. Sealing Mechanism – The gasket compressed between the ferrule ends creates a leak-proof, pressure-tight seal that prevents product contamination and maintains system integrity.

4. Quick Maintenance – When cleaning or maintenance is required, the clamp can be quickly loosened and removed, allowing the tee to be easily disassembled without disturbing the rest of the piping system.

This design is particularly valuable in hygienic sanitary applications where frequent cleaning, inspection, and component changeover are required.

Why Choose Our 7MP Clamp Equal Tee?

• Superior Material Quality – Made from 304 or 316L stainless steel, offering excellent corrosion resistance and durability for demanding sanitary applications.

• Hygienic Design – The polished surface finish meets sanitary standards, reducing bacterial adhesion and residue buildup – critical for food, dairy, beverage, and pharmaceutical applications.

• Certified Quality – 3-A Certified products ensure compliance with rigorous industry standards for sanitary fittings.

• Complete Traceability – Material Test Reports (MTRs) are supplied with every product for full quality documentation.

• Tool-Free Installation – The tri-clamp design enables quick, tool-free assembly and disassembly, reducing downtime and maintenance costs.

• Versatile Applications – Suitable for food processing, dairy, beverage, personal care, cosmetics, pharmaceutical, biotechnology, water treatment, and chemical industries.

• Broad Compatibility – The 7MP standard (Tri-Clamp standard) ensures compatibility with existing sanitary piping systems.

Technical Specifications

FAQ

Q1: What does "7MP" mean?

A: 7MP is a standard designation for Tri-Clamp sanitary fittings-. It refers to a specific series of clamp-type fittings with tri-clamp ferrules on all ends, designed for easy assembly and disassembly in sanitary piping systems.

Q2: What is the difference between 304 and 316L stainless steel for this tee?

A: 316L stainless steel contains molybdenum, which provides superior corrosion resistance compared to 304, particularly in chloride-rich environments such as food processing, dairy, and pharmaceutical applications-. The "L" designation indicates low carbon content, which enhances weldability and reduces the risk of intergranular corrosion after welding.

Q3: What industries commonly use the 7MP Clamp Equal Tee?

A: The 7MP Clamp Equal Tee is widely used in food processing, dairy production, beverage manufacturing, pharmaceutical, biotechnology, personal care, cosmetics, water treatment, and chemical processing industries.

Q4: How does the tri-clamp connection work?

A: The tri-clamp connection works by aligning two ferrule ends with a gasket placed between them, then securing a clamp around the joint-. The clamp compresses the gasket to create a leak-proof, pressure-tight seal. This design allows for quick assembly and disassembly without tools.

Q5: Are Material Test Reports available?

A: Yes, Material Test Reports are supplied with every product, providing full material certification and traceability.
