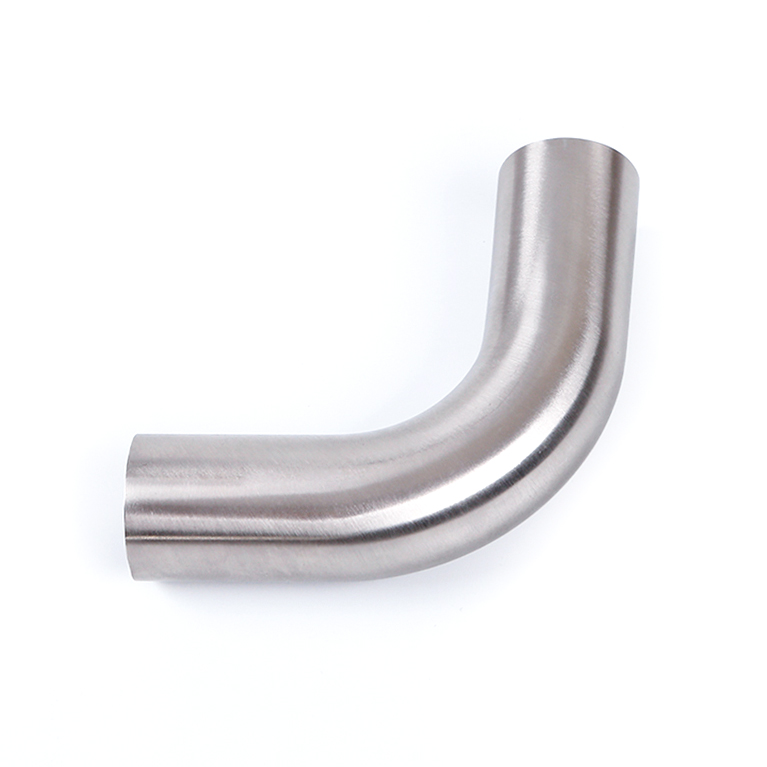

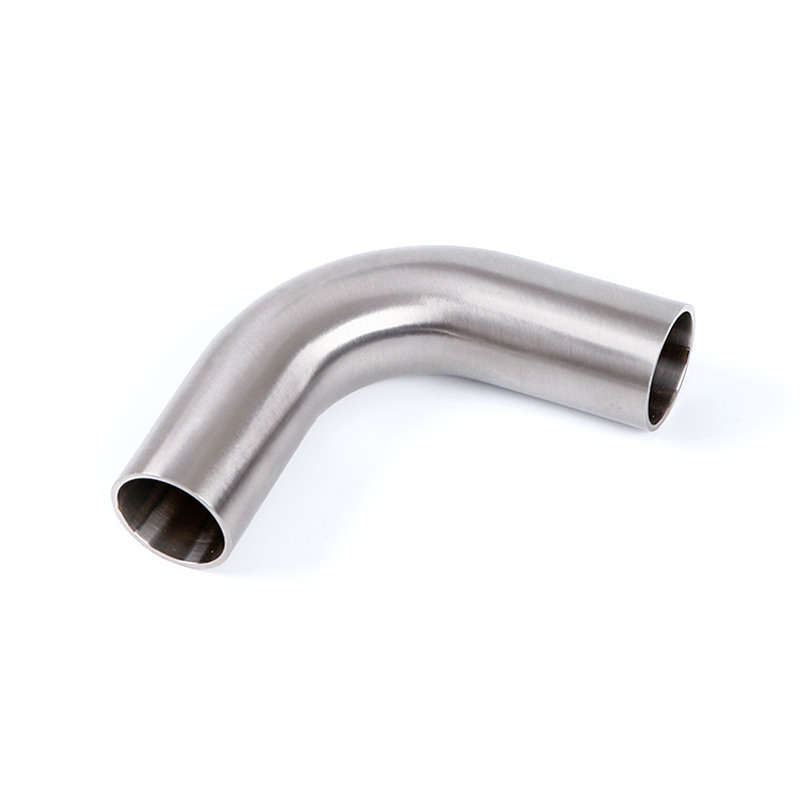

SWEEP ELBOWS 2SXL 90 DEGREE

Key Features

• Premium 316L Stainless Steel Construction – Offers outstanding resistance to corrosion, oxidation, and chemical attack, making it ideal for food, dairy, beverage, pharmaceutical, and cosmetic processing environments.

• 32Ra Mirror Polished Finish – Both interior and exterior surfaces are precision polished to 32Ra, ensuring a smooth, bacteria-resistant surface that minimizes product buildup, reduces contamination risk, and facilitates thorough CIP cleaning.

• Long Radius Sweep Design – The wide-arc bend promotes smooth fluid flow and minimizes turbulence and pressure drop, which is critical for maintaining product integrity and system efficiency.

• Butt Weld Connection – The welded ends provide a permanent, flush connection to tubing or other fittings, ensuring superior mechanical strength and eliminating potential leak points.

• Full Material Traceability – Material Test Reports (MTRs) are available upon request, ensuring complete quality assurance and compliance.

• Multiple CLR Options – Available in 12", 18", 24", 36", 48", and 60" centerline radius to accommodate diverse system requirements and space constraints.

• Standard with No Tangents – Standard configuration comes without tangents for a clean, compact design.

• Customization Available – Tangents, 45° elbows, and other radii are available upon request.

How It Works

The 2SXL Sweep Elbow 90 Degree functions as a directional change fitting that redirects fluid or gas flow within a sanitary piping system.

1. Flow Entry – Process fluid enters the elbow from the upstream piping through one butt weld end.

2. Sweep Transition – The long radius sweep design gently guides the flow through a 90-degree arc. Unlike short radius elbows, the gradual bend reduces turbulence, minimizes pressure drop, and prevents product degradation.

3. Flow Exit – The fluid exits through the opposite butt weld end, now flowing in a perpendicular direction to the original pipeline.

4. Permanent Integration – Both ends are permanently welded to the tubing, creating a continuous, seamless joint that provides superior mechanical strength and eliminates potential leak points.

This design is particularly valuable in hygienic sanitary applications where smooth flow, minimal pressure loss, and CIP compatibility are essential.

Why Choose Our 2SXL Sweep Elbow?

• Superior Material Quality – Made from 316L stainless steel, the low-carbon variant offers enhanced weldability and superior corrosion resistance for demanding sanitary applications.

• Hygienic Design – The 32Ra mirror polished finish reduces bacterial adhesion and residue buildup, critical for food, dairy, beverage, and pharmaceutical applications.

• Certified Quality – 3A Certified, CE Certified, and ISO 9001 Certified, ensuring compliance with rigorous industry standards for sanitary fittings.

• Complete Traceability – Material Test Reports (MTRs) are available upon request for full quality documentation.

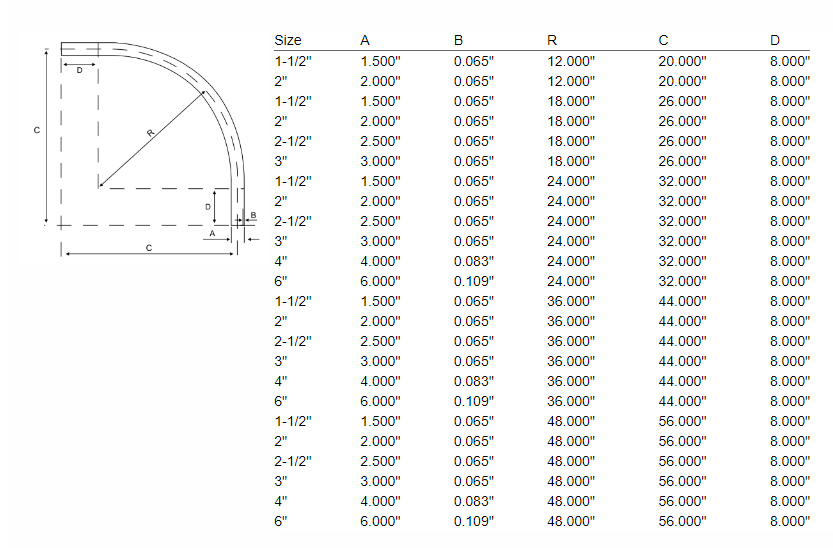

Specifications
