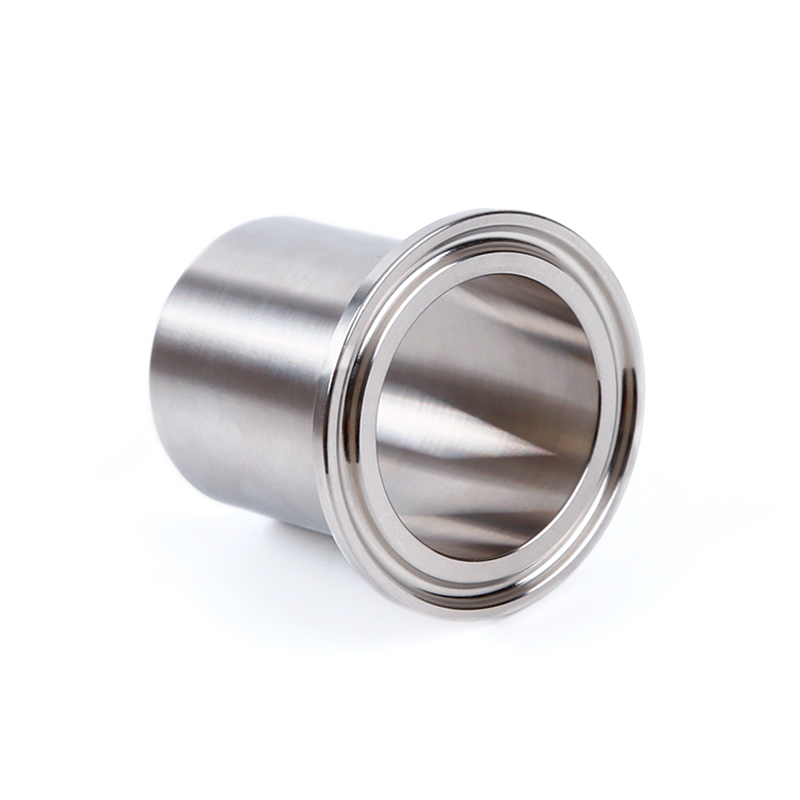

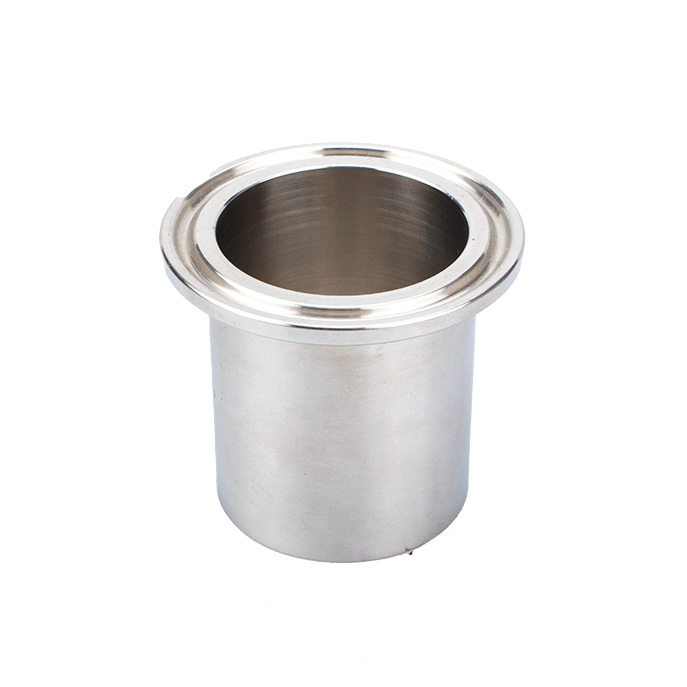

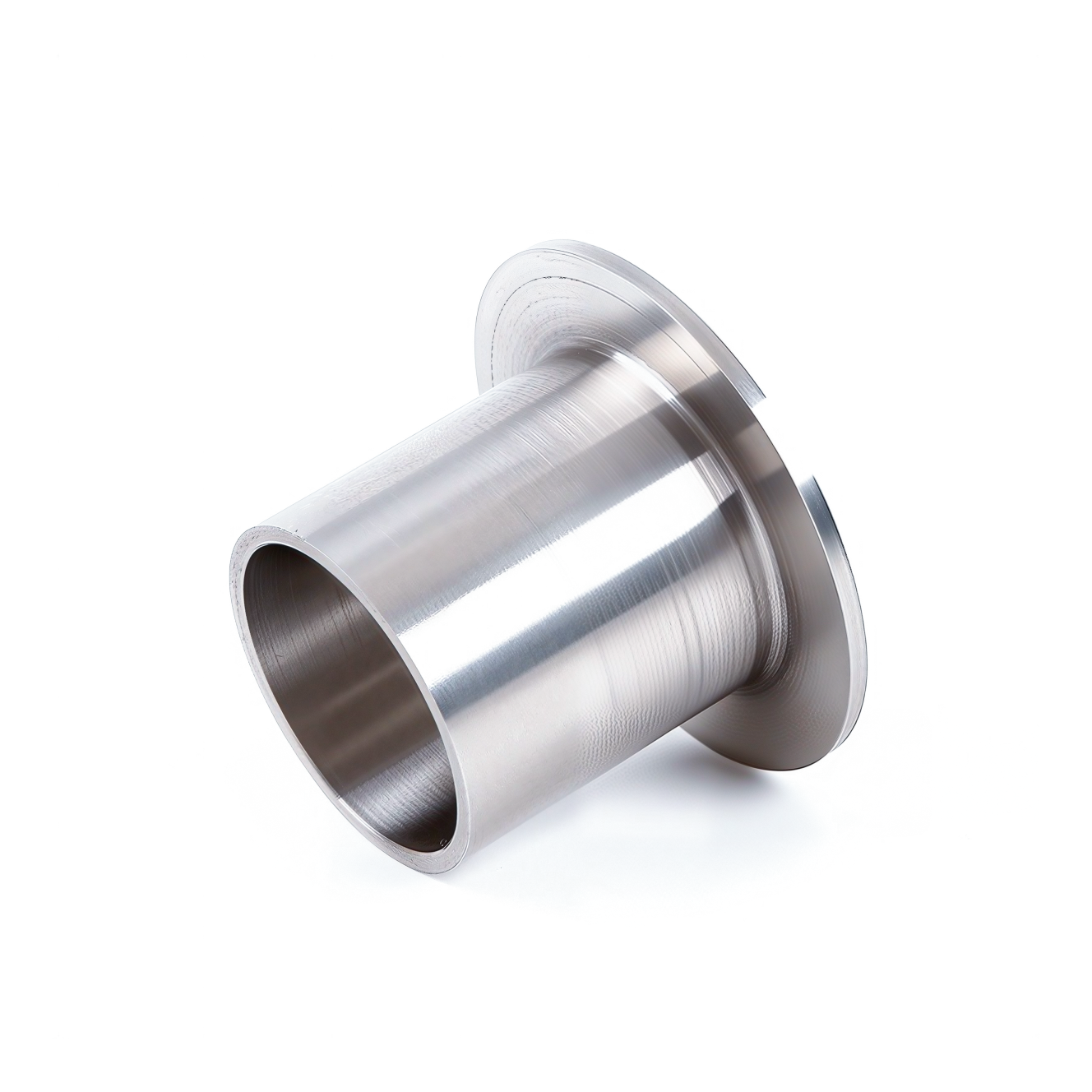

Superior Material Composition: Constructed from 316L Stainless Steel for exceptional corrosion resistance and enhanced weldability compared to 304 grade, ensuring a longer service life.
Industry Standard Compliance: Meets 3-A Sanitary Standards (No. 63-03), making it ideal for applications requiring strict hygienic design and FDA compliance.
Precision Engineering: Designed with specific heavy wall thickness to provide maximum strength and durability at the weld joint, reducing the risk of stress fractures.
Wide Dimensional Range: Available from 1/2" to 6" Tube OD (14MPW-R50 to R600), allowing for versatile integration into existing sanitary pipelines.
Permanent Weld Connection: Unlike clamp fittings that rely on gaskets, this ferrule is designed to be permanently welded directly onto the tank nozzle or pipe end.
Leak-Proof Seal Formation: Once welded, the ferrule provides a rigid, smooth surface. When mated with a complementary clamp and gasket, the ferrule's polished face compresses against the gasket to create a dynamic, leak-resistant seal that can handle pressure up to 250 PSI.
Structural Support: The heavy-duty design acts as a reinforced interface, distributing stress evenly across the weld area to prevent deformation caused by thermal expansion or vibration.
Stringent Quality Assurance: We supply ferrules made from Certified ASME Materials, guaranteeing full material traceability and compliance with global standards.
Optimized Weldability: The use of 316L stainless steel (low carbon) minimizes the risk of intergranular corrosion after welding, ensuring a clean, sanitary weld bead every time.
Complete Inventory: We stock a full range of sizes from 1/2" to 6" , ensuring zero lead time for both prototype runs and mass production maintenance needs.
Q: What is the difference between 14MPW and standard ferrule series?

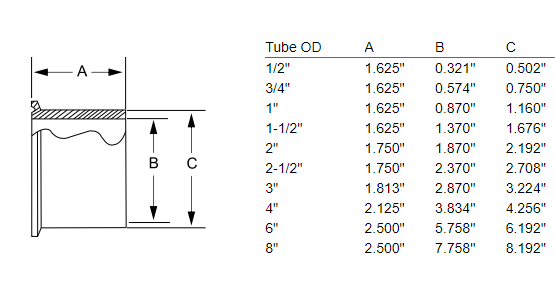

A: The 14MPW series is designated as "Heavy Duty" or "Heavy Wall" . It features a thicker cross-section (Dimension B/C) compared to standard ferrules, providing superior strength for tanks with high internal pressure or mechanical stress.
Q: Are these ferrules compatible with standard Tri-Clamp fittings?
A: Yes. The 14MPW series adheres to standard sanitary clamp fitting dimensions (OD of the ferrule bead). They are fully compatible with standard 1.5" and 2" Tri-Clamp (or similar) connections.
Q: Can I get these in sizes larger than 2 inches?
A: Yes. While standard stock often runs up to 2" (R200), this series supports up to 6 inches (R600) . Please contact sales for sizing above 2" to confirm availability.
