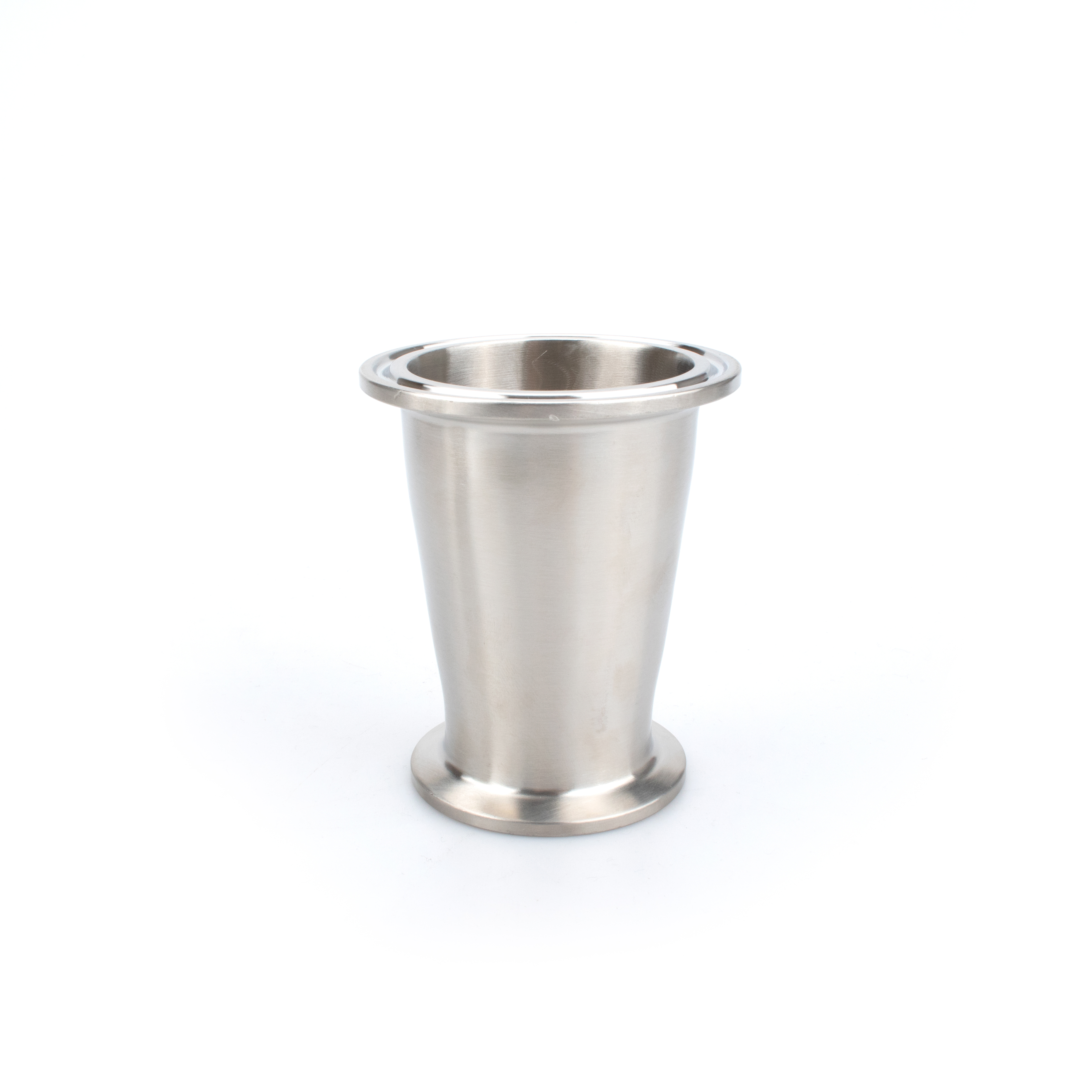

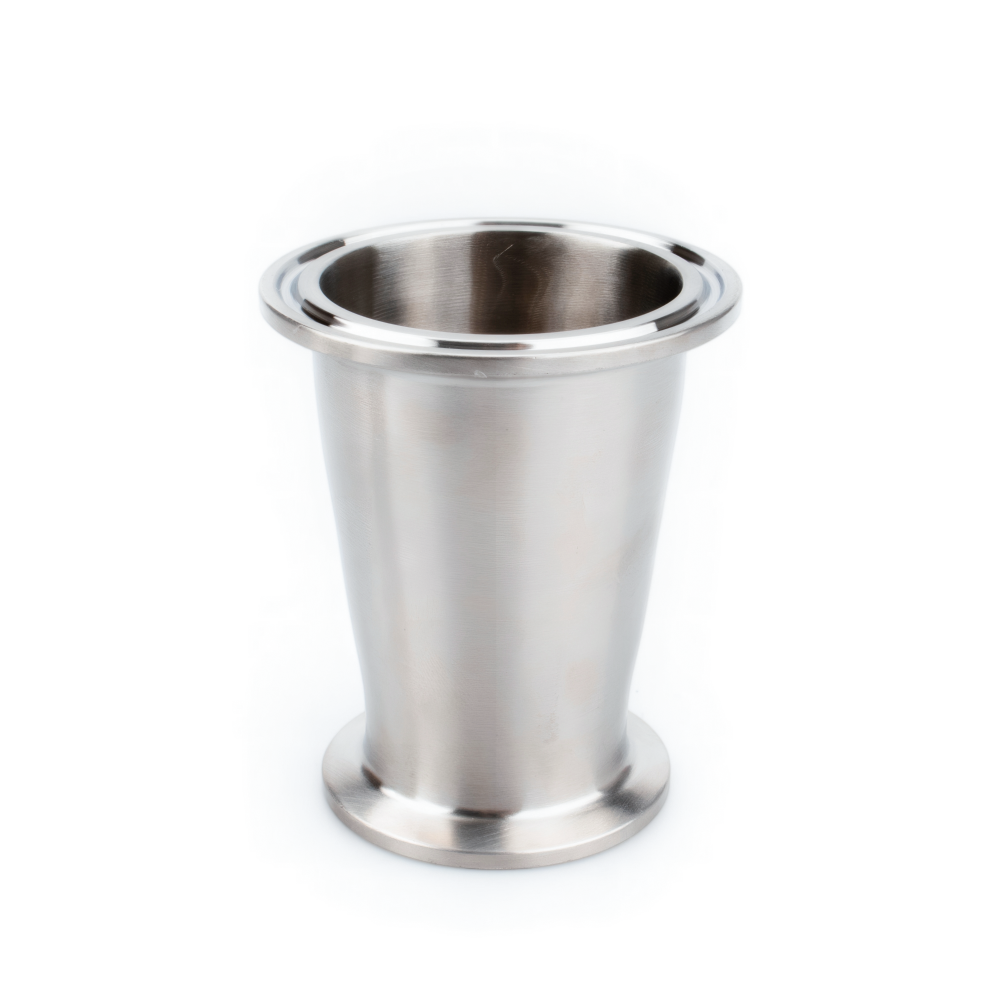

The 3114MP Clamp Concentric Reducer is a sanitary stainless steel pipe fitting designed to reduce tri-clamp connections from one tube size to another. Available in 304 and 316L stainless steel alloys， this reducer provides a smooth, crevice-free transition between different pipe diameters while maintaining optimal flow efficiency and cleanability.
| Quantity: | |
|---|---|
Concentric Design — Maintains a consistent center axis for symmetrical diameter reduction, ensuring smooth, gradual flow transition that minimizes turbulence and pressure drops
Tri-Clamp Connection — Features clamp x clamp ends. that create a leak-proof seal when combined with a gasket and clamp
Premium Material Options — Available in 304 Stainless Steel (Grade 304) and 316L Stainless Steel for enhanced corrosion resistance
Sanitary Surface Finish — 32Ra sanitary finish standard (20Ra and 15Ra available upon request) prevents bacterial adhesion and ensures easy cleaning
3-A Certified — Meets 3-A Sanitary Standards for sanitary-grade processing equipment
Wide Size Range — Available from 1/2" to 8" tube OD with various dimension configurations
Quick Assembly & Disassembly — Clamp style connections allow for rapid line processing disassembly, providing easy access to process media and cleaning solutions
Superior Corrosion Resistance — Stainless steel construction withstands moisture, chemicals, and frequent cleaning cycles
High Temperature Tolerance — Engineered to perform reliably under elevated temperature conditions
Exceptional Durability — Long-lasting performance in demanding sanitary environments
Hygienic Design — Smooth, polished surfaces effectively prevent bacteria buildup
Interchangeable — Cross-references with major brands including Bradford, Alfa Laval, Waukesha Cherry, VNE, and Top Line
The 3114MP Clamp Concentric Reducer operates on a simple yet effective principle:
Connection — Two ferrules on each end of the reducer are bonded by a gasket and secured with a clamp
Flow Transition — The concentric design reduces the pipe diameter symmetrically along a common center axis, creating a conical cylinder shape
Sealing — The clamp applies even pressure around the gasket, creating a leak-proof seal that prevents contamination and maintains process integrity
Maintenance — The clamp connection enables tool-free disassembly for routine cleaning, inspection, and CIP (Clean-in-Place) procedures
Premium Quality — All products manufactured to 3-A Sanitary Standards with full material traceability
Dual Material Options — Choose between 304 and 316L stainless steel to match your specific application requirements
Competitive Pricing — Direct sourcing ensures cost-effective solutions without compromising quality
Fast Shipping — In-stock inventory with rapid dispatch
Technical Support — Expert assistance for size selection and application guidance
Custom Finishes — Available in 32Ra, 20Ra, and 15Ra surface finishes
Comprehensive Size Range — From 1/2" to 8" to meet diverse piping needs
Q: What is the difference between 304 and 316L stainless steel?
A: 304 stainless steel offers excellent corrosion resistance for most food and beverage applications-. 316L stainless steel provides enhanced corrosion resistance — particularly against chlorides and chemicals — making it ideal for pharmaceutical, biotech, and more aggressive environments--.
Q: What industries use the 3114MP Clamp Concentric Reducer?
A: Food & beverage processing, dairy industry, pharmaceutical & biotechnology, general industrial piping, water treatment, and chemical facilities--.
Q: Is this product 3-A certified?
A: Yes. The 3114MP series meets 3-A Sanitary Standards (Number 63-03) for sanitary fittings.

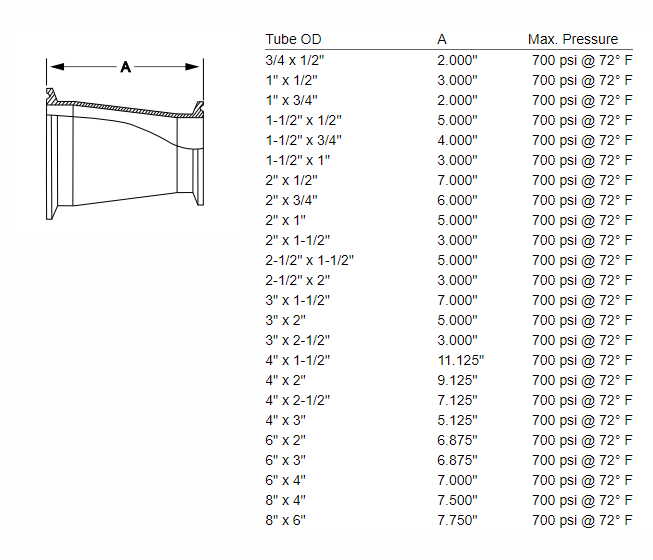

Q: What sizes are available?
A: Available from 1/2" to 8" tube OD in various configurations-1. Common sizes include 1" x 1/2", 1-1/2" x 1", 2" x 1-1/2", 3" x 2", 4" x 3", and 6" x 4".
Q: What is the surface finish?
A: Standard finish is 32Ra sanitary finish. 20Ra and 15Ra finishes are available upon request.
Q: Can this reducer be used in horizontal piping?
A: Yes. The concentric reducer is commonly used in vertical flow applications or as an increaser when installed horizontally in the direction of flow.
Q: How do I install the 3114MP reducer?
A: Simply place a sanitary gasket between the ferrule ends, align the reducer with the tubing, and secure with a tri-clamp. Tighten the clamp to create a leak-proof seal
