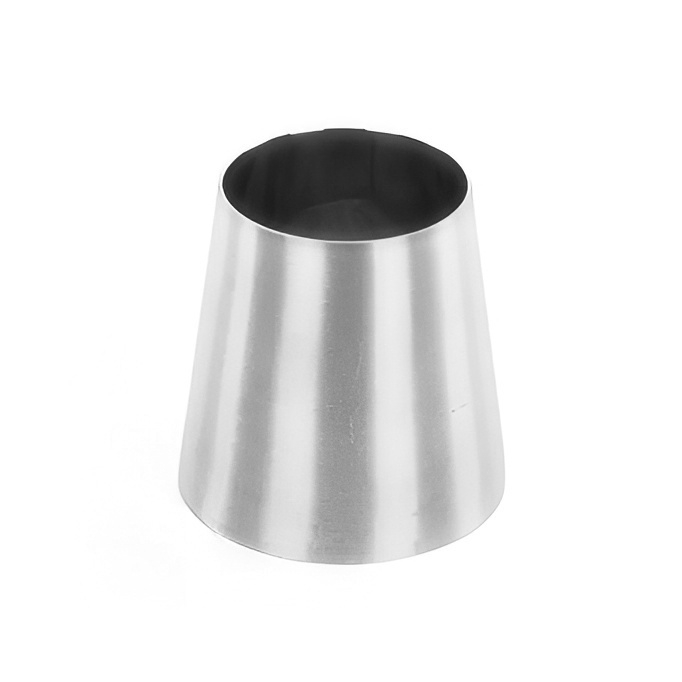

31W Concentric Reducer

Features & Advantages

• Symmetrical Flow Design: The concentric shape ensures the centerline remains straight, which eliminates turbulence and reduces pressure drop, making it ideal for vertical or single-direction flow systems.

• High-Quality Stainless Steel: Manufactured from premium ASTM A403 materials (304/316L), offering exceptional resistance to corrosion, high temperatures, and harsh chemical environments.

• Butt Weld Integration: The beveled weld ends provide a smooth, flush internal surface that prevents product entrapment and ensures structural integrity under thermal cycling.

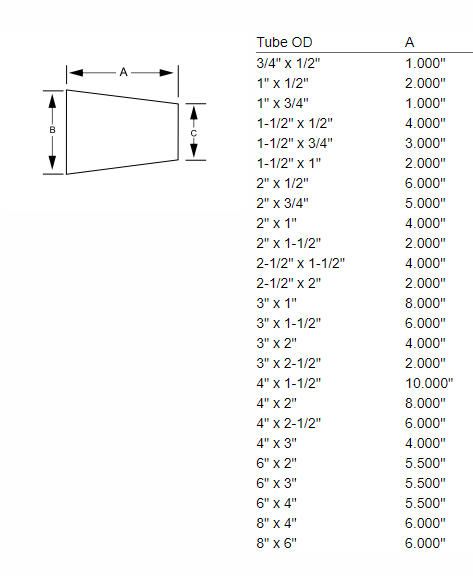

• Versatile Size Range: Available in a full spectrum of configurations (e.g., 4" x 2", 6" x 3"), allowing for seamless integration into existing metallurgy, energy, and chemical plant piping systems.

Working Principle

The 31W Concentric Reducer operates on a simple but effective principle: gradual volumetric adjustment. As fluid enters the larger bore and exits the smaller bore, the reducer maintains consistent velocity by gradually decreasing the cross-sectional area. Because the inlet and outlet are perfectly aligned on the same axis, the transition is smooth, preventing cavitation and erosion that often occur with abrupt diameter changes. This ensures efficient energy transfer within the pipeline system.

Why Choose Us?

• Strict Quality Control: We adhere to international standards including ASME B16.9 and MSS-SP-43, ensuring dimensional accuracy and material traceability.

• Ready Stock Inventory: We maintain a large stock of common 31W sizes, enabling rapid shipment and minimizing your project downtime.

• Custom Fabrication: Need a specific schedule or non-standard dimension? We offer custom fabrication to meet unique pressure and flow requirements.

• Expert Support: Our team has in-depth knowledge of piping systems for the oil & gas, food processing, and pharmaceutical industries, providing you with the right solution for your application.

FAQs

• What is the difference between concentric and eccentric reducers?
  A concentric reducer (like the 31W) keeps the pipe centerline the same, making it perfect for vertical piping. An eccentric reducer has an offset centerline, often used in horizontal piping to prevent air pockets or liquid pooling.

• What materials are available for the 31W reducer?
  The standard 31W is available in 304L and 316L Stainless Steel for superior corrosion resistance. We also offer alloy and carbon steel variants upon request for specialized applications.

• Can I use a 31W reducer for sanitary applications?
  Yes. When welded properly, the smooth internal bore prevents bacterial growth, making it suitable for sanitary food, dairy, and pharmaceutical pipelines
