Premium 304/316L Stainless Steel Construction – Offers outstanding resistance to corrosion, oxidation, and chemical attack, making it ideal for food, dairy, beverage, pharmaceutical, and cosmetic processing environments.
32Ra Polished Surface Finish – Both interior and exterior surfaces are precision polished to achieve a smooth, bacteria-resistant finish that minimizes product buildup, reduces fluid resistance, and facilitates thorough CIP cleaning.
Tri-Clamp / Quick-Clamp Connection – The clamp ends enable tool-free assembly and disassembly, allowing for rapid installation, maintenance, and cleaning of sanitary line process equipment.
Reducing Tee Configuration – The reducing design accommodates different pipe diameters on the branch line, enabling efficient flow transition and size changes while maintaining system integrity.
Crevice-Free Flow Path – Engineered to provide a smooth, crevice-free flow path that prevents product entrapment and bacterial growth, ensuring hygienic performance.
Full Material Traceability – Material Test Reports (MTRs) are available upon request, ensuring complete quality assurance and compliance.
Industry Certifications – 3-A Certified , meeting the highest standards for sanitary fittings.
Wide Size Range – Available in numerous size combinations from 1/2" to 6" to accommodate diverse system requirements.

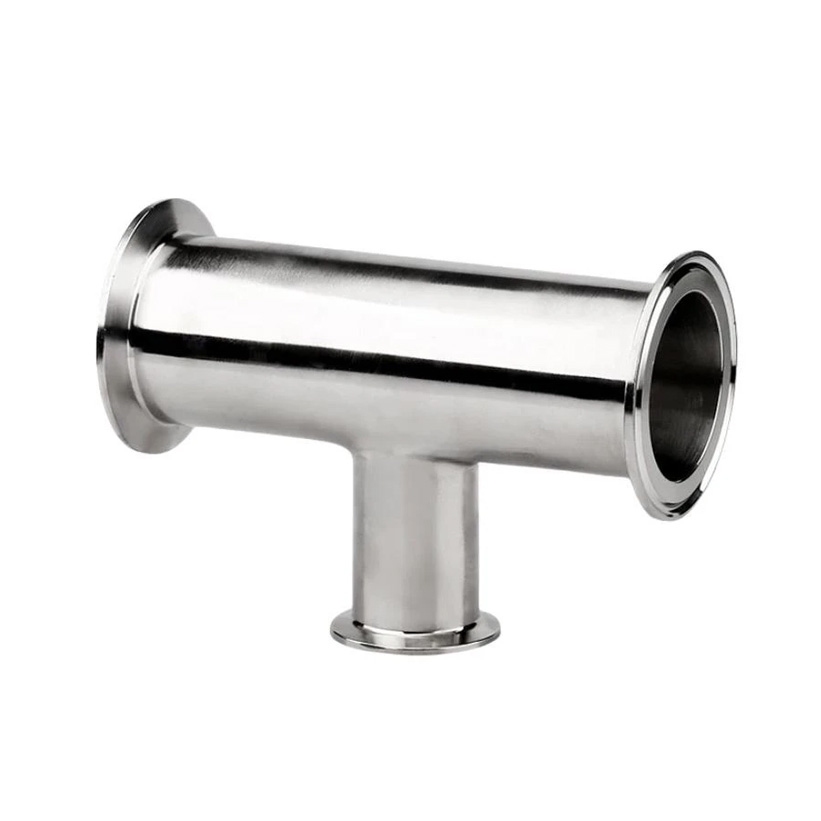

The 7RMP Reducing Clamp Tee functions as a branch connection fitting that enables fluid or gas flow to be directed from a main pipeline into a secondary line of a different diameter.
Main Line Connection – Two tri-clamp ends are connected to the main process line using sanitary clamps and gaskets. The clamp compresses the gasket between the fitting ends, creating a leak-proof, hygienic seal-.
Branch Line Connection – The reducing clamp end (smaller diameter) is connected to the branch pipeline, allowing flow to be efficiently diverted from the main line to the secondary line while reducing pipe size at the branch point.
Quick Assembly & Disassembly – The tri-clamp design allows for tool-free assembly and breakdown of sanitary line process equipment, enabling rapid installation, routine maintenance, and thorough cleaning.
Integrated System – Once all connections are completed, the 7RMP Reducing Clamp Tee enables fluid to flow seamlessly between the main pipeline and the reduced-size branch line, maintaining system integrity, flow efficiency, and hygienic cleanliness.
This design is particularly valuable in hygienic sanitary applications where quick disassembly for cleaning and flexible pipe size transitions are required.
Superior Material Quality – Made from 304 or 316L stainless steel, offering excellent corrosion resistance and durability for demanding sanitary applications.
Hygienic Design – The 32Ra polished surface reduces bacterial adhesion and residue buildup, critical for food, dairy, beverage, and pharmaceutical applications.
Certified Quality – 3-A Certified products ensure compliance with rigorous industry standards for sanitary fittings.
Complete Traceability – Material Test Reports are available upon request for full quality documentation and compliance.
Quick & Easy Maintenance – The tri-clamp connection enables tool-free assembly and disassembly, significantly reducing downtime for cleaning and maintenance.
Versatile Applications – Suitable for food processing, dairy, beverage, personal care, cosmetics, pharmaceutical, biotechnology, and chemical industries.
Flexible Size Options – Available in a wide range of size combinations to meet diverse piping system requirements.

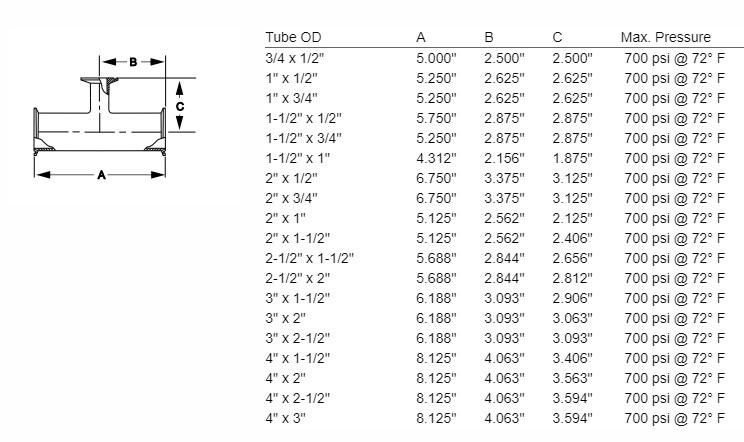

Specification | Detail |
|---|---|
Model | 7RMP |
Product Type | Reducing Clamp Tee / Tri-Clamp Reducing Tee |
Connection Type | Clamp / Tri-Clamp (all ends) |
Material | 304 or 316L Stainless Steel |
Surface Finish | 32Ra Mechanical Polish (ID & OD) |
Size Range | 1/2" to 6" (various combinations) |
Standards | 3-A Sanitary Standards |
Documentation | MTRs Available Upon Request |
Applications | Food & Beverage, Dairy, Pharmaceutical, Biotechnology, Chemical |
Q1: What is a 7RMP Reducing Clamp Tee?
A: The 7RMP Reducing Clamp Tee is a sanitary stainless steel fitting with tri-clamp (clamp) ends on all three connections. It allows for the connection of three separate tubes of varying sizes, enabling flow to branch from a main line to a reduced-size secondary line.
Q2: What is the difference between 304 and 316L stainless steel?
A: 316L stainless steel contains molybdenum, which provides superior corrosion resistance compared to 304, particularly in chloride-rich environments such as food processing, dairy, and pharmaceutical applications. The "L" designation indicates low carbon content, which enhances weldability.
Q3: What does "tri-clamp" or "quick-clamp" mean?
A: Tri-clamp (also called quick-clamp) refers to a sanitary connection method where fittings are joined using a clamp and gasket. This design creates a leak-proof, hygienic seal and enables tool-free assembly and disassembly for easy cleaning and maintenance.
Q4: What industries commonly use the 7RMP Reducing Clamp Tee?
A: The 7RMP Reducing Clamp Tee is widely used in food processing, dairy production, beverage manufacturing, personal care, cosmetics, pharmaceutical, biotechnology, and chemical processing industries.
Q5: What surface finish is available?
A: The 7RMP Reducing Clamp Tee is available with a 32Ra mechanical polished finish on both interior and exterior surfaces. 20Ra and 15Ra finishes are also available upon request for more demanding applications.
Q6: Are Material Test Reports (MTRs) available?
A: Yes, Material Test Reports (MTRs) are available upon request for every 7RMP Reducing Clamp Tee, providing full material certification and traceability.
