Union System Fastening – Serves as the tightening component that secures the DIN union assembly, holding liners, males, and gaskets together
DIN 11852 Standard Compliance – Manufactured to DIN 11852 sanitary fitting standards, ensuring compatibility with DIN 11850 series tubing and EN 10357 (formerly DIN 11850-R2) tubes

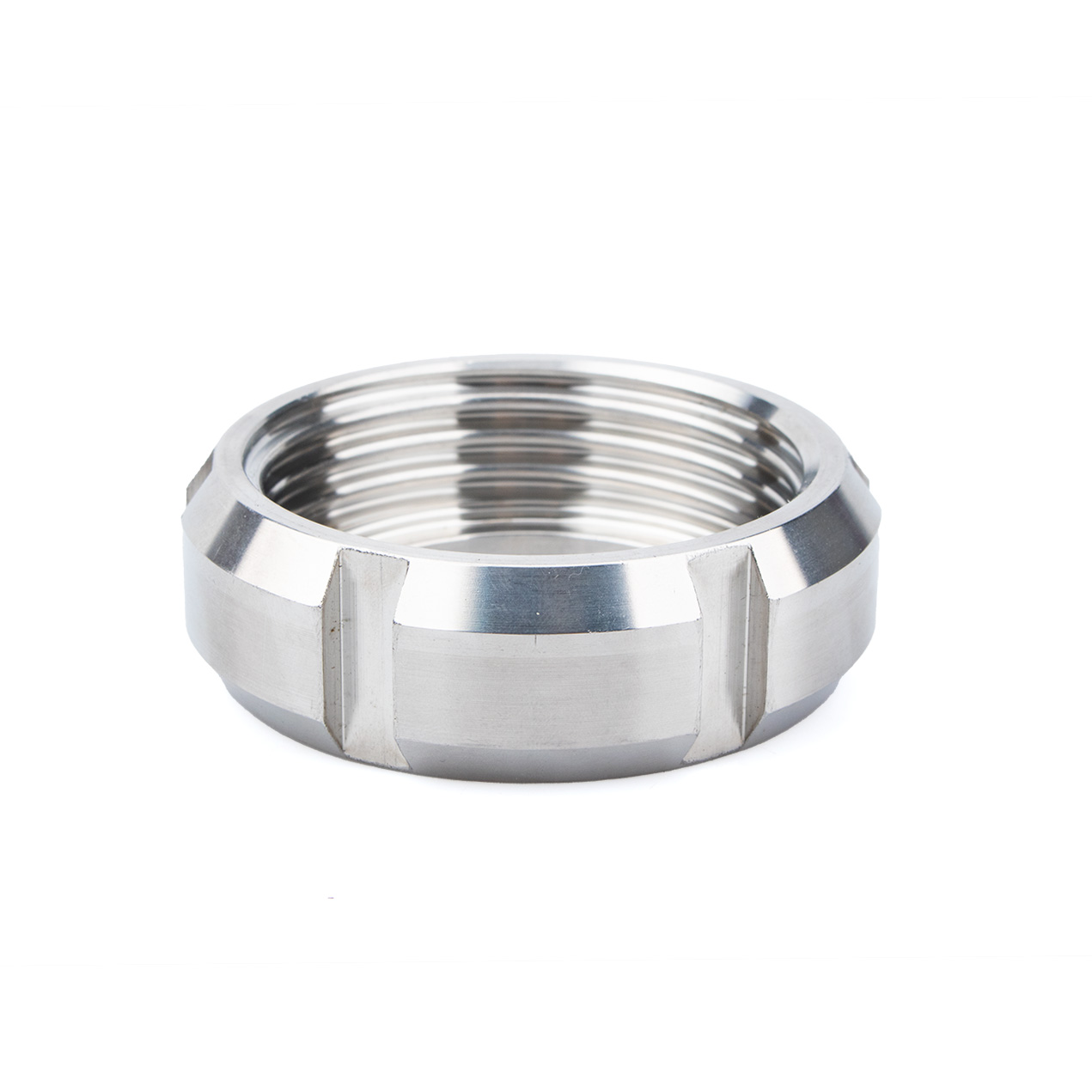

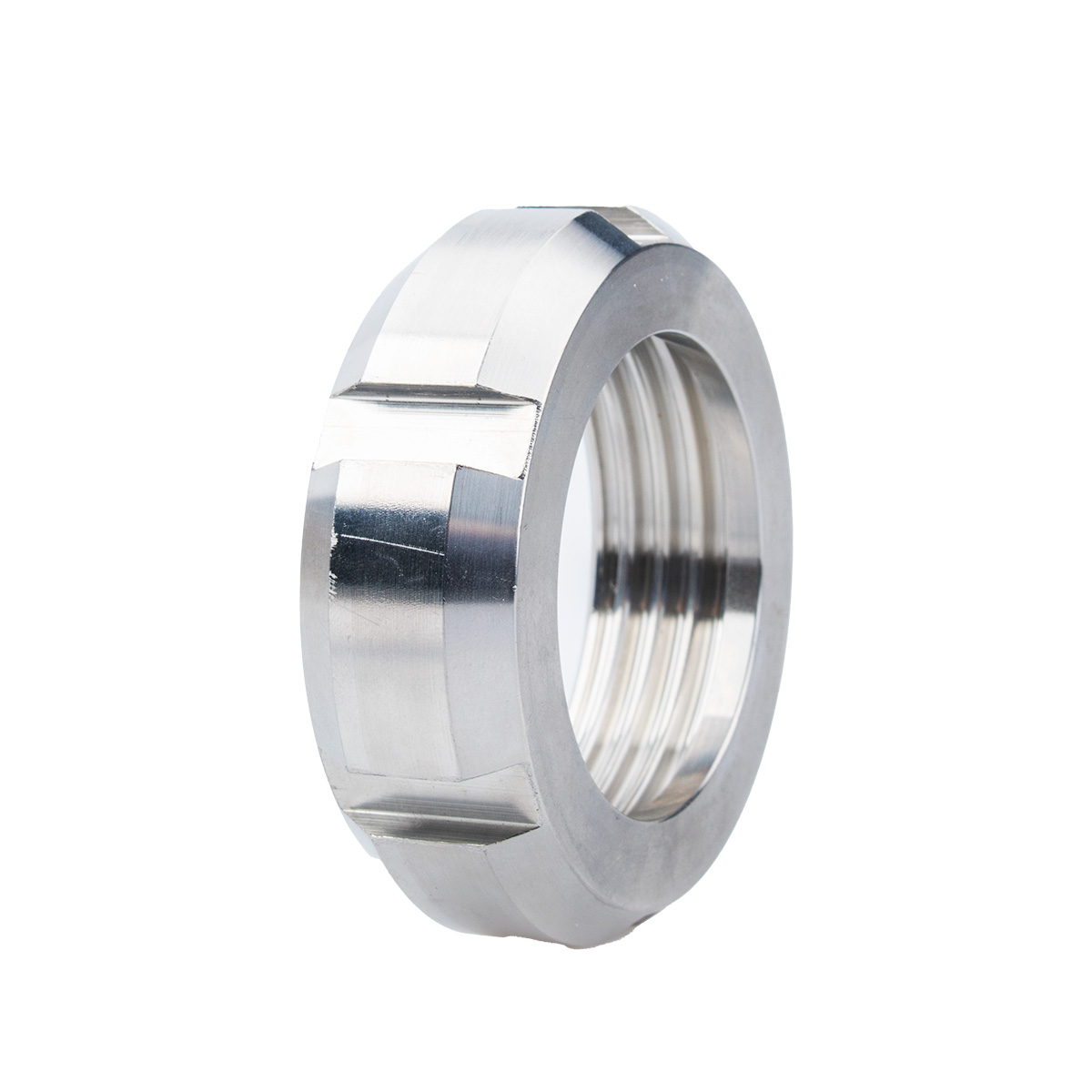

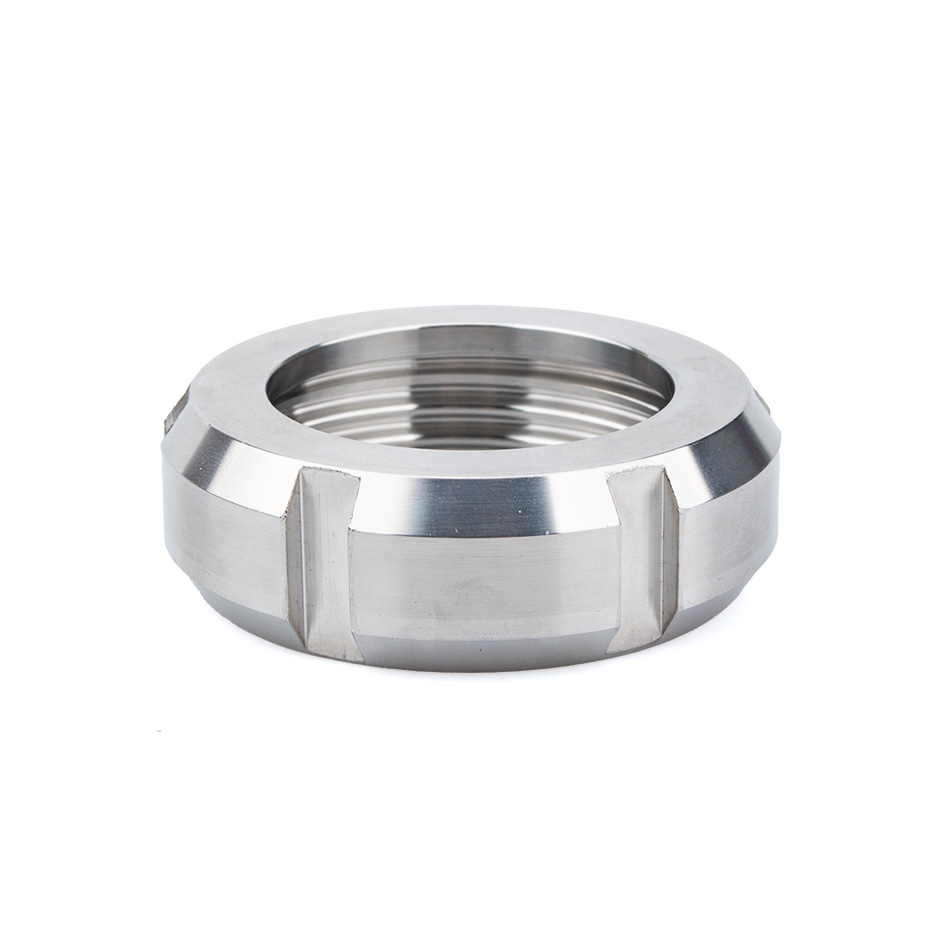

Round Slotted Design – Features a round profile with slots for easy tightening and loosening using standard spanner wrenches or specialized tools
Precision Threaded Connection – Engineered with precision threads that match DIN 11852 union specifications for reliable, repeatable connections
High Corrosion Resistance – Constructed from premium 304 and 316L stainless steel for long-lasting durability in demanding environments

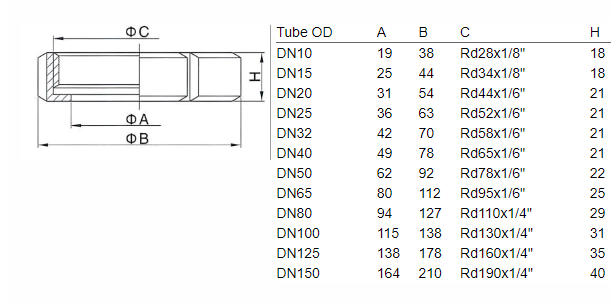

Wide Size Range – Available from DN10 to DN150 to suit diverse system requirements
CIP/SIP Compatible – Designed to support Clean-In-Place and Sterilize-In-Place procedures
Reliable Sealing – When torqued correctly with a compatible gasket, creates a hygienic, leak-proof seal that maintains system integrity
Quick Assembly & Disassembly – Slotted round nut design enables rapid installation and removal without special tools, reducing downtime
Easy Maintenance – Tool-free disassembly allows for rapid line access for cleaning, inspection, and component replacement
Versatile Applications – Suitable for food processing, beverage production, pharmaceutical manufacturing, biotech, dairy, cosmetics, and semiconductor industries
Interchangeable Design – Standard DIN 11852 configuration ensures compatibility with existing DIN sanitary piping systems
Long Service Life – Stainless steel construction with 3A certification ensures superior durability under repeated sanitization cycles
The DIN 11852 Union Nut DIN-13 operates as the fastening mechanism within a DIN sanitary union assembly:
Assembly – The DIN union consists of four key components: DIN-13 (Union Nut), DIN-14 (Welding Liner), DIN-15 (Welded Male), and a sanitary gasket
Placement – The DIN-13 nut is positioned over the union connection, encompassing the liner, male fitting, and gasket
Tightening – Using the slotted round nut design, the nut is tightened with a spanner wrench, compressing the D-section gasket between the liner and male fitting faces
Sealing – The compression creates a hygienic, crevice-free seal that prevents leakage and maintains sanitary integrity
Disassembly – Simply loosening the nut allows for instant disassembly for cleaning, inspection, or process changes
This design provides a secure yet serviceable connection, combining the reliability of a permanent joint with the flexibility of a removable fitting.
