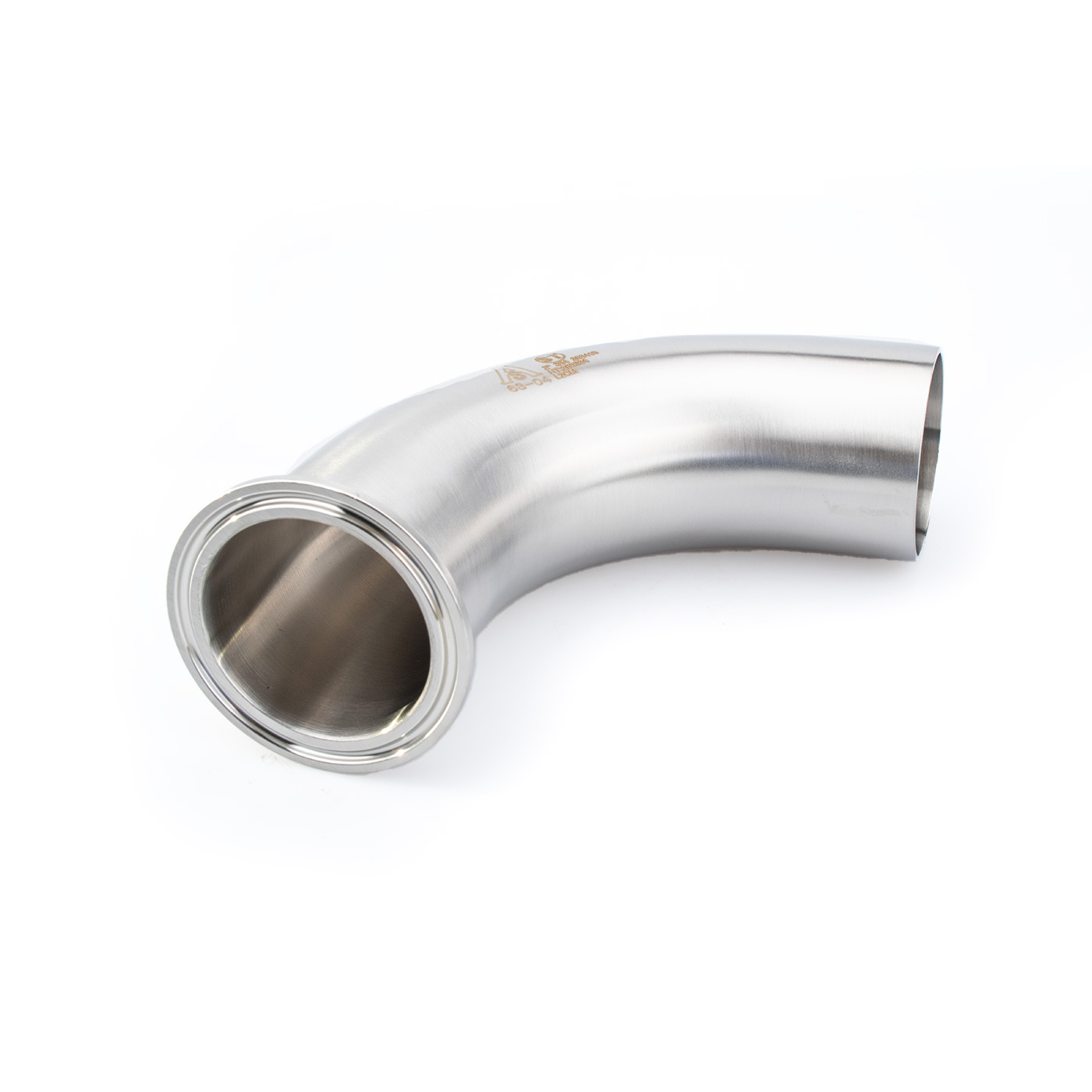

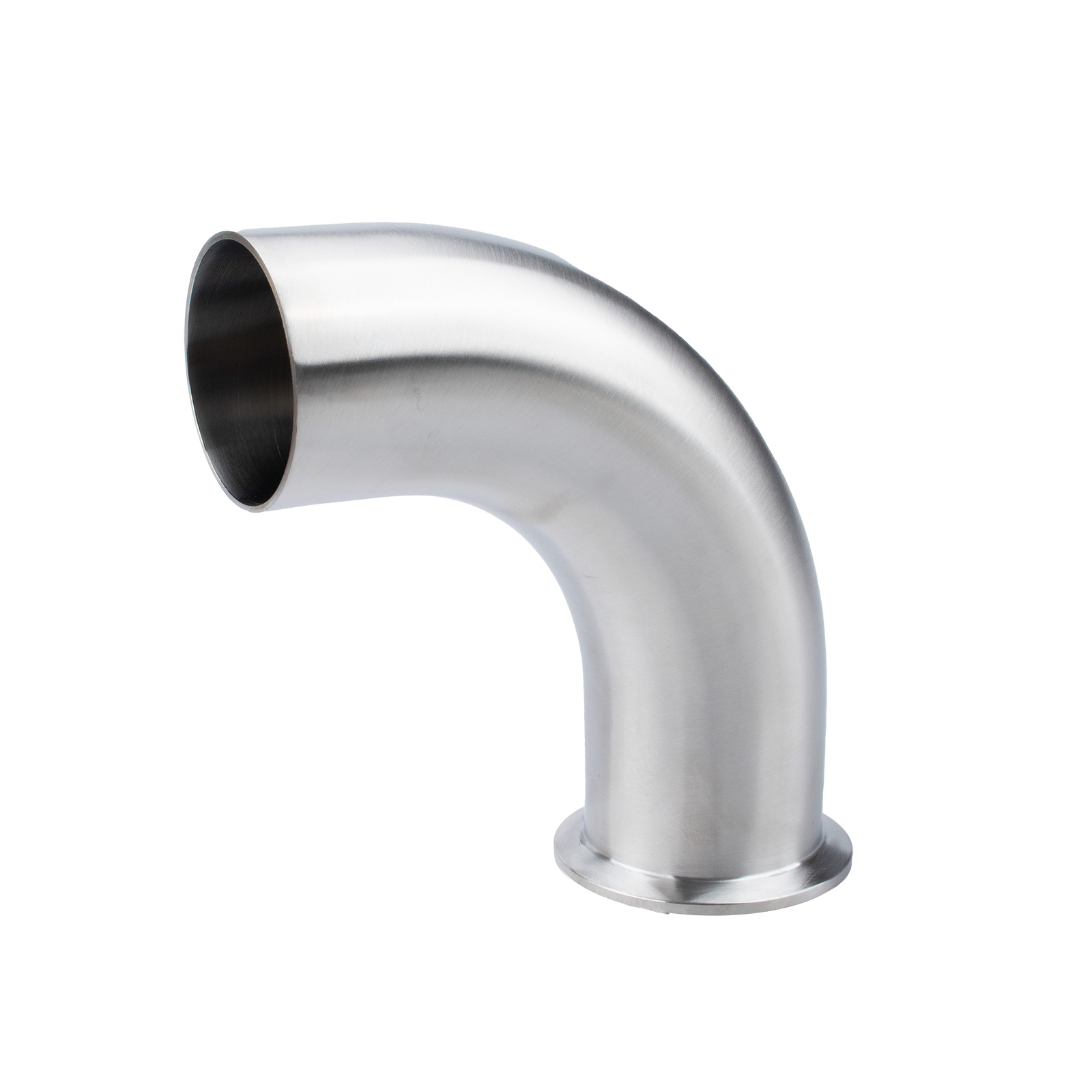

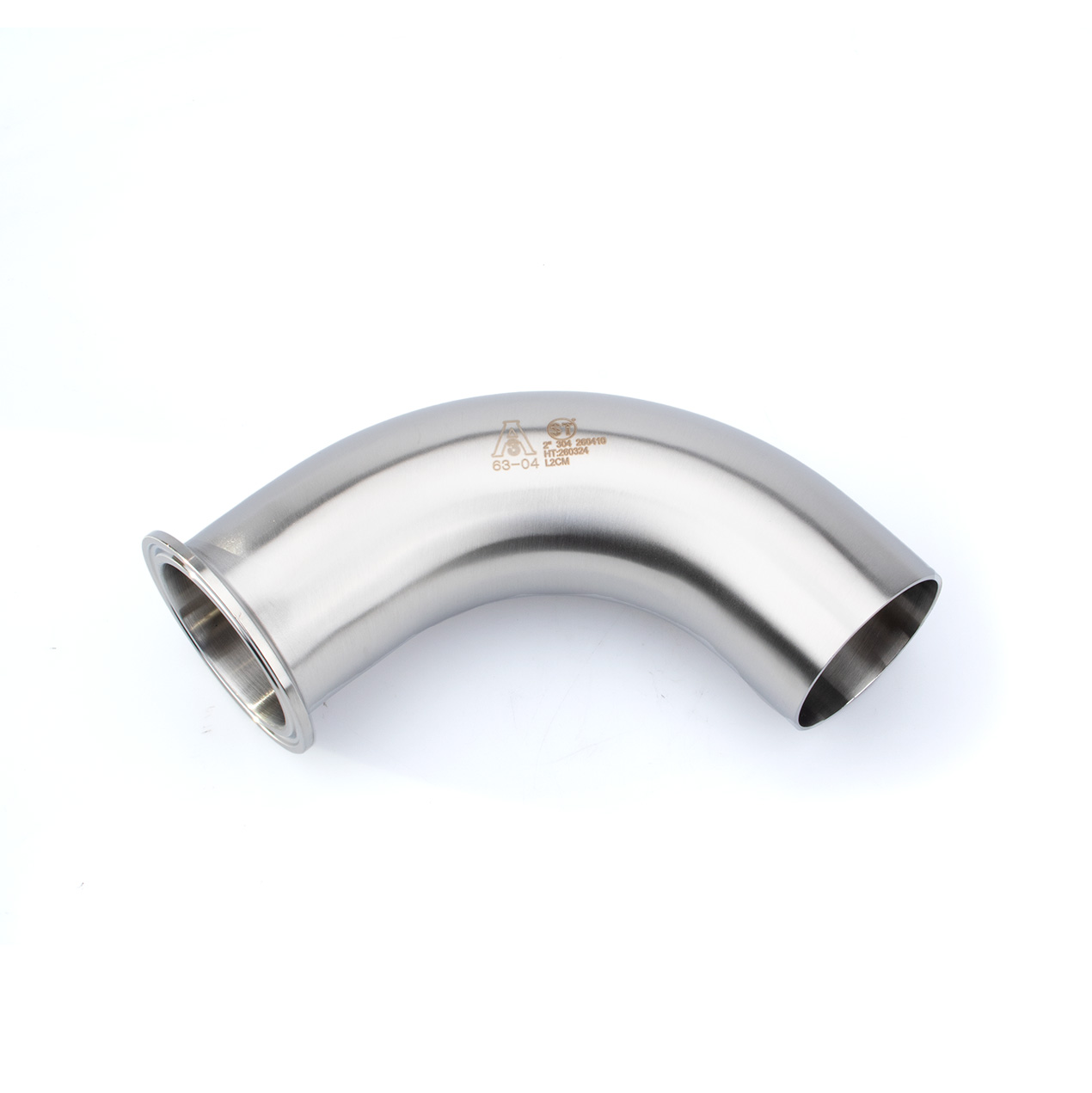

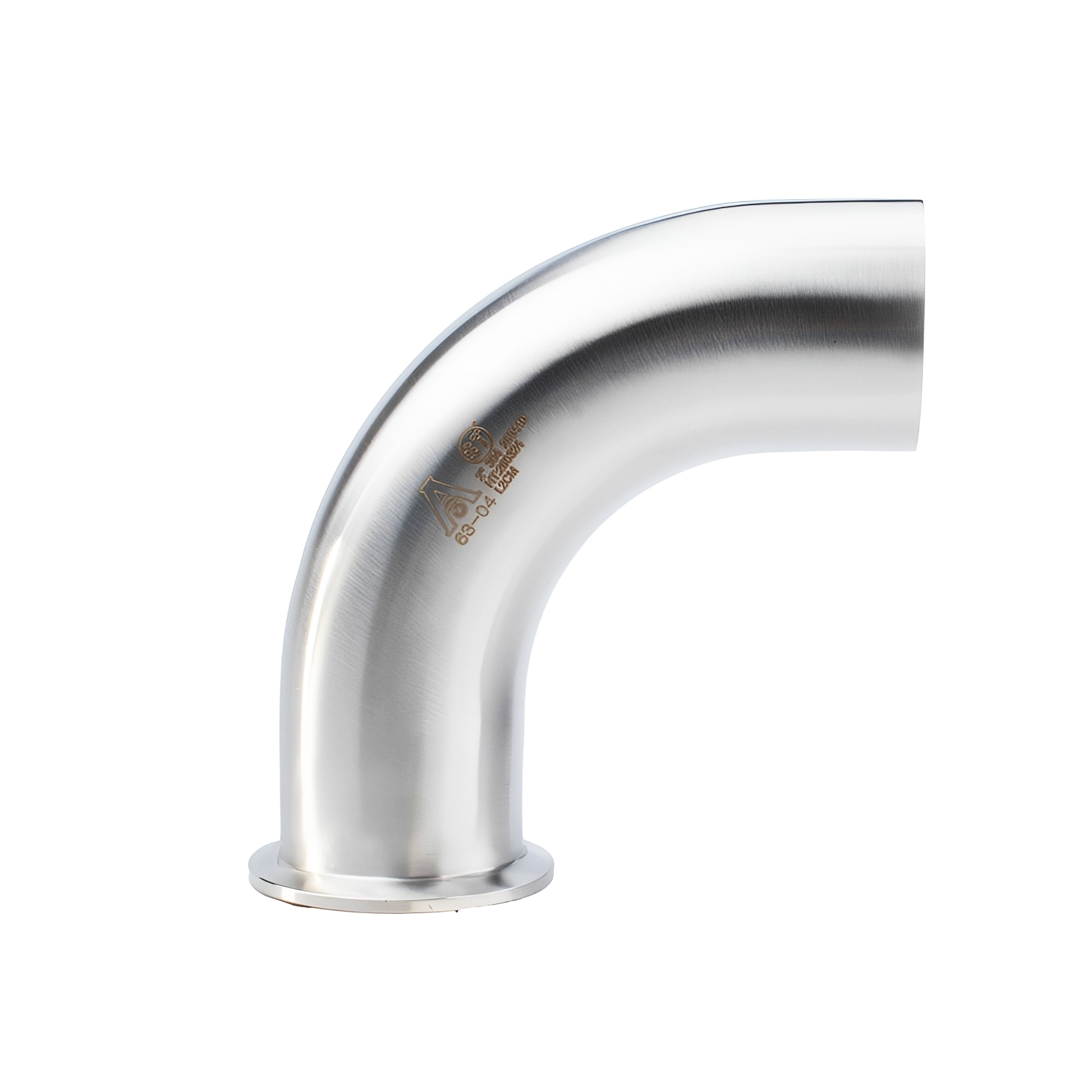

L2CM 90Degree Clamp and Weld Elbow Long

Key Features

• Dual-Connection Design – Clamp end for quick assembly/disassembly + butt weld end for permanent, leak-proof joints

• Long Radius Configuration – Reduces pressure drop and turbulence, ensuring smoother fluid flow and enhanced system performance-

• Premium Stainless Steel – Available in 304 and 316L grades for superior corrosion resistance and durability

• High-Quality Surface Finish – 32 RA I.D. / 32 RA O.D. polished finish minimizes bacterial adhesion and simplifies cleaning

• CIP Compatible – Designed for Clean-In-Place maintenance without system disassembly

• Multiple Size Options – Available from 1/2" to 8" (DN10–DN200) to suit diverse piping requirements

• Full Certification – 3A Sanitary Standard, CE Mark, ISO 9001 certified – your assurance of quality and compliance

Advantages

• Leak-Proof Reliability – Butt weld end creates a permanent, flush connection that eliminates potential leak points

• Maintenance Efficiency – Clamp end allows rapid disassembly for inspection, cleaning, or component replacement without cutting pipes

• Superior Hygiene – Smooth polished surfaces prevent product buildup and bacterial growth, critical for sanitary applications

• Optimized Flow Dynamics – Long radius design minimizes pressure loss and fluid turbulence, improving overall system efficiency

• Versatile Application – Suitable for food & beverage, dairy, pharmaceutical, biotechnology, cosmetic, and chemical processing industries

  Durable Construction – High-grade stainless steel ensures long service life even in corrosive or high-temperature environments

• Regulatory Compliance – 3A, CE, and ISO 9001 certifications guarantee compliance with international sanitary and quality standards

How It Works

The L2CM 90° Clamp x Butt Weld Elbow functions as a directional flow component in sanitary piping systems, redirecting fluid flow at a 90-degree angle with minimal resistance.

Installation Process:

1. Weld End – The butt weld end is permanently welded to tubing or piping, creating a seamless, flush joint that eliminates crevices where contaminants could accumulate

2. Clamp End - The tri-clamp end connects to compatible fittings using a gasket and sanitary clamp, allowing for quick assembly and disassembly when needed

3. Long Radius Design – The extended radius ensures a gradual directional change, reducing fluid turbulence and pressure drop compared to short-radius elbows
