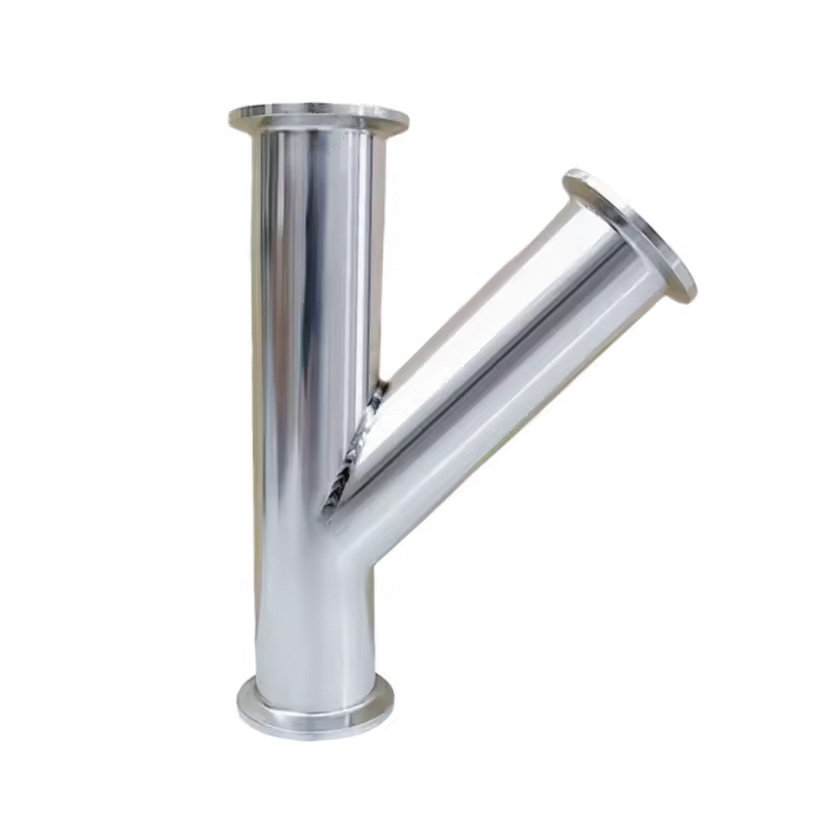

28AMP Clamp Laterals

Key Feature

• Premium 304/316L Stainless Steel Construction – Offers outstanding resistance to corrosion, oxidation, and chemical attack, making it ideal for food, dairy, beverage, pharmaceutical, brewing, and cosmetic processing environments.

• 45-Degree Angled Lateral Branch – The 45° Y-shaped design allows for smooth flow transitions and full drainage in horizontal process lines, significantly reducing product hold-up.

• 32Ra Mechanical Polished Finish – Both interior and exterior surfaces are precision polished to 32Ra, ensuring a smooth, bacteria-resistant surface that minimizes product buildup and facilitates thorough CIP cleaning.

• Tri-Clamp (Quick-Clamp) Connection – Features clamp ferrules on all three ends for quick and easy installation. Connections are easy to assemble and disassemble for cleaning and routine maintenance.

• Leak-Proof Sealing – When combined with a gasket and clamp, these fittings create a secure, leak-proof connection to tubing or other fittings.

• Full Material Traceability – Material certifications and test reports are available upon request, ensuring complete quality assurance and compliance.

• Wide Size Range – Available from 1/2" to 12" to accommodate diverse system requirements.

• Multiple Standard Compliance – Manufactured to meet 3A, ASME A270, DIN, SMS, and ISO/IDF international standards.

• Passivation Available – Passivation treatment can be provided upon special request for enhanced corrosion protection.

How It Works

The 28AMP Clamp Lateral functions as a 45-degree Y-shaped branch fitting that enables fluid or gas flow to be divided or combined within a piping system while maintaining optimal drainage.

1. Y-Shaped Flow Path – The fitting features a straight run with a 45° angled branch inlet-. This design allows flow to enter from the straight section and exit through the angled branch, or vice versa, enabling smooth flow distribution or combination.

2. Tri-Clamp Connections – Each of the three ends is equipped with a tri-clamp ferrule. A gasket is placed between the ferrule and the mating fitting, and a clamp is tightened around the ferrule to create a secure, sanitary seal.

3. Horizontal Drainage – The 45-degree angled branch is specifically designed for horizontal piping installations, ensuring that the entire process line drains completely and reducing product hold-up.

4. Easy Maintenance – The clamp connection allows for quick disassembly without special tools, facilitating thorough cleaning and routine maintenance.

This design is particularly valuable in hygienic sanitary applications where full drainability, easy cleaning, and CIP compatibility are essential.

Why Choose Our 28AMP Clamp Lateral?

• Superior Material Quality – Made from 304 or 316L stainless steel, offering excellent corrosion resistance and durability for demanding sanitary applications.

• Hygienic Design – The 32Ra polished interior and exterior finish reduces bacterial adhesion and residue buildup, critical for food, dairy, beverage, pharmaceutical, and brewing applications.

• Certified Quality – 3A Certified, CE Certified, and ISO 9001 Certified, ensuring compliance with rigorous industry standards for sanitary fittings.

• Complete Traceability – Material certifications and test reports are available upon request for full quality documentation.

• Quick and Easy Installation – The tri-clamp connection enables fast assembly and disassembly without special tools, reducing downtime during maintenance.

• Optimized for Horizontal Piping – The 45-degree angled branch ensures full drainability and reduced product hold-up in horizontal process lines.

• Versatile Applications – Suitable for food processing, dairy, beverage, brewing, distilleries, personal care, cosmetics, pharmaceutical, and chemical industries.

• Flexible Customization – OEM and ODM services are available, with production according to customer drawings and specifications.

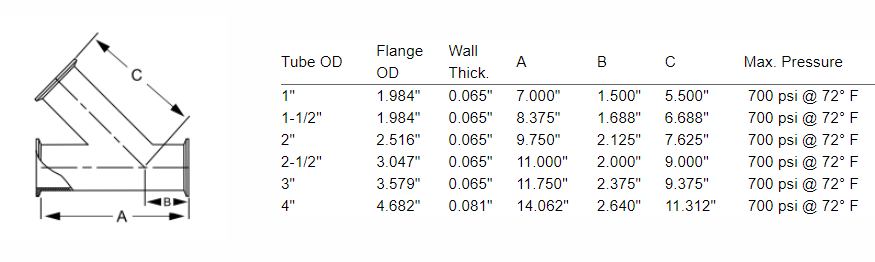

Specifications
