9MP Clamp Cross

Key Features

• Premium 304/316L Stainless Steel Construction – Offers outstanding resistance to corrosion, oxidation, and chemical attack, making it ideal for food, dairy, beverage, pharmaceutical, and cosmetic processing environments.

• 4-Way Flow Distribution – The four clamp ends allow for the intersection of multiple processing lines, enabling flow to be divided or combined from a total of four flow paths.

• Tri-Clamp (Quick-Clamp) Connection – Features clamp ferrules on each end for quick and easy installation. Connections are easy to assemble and disassemble for cleaning and routine maintenance

• Leak-Proof Sealing – When combined with a gasket and clamp, these fittings create a secure, leak-proof connection to tubing or other fittings.

• Polished Interior Surface – The smooth internal finish reduces bacterial adhesion and residue buildup, minimizing the risk of contamination.

How It Works

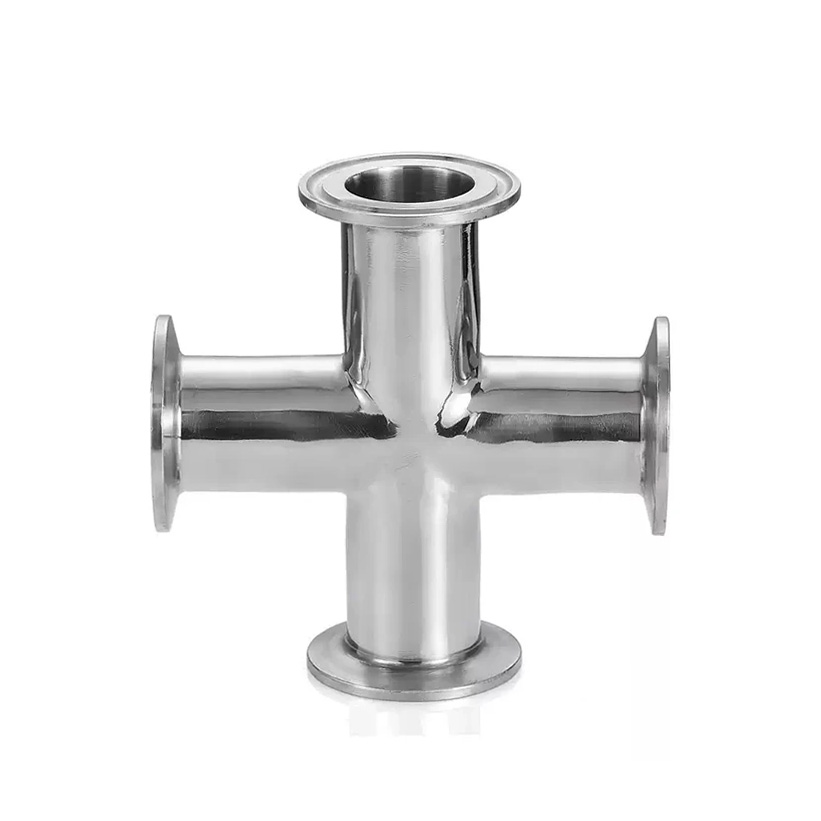

The 9MP Clamp Cross functions as a 4-way distribution fitting that enables fluid or gas flow to be directed in multiple directions within a piping system.

1. Four-Port Design – The fitting features four clamp ends arranged in a cross configuration. Each end connects to a separate process line, allowing flow to enter from one or more directions and exit through others.

2. Tri-Clamp Connection – Each end is equipped with a tri-clamp ferrule. A gasket is placed between the ferrule and the mating fitting, and a clamp is tightened around the ferrule to create a secure, sanitary seal.

3. Flow Distribution – Once all connections are completed, the Clamp Cross enables fluid or gas to flow seamlessly between multiple lines, supporting flow division, flow combination, or simultaneous multi-directional distribution.

4. Easy Maintenance – The clamp connection allows for quick disassembly without special tools, facilitating thorough cleaning and routine maintenance.

This design is particularly valuable in hygienic sanitary applications where flexible flow routing, easy cleaning, and CIP compatibility are essential.

Specifications
