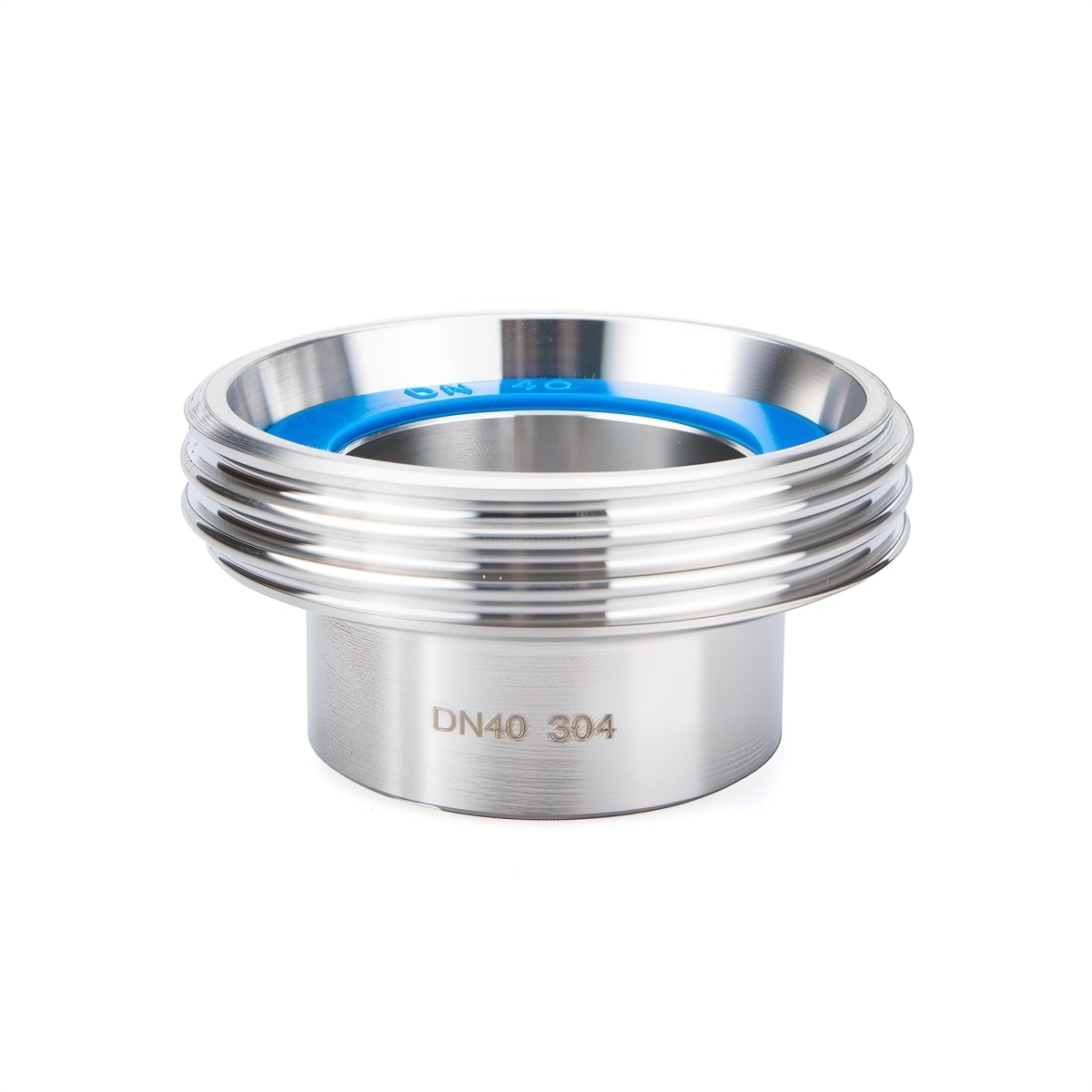

Aseptic Union Male Series A DIN 11864 DIN

Key Features

• DIN 11864-1 Form A Compliance – Manufactured to the German aseptic standard, ensuring compatibility with DIN 11864 series components

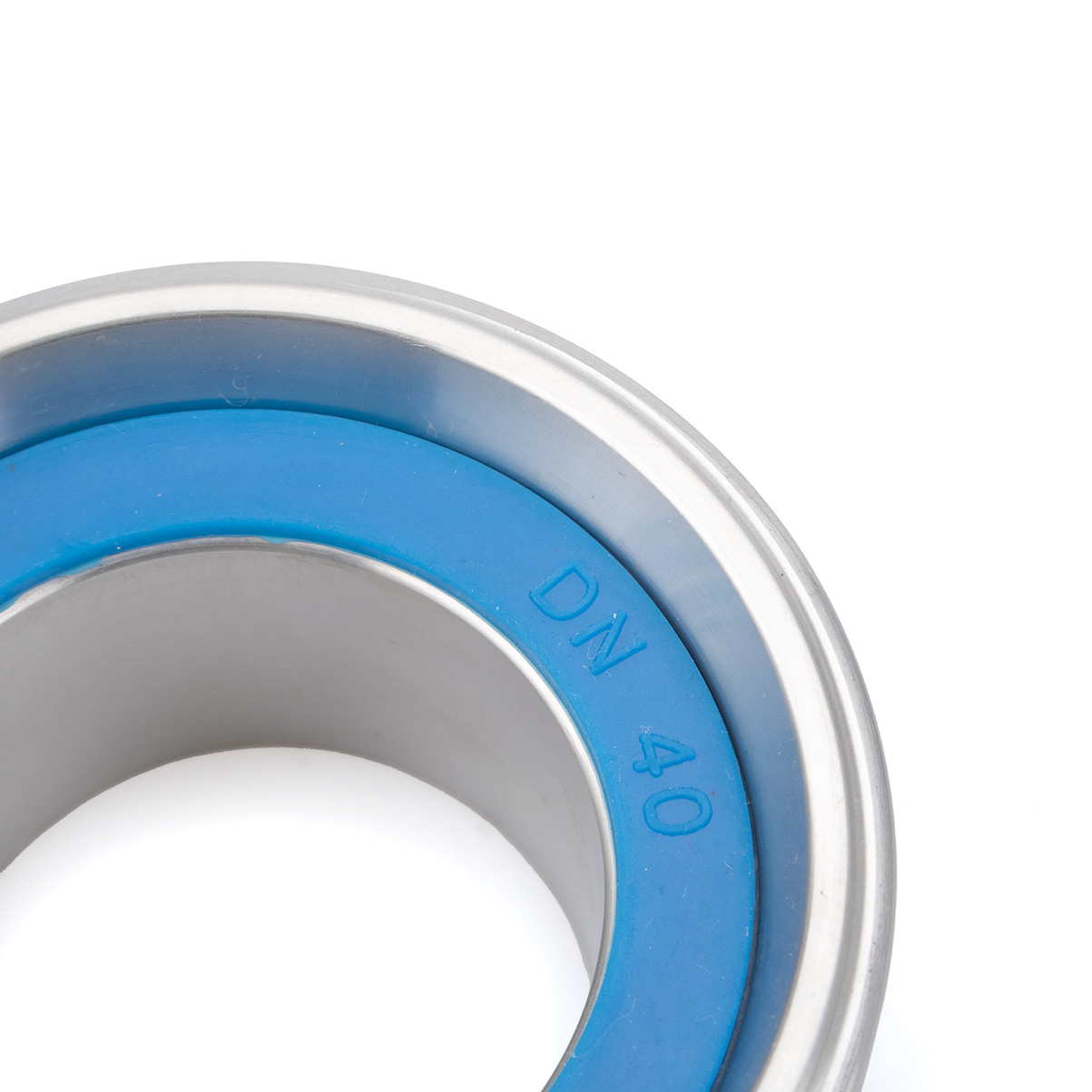

• Dead-Space-Free Sealing – O-ring sits in a precision-turned groove with metallic centering, eliminating crevices where product residues could accumulate

• Orbital Welding Ready – Extended welding ends support both orbital and manual welding for seamless integration into hygienic piping systems

• High-Grade Stainless Steel Construction – Available in 316L (1.4404/1.4435) with delta ferrite content < 1% for optimal weldability and corrosion resistance

• Superior Surface Finish – Product-contact surfaces precision-turned to Ra < 0.8 µm (Hygiene Class H3), meeting the highest hygienic standards

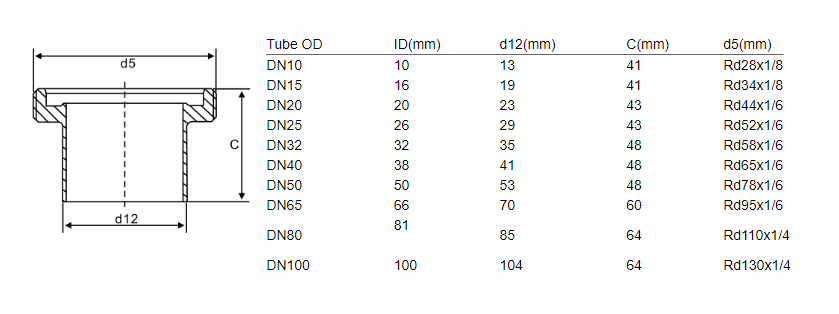

• Wide Size Range – Available from DN10 to DN150 to suit diverse system requirements

• High Temperature & Pressure Rating – Suitable for sterilization temperatures up to 150°C; pressure rated up to 40 bar depending on size

Key Advantages

• Maximum Process Safety – Dead-space-free design minimizes contamination risks and ensures sterile operation in critical applications

• Superior Cleanability – Optimized for CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes, reducing downtime and enhancing productivity

• Reliable Sealing Performance – O-ring-based sealing system with FDA and USP Class VI-compliant elastomers ensures leak-free, hygienic operation

• Versatile Applications – Suitable for pharmaceutical (WFI, pure steam, API synthesis), biotech (cell culture, fermentation), food & beverage (dairy, juice, beer), and fine chemical industries

• Long Service Life – Premium stainless steel construction with 3A certification delivers exceptional durability under repeated sterilization cycles

• Interchangeable Design – Standard DIN 11864 configuration ensures seamless compatibility with existing aseptic piping systems

How It Works

The DIN 11864 Male Union operates as part of a three-component aseptic screwed connection system:

1. Assembly – The male union is welded to the tubing end (via orbital or manual welding)

2. Sealing – An O-ring (EPDM, VMQ, or FKM) is placed in the precision groove of the male part

3. Connection – The liner (female part) is brought into position against the male union

4. Securing – The union nut is threaded over the connection, compressing the O-ring to form a dead-space-free, hygienic seal

5. Centering – Metallic centering ensures precise alignment of both components

This design provides a detachable yet secure connection that maintains sterile integrity while allowing for easy disassembly during maintenance or process changes.

Why Choose Us

• Certified Quality – All our DIN 11864 Male Unions are 3A Sanitary Standards certified, meeting the highest standards for hygienic fittings. We also hold CE certification and ISO 9001 quality management system certification, ensuring consistent product excellence

• Premium Materials – We use only high-grade 316L stainless steel (1.4404/1.4435) with controlled delta ferrite content (< 1%) for superior corrosion resistance and weldability

• Precision Manufacturing – Every male union features precision-turned sealing surfaces with surface roughness Ra < 0.8 µm internally, meeting Hygiene Class H3 standards

• Stringent Quality Control – Each fitting undergoes rigorous inspection to ensure dimensional accuracy, surface finish quality, and sealing performance

• Extensive Size Range – From DN10 to DN150, we offer the full spectrum of sizes to meet your specific requirements

• Competitive Pricing – Direct manufacturing capabilities allow us to offer factory-direct pricing without compromising quality
