Flow Termination – Effectively seals off the end of a piping system or unused port, preventing fluid flow and maintaining system integrity
BS 4825 Part 5 Compliance – Manufactured to British Standard BS 4825 Part 5 for Ring Joint Type hygienic couplings, ensuring interchangeability and compatibility
RJT Union Compatibility – Designed to work seamlessly with RJT-13 nuts, RJT-15 male parts, and RJT gaskets/O-ring seals
O-Ring Seal Design – When assembled with an RJT male part, the O-ring is compressed uniformly, creating a highly effective, near-flawless seal
High Corrosion Resistance – Manufactured from 316L stainless steel for exceptional resistance to corrosion, process media, and cleaning agents
High-Temperature Performance – Suitable for applications requiring resistance to elevated temperatures
CIP/SIP Compatible – Supports Clean-In-Place and Steam-In-Place procedures for hygienic maintenance
Smooth Surface Finish – Internal surface roughness does not exceed Ra ≤ 0.8 μm, meeting hygienic standards
Wide Size Range – Available from 1" to 4" to suit diverse system requirements
Superior Sealing Performance – The O-ring seal provides a better seal than flat gaskets, especially in applications involving vacuum or pressure
Hygienic Integrity – Blind liner design prevents contamination and ingress of foreign material into the process system
Easy Integration – Standard BS 4825 Part 5 design ensures seamless compatibility with existing RJT sanitary union systems
Robust Construction – 316L stainless steel and precision machining ensure exceptional durability under repeated sanitization cycles
Versatile Applications – Suitable for dairy, breweries, beverage, pharmaceutical, food processing, cosmetics, and biotech industries
Full Material Traceability – Each fitting comes with material test reports and full traceability for audit compliance
Maintenance-Friendly – Supports CIP and SIP cleaning without requiring removal from the system

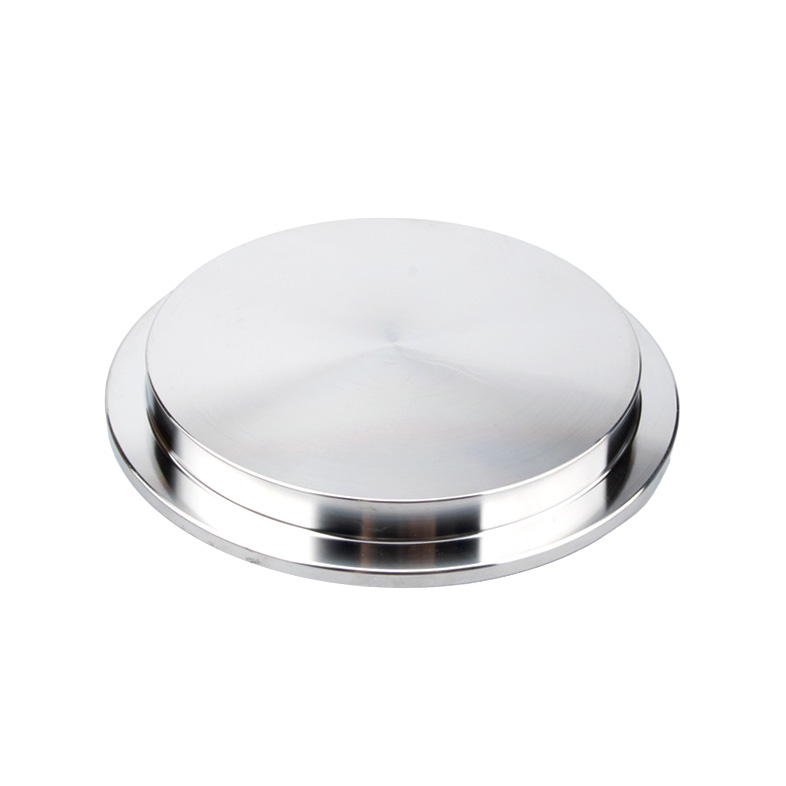

The RJT-14B Blank Liner operates as a sealing component within an RJT (Ring Joint Type) sanitary union system:
Union System Integration – A complete RJT union consists of four components: RJT-13 (Nut), RJT-14 (Liner/Welding Liner), RJT-15 (Male Part), and RJT-16 (Blank Liner)
Positioning – The blank liner (RJT-14B) is placed at the end of a piping run or unused port, serving as a termination point
O-Ring Sealing – An O-ring gasket sits securely within the groove of the RJT male part; the blank liner's smooth face mates with the male part
Nut Securing – The RJT-13 hexagonal nut is tightened with a spanner, compressing the O-ring uniformly to form a highly effective, near-flawless seal
Flow Blocking – The blank liner effectively blocks fluid flow, isolating the piping section for cleaning, maintenance, or system modification
This design provides a robust, durable, and reliable seal – the hexagonal nut allows for higher tightening forces, making the connection extremely stable and highly resistant to vibration and mechanical stress.
Certified Quality – All our RJT-14B Blank Liners are 3A Sanitary Standards certified, meeting the highest industry requirements for sanitary fittings. We also hold CE certification and ISO 9001 quality management system certification, ensuring consistent product excellence
Premium Materials – We use only high-grade 316L stainless steel, offering exceptional corrosion resistance, high-temperature performance, and longevity
BS 4825 Part 5 Compliance – Our fittings are manufactured to British Standard BS 4825 Part 5, ensuring full compatibility with RJT sanitary union systems
Precision Engineering – Every blank liner is machined or pressed to tight tolerances with smooth surface finishes (Ra ≤ 0.8 μm) to meet hygienic standards
Stringent Quality Control – Each fitting undergoes dimensional inspection, surface finish testing, and material verification to ensure 100% compliance
Extensive Size Range – From 1" to 4" , we offer a full range to meet your termination and isolation needs-31
Full Traceability – Every fitting is supplied with material test reports and traceable documentation for audit compliance-4
Competitive Pricing – Direct manufacturing capabilities allow us to offer factory-direct pricing without compromising quality
Expert Support – Our team of sanitary fitting specialists provides technical guidance on O-ring selection, installation procedures, and system integration
Reliable Supply Chain – Consistent inventory and fast shipping ensure your projects stay on schedule
