Butt Weld Connection – Provides a permanent, flush, and crevice-free joint that eliminates dead zones and reduces contamination risk
Premium Stainless Steel Construction – Available in 304 and 316L stainless steel alloys for superior strength and corrosion resistance
Unpolished ID / 32RA OD Finish – Standard finish with smooth exterior surface; polished options available upon request

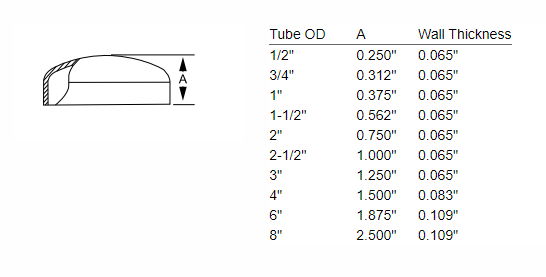

Wide Size Range – Available from 1/2" to 8" tube OD to accommodate diverse piping system requirements
3A Certified – Complies with 3A sanitary standards for food, dairy, and beverage processing equipment
CE Certified – Meets European health, safety, and environmental protection standards
ISO 9001 Certified Manufacturing – Produced under a rigorous quality management system
Material Test Reports Supplied – Full traceability and documentation provided with every shipment
Permanent Leak-Proof Seal – Butt weld connection creates a 100% leak-proof seal that outperforms threaded or clamped connections in critical applications
Superior Hygiene – Flush, crevice-free design prevents bacteria growth and residue buildup, making it ideal for sanitary and aseptic processing
Exceptional Corrosion Resistance – 304/316L stainless steel construction withstands harsh chemicals, high temperatures, and corrosive environments
Long Service Life – Built to last with minimal maintenance requirements, reducing total cost of ownership
Full Traceability – Each cap comes with material test reports and complete documentation for quality assurance
Versatile Applications – Suitable for food, beverage, dairy, pharmaceutical, cosmetic, chemical, and industrial piping systems

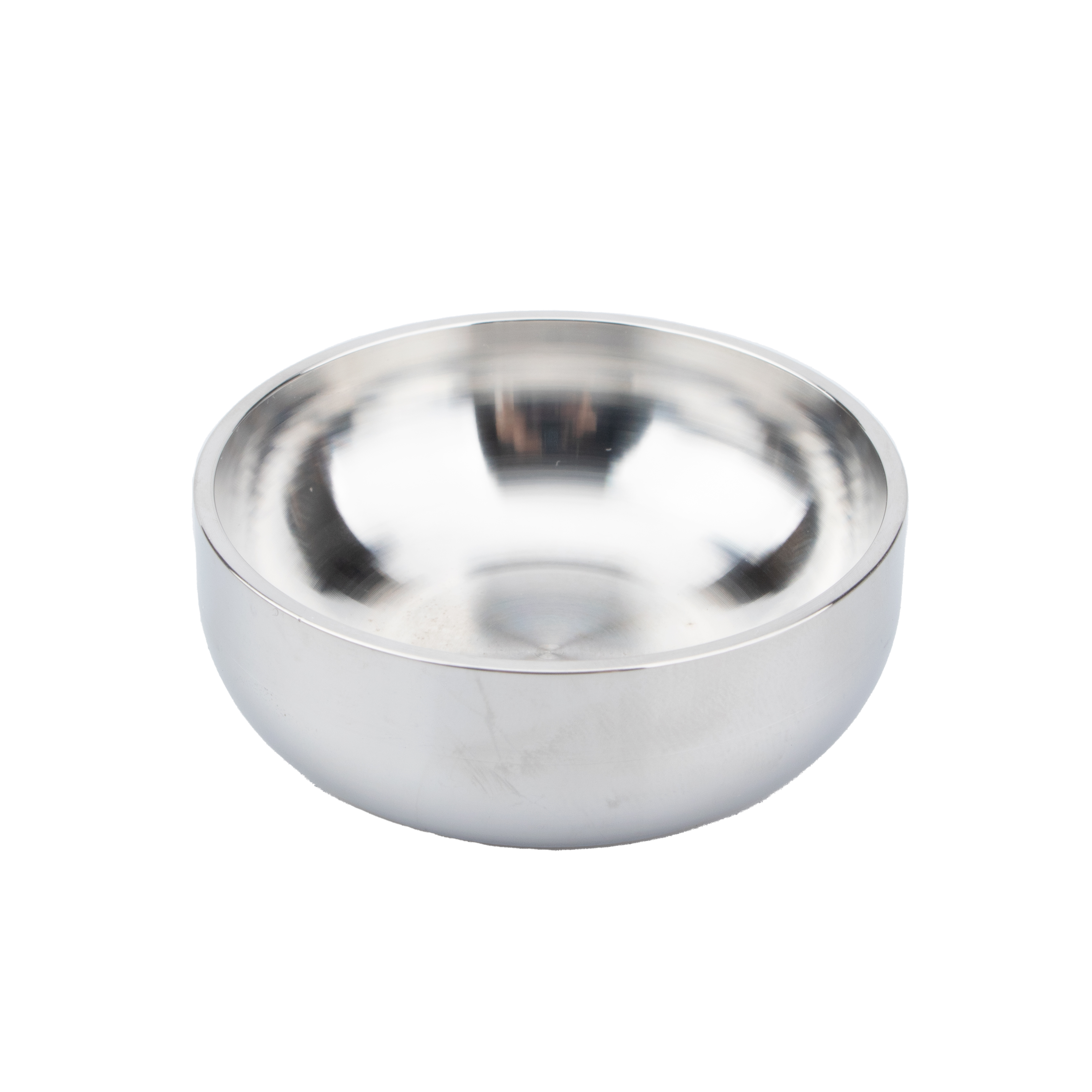

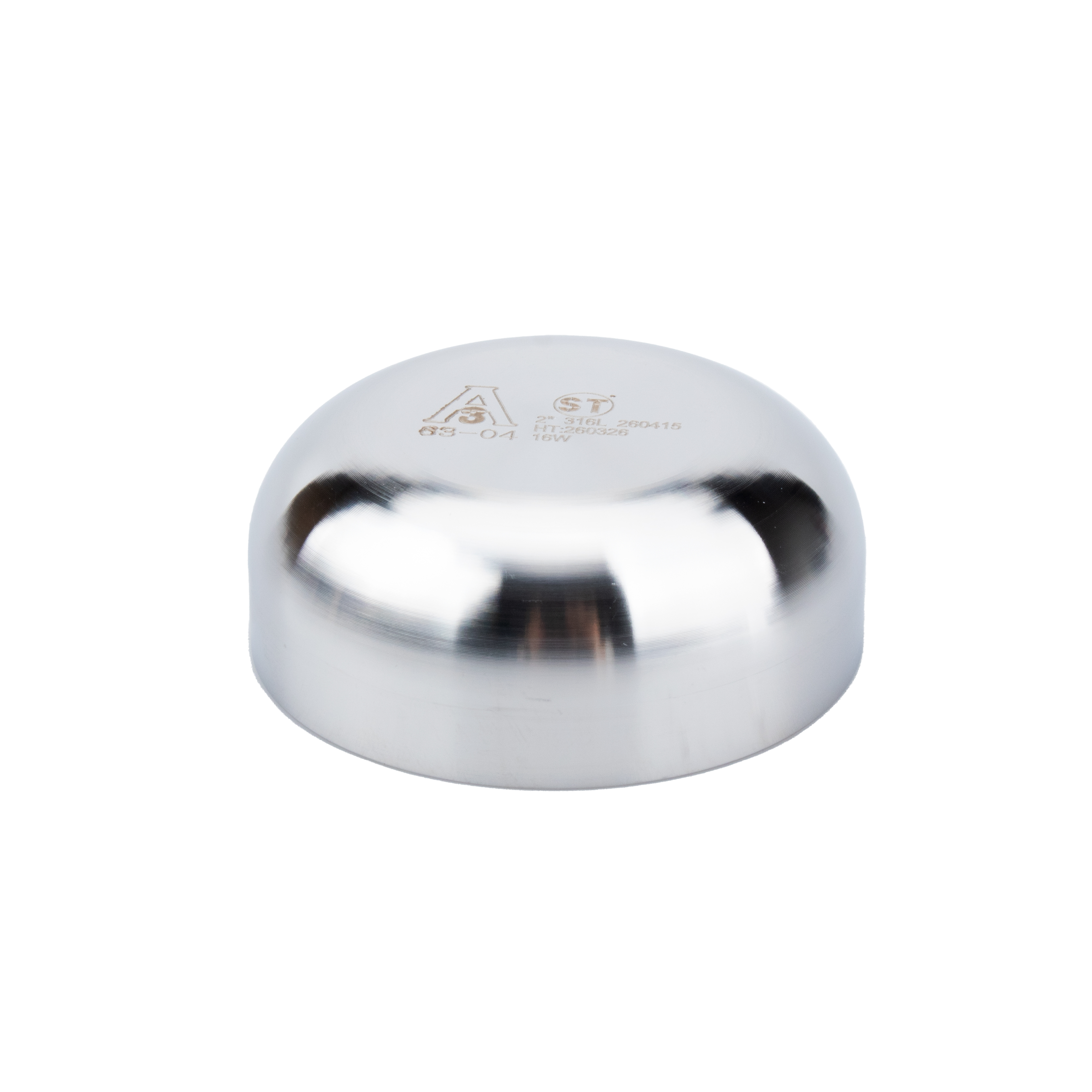

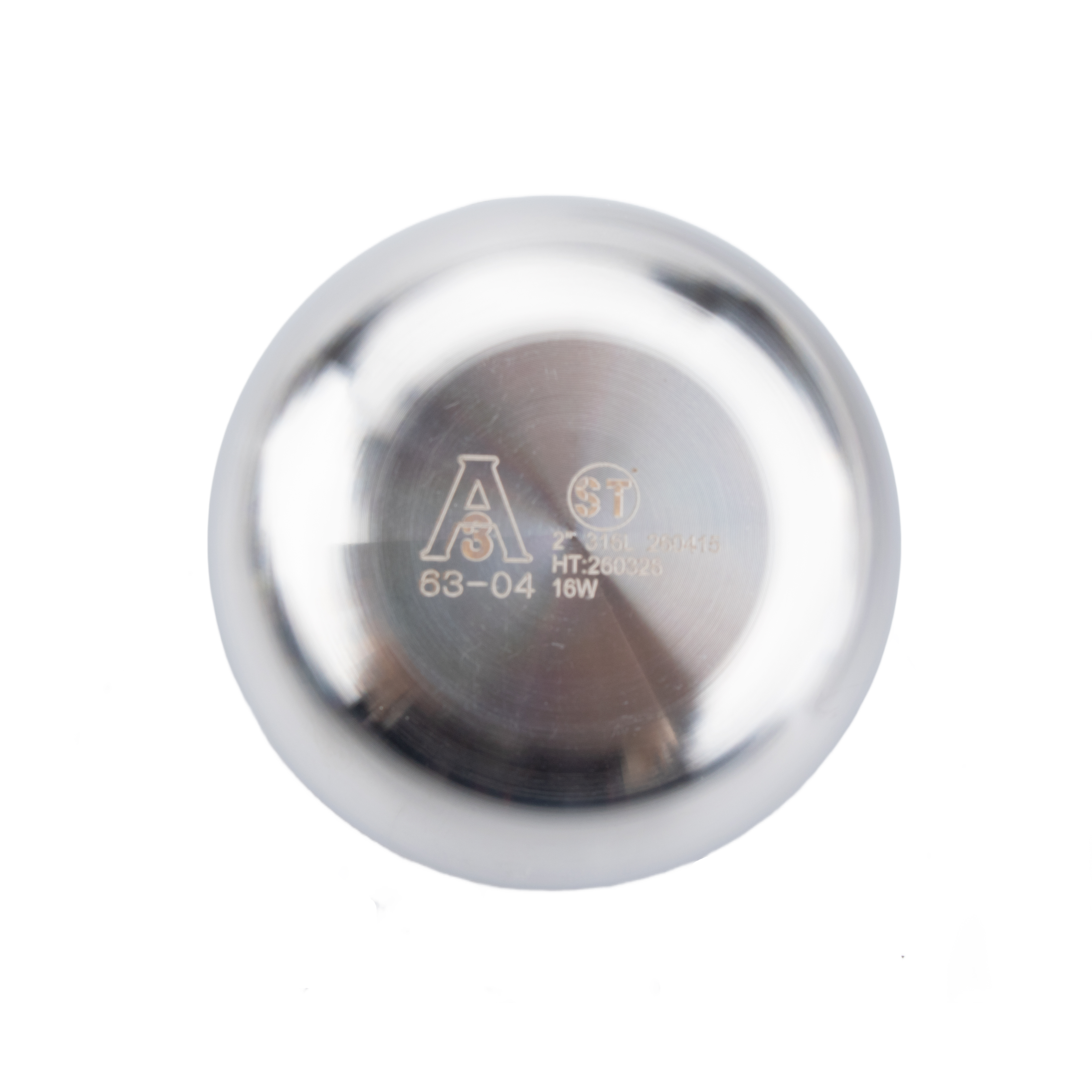

The 16W Weld Cap functions as a terminal end closure for sanitary piping systems-. It is installed by butt welding the cap directly to the end of a pipe or tube, creating a permanent, full-penetration weld joint. This welding process fuses the cap and pipe into a single, continuous structure with a flush interior surface that eliminates gaps, crevices, and potential contamination points.
Once welded in place, the cap completely seals the pipe end, preventing:
Fluid or gas leakage
Entry of contaminants, dust, or debris
Pressure loss in the piping system
The result is a permanent, hygienic, and pressure-tight seal that maintains the integrity of the entire piping system throughout its service life.
3A, CE & ISO 9001 Certified – Our 16W Weld Cap meets the highest international quality and safety standards, giving you complete confidence in every product
Premium Materials – We use only high-grade 304 and 316L stainless steel with full material traceability
Rigorous Quality Control – Every weld cap undergoes strict inspection and testing to ensure dimensional accuracy and performance reliability
Complete Documentation – We provide material test reports, certification documents, and full traceability records with every order
Expert Manufacturing – With years of experience in sanitary fitting production, we deliver precision-engineered products that meet the most demanding specifications
Global Compliance – Our products are manufactured in compliance with ASME, DIN, and ISO standards
