Feature | Benefit |
|---|---|
90° Long Radius Design (1.5D) | Minimizes pressure drop and reduces fluid turbulence for optimal flow efficiency |
Integrated Tangent Ends | Provides extra welding clearance for precise, secure butt-weld connections in tight spaces |
304 / 316L Stainless Steel Construction | Delivers superior corrosion resistance and long service life in aggressive environments |
32Ra Polished Surface Finish | Ensures smooth, crevice-free surfaces that resist bacterial growth and simplify cleaning |
3A, CE & ISO 9001 Certified | Guarantees compliance with global sanitary and quality standards |
Butt-Weld Connection | Creates a permanent, flush, leak-proof joint ideal for CIP systems |

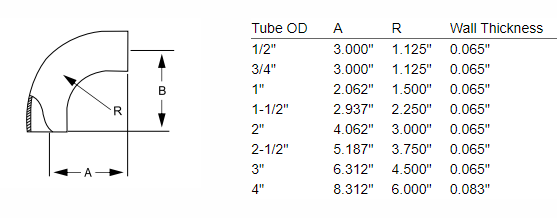

Available Sizes: 1/2" – 4" OD | Fits a wide range of piping system requirements |

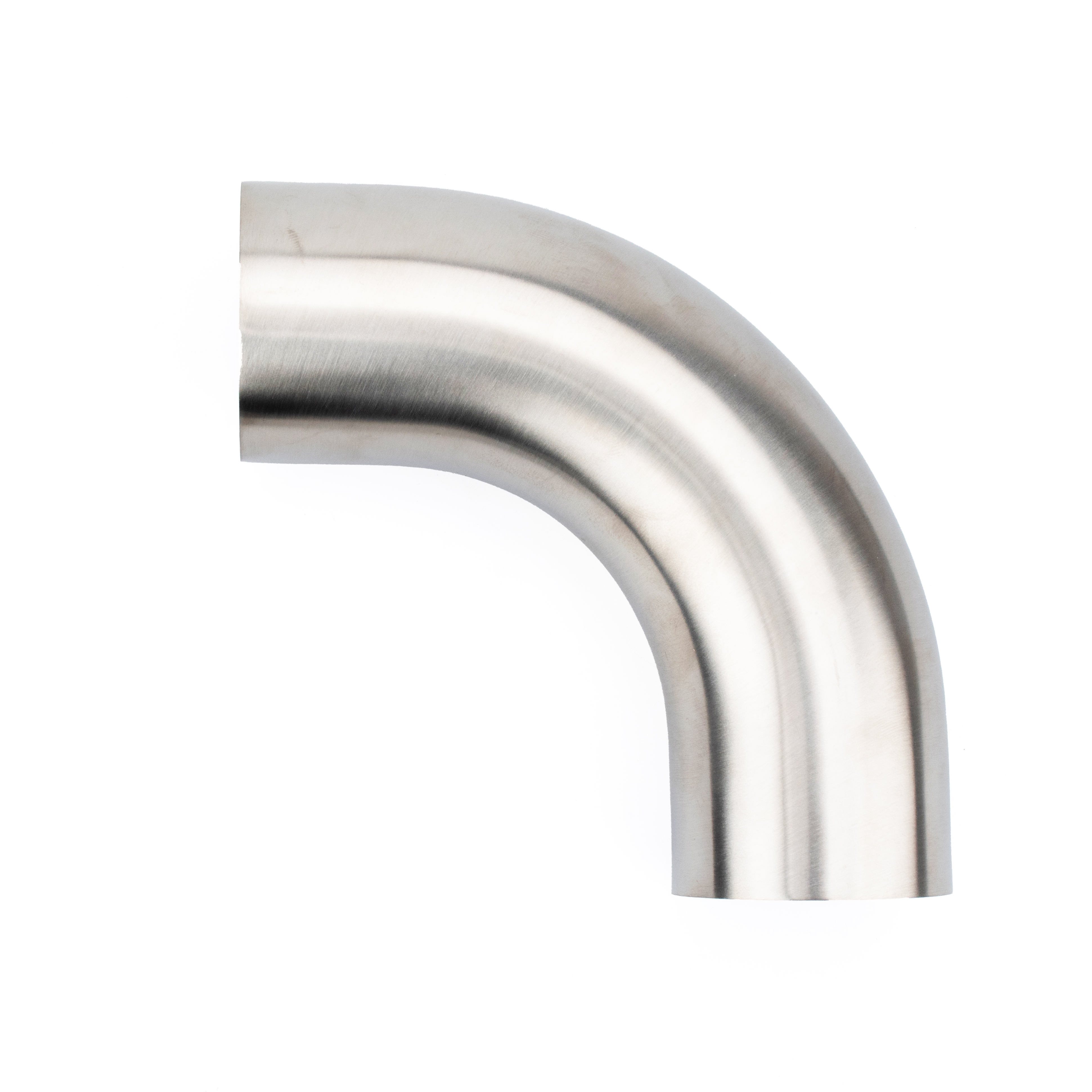

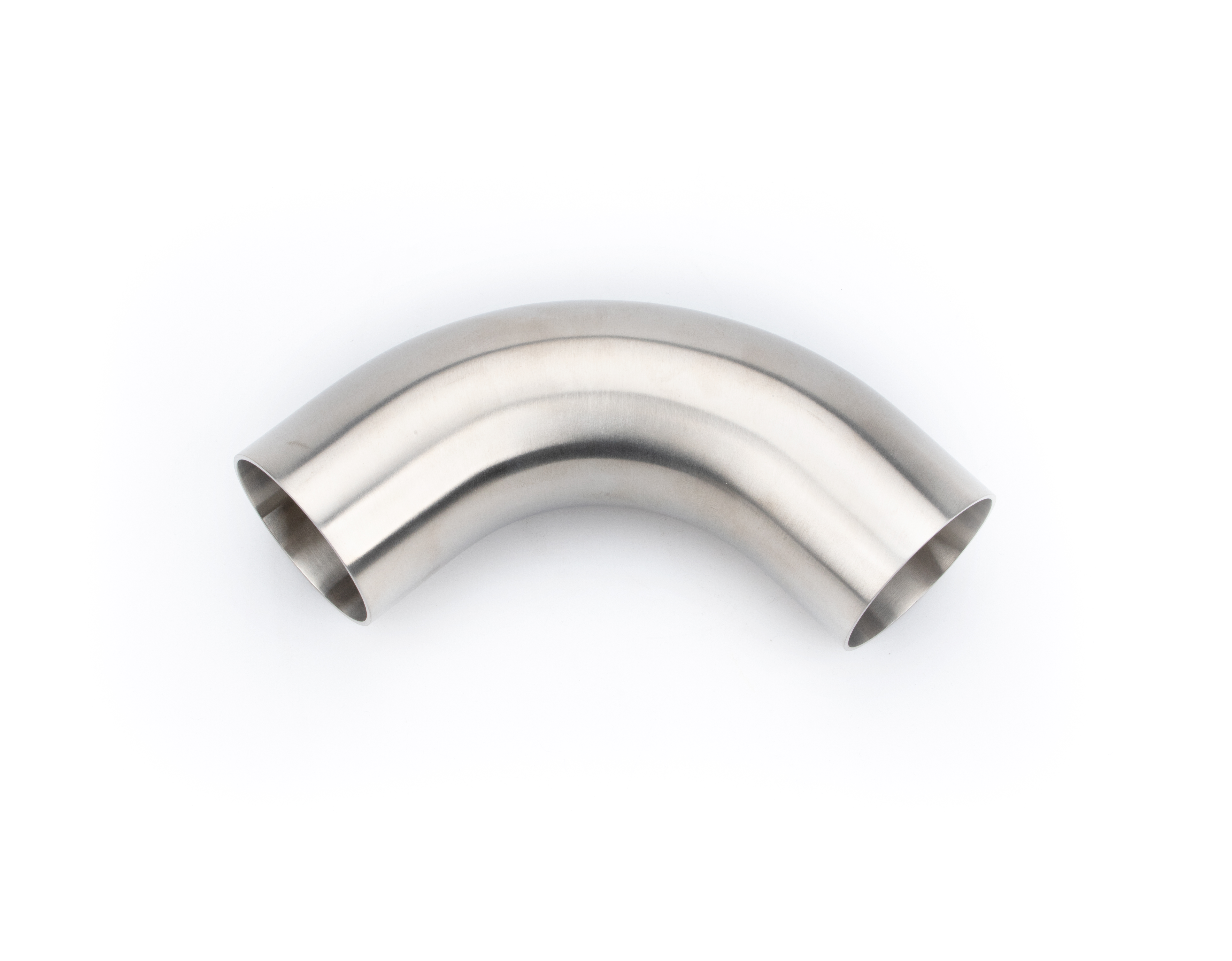

The L2S 90D Long Weld Elbow is permanently installed into a piping system via butt-welding at both ends-. The fitting changes the direction of fluid flow by 90 degrees with a centerline radius precisely equal to 1.5 times the nominal pipe diameter (1.5D).
The integrated tangent sections – straight extensions on both ends of the elbow – serve a critical purpose: they provide additional straight length that allows welders to position welding equipment properly and achieve full-penetration, high-integrity welds. This is especially valuable in sanitary and high-purity applications where weld quality directly impacts system cleanliness and reliability.

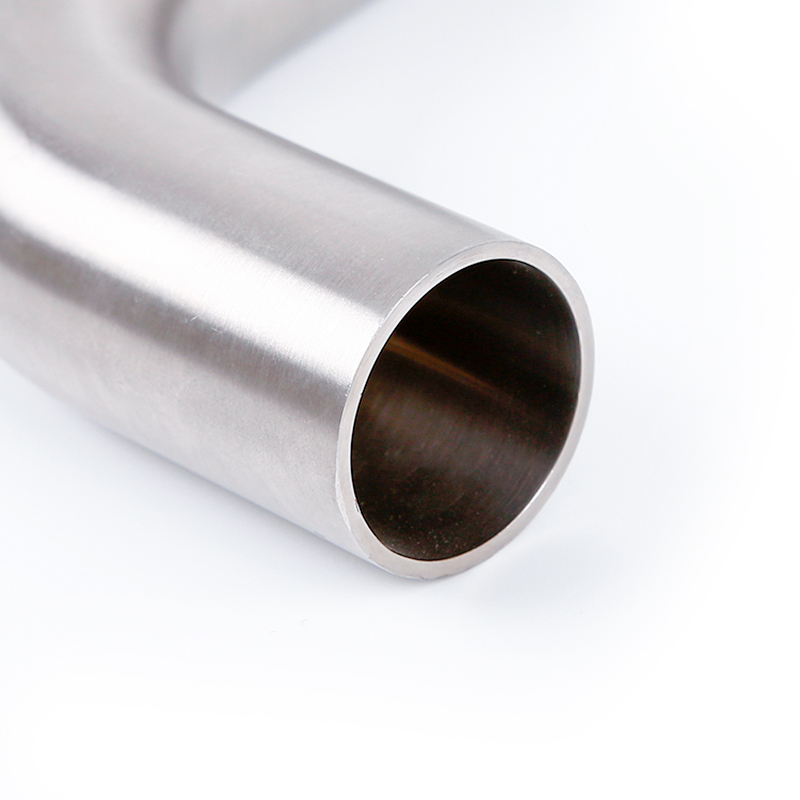

Once welded, the fitting becomes a permanent, seamless part of the pipeline-. The smooth, polished interior surface (32Ra or better) ensures unobstructed flow, minimizes pressure drop, and prevents product entrapment – making it ideal for CIP (Clean-In-Place) systems where regular cleaning is essential.
3A Sanitary Standards Certified – Our L2S elbows are manufactured in full compliance with 3-A Sanitary Standards for Sanitary Fittings, ensuring they meet the rigorous hygiene requirements of the food, dairy, and beverage industries.
CE Certified – All products carry the CE mark, demonstrating conformity with European health, safety, and environmental protection standards.
ISO 9001:2015 Certified – Our quality management system is ISO 9001 certified, guaranteeing consistent product quality, traceability, and continuous improvement.
Premium Material Selection – We use only high-grade 304 and 316L stainless steel, offering exceptional corrosion resistance and long-term durability.
Precision Manufacturing – Each fitting is manufactured to exact dimensional tolerances, ensuring perfect fit and alignment in your piping system.
