3-Piece Encapsulated Construction – Minimizes contamination risk while simplifying maintenance and allowing easy access to all internal components
Full Port Design – Matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow

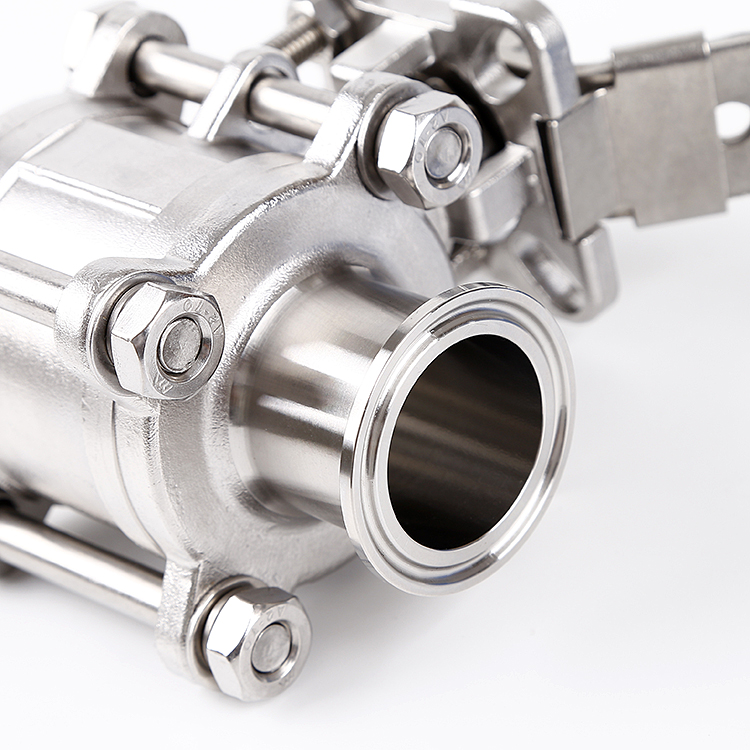

Tri-Clamp End Connections – Enables quick installation, secure sealing, and easy disassembly for cleaning
Precision Stainless Steel Ball – Reduces torque and friction losses while extending seat life
Balanced Encapsulated Construction – Minimizes cold flow of seats for consistent long-term performance
Live-Loaded Stem Packing – Maintains consistent seal compression and prevents leakage
Blow-Out Proof Stem Design – Standard internal entry design ensures operational safety
Lockable Handle – Prevents accidental actuation and enhances process safety

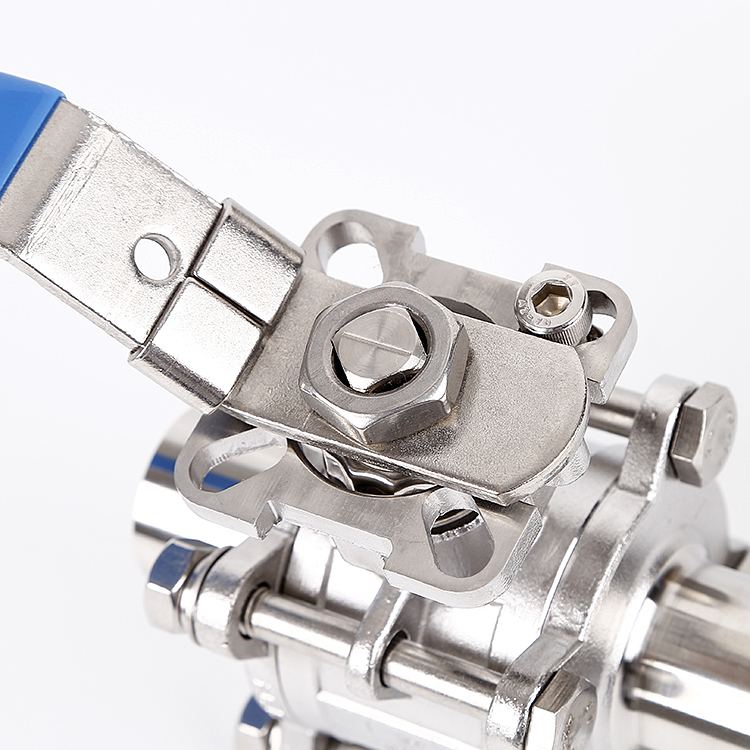

Integral ISO 5211 Mounting Pad – Allows easy installation of pneumatic or electric actuators for automation upgrade
High-Grade Materials – CF8M (316L) stainless steel body with Ra 32 internal finish for superior cleanability
Superior Hygiene – Encapsulated design eliminates crevices and dead spaces where bacteria can accumulate, ensuring contamination-free flow
Minimal Pressure Drop – Full port design allows unrestricted flow with zero flow restriction, ideal for viscous or particulate-laden liquids
Easy Maintenance – 3-piece construction enables quick disassembly, inspection, and parts replacement without removing the valve from the pipeline
Versatile Application – Suitable for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) operations
Durable & Reliable – Precision-machined components and high-quality materials ensure long service life and consistent performance
Upgrade-Ready – ISO 5211 mounting pad allows seamless integration with actuators for automated control
The Mod.SIG/22 operates on a simple quarter-turn mechanism. A precision-machined spherical ball with a through-bore is positioned inside the valve body between two PTFE seats-. When the stainless steel lever handle is rotated 90 degrees, the ball rotates within the encapsulated housing:
Open Position – The bore aligns with the pipeline, allowing full, unrestricted flow of media
Closed Position – The solid face of the ball blocks the flow path, creating a bubble-tight seal
The encapsulated design isolates the process fluid from external contaminants while the live-loaded stem packing maintains consistent seal compression, ensuring reliable shutoff even under varying temperature and pressure conditions.
Decades of Manufacturing Excellence – With over 10 years of specialized experience in sanitary valve production, we understand the unique demands of hygienic processing industries
Premium Material Quality – All valves are crafted from high-grade stainless steel with precision-machined components for superior durability and performance
Strict Quality Control – Every valve undergoes 100% inspection and testing before shipment to ensure reliability and performance
Customization Options – We offer flexible customization including various end connections, seat materials, and actuator configurations to meet specific process requirements
Competitive Pricing – Direct factory pricing without compromising on quality
Global Shipping – Efficient logistics network ensures timely delivery worldwide
Dedicated Technical Support – Our experienced team provides comprehensive pre-sales and after-sales technical assistance
Q: What industries is the Mod.SIG/22 suitable for?
A: The Mod.SIG/22 is ideal for food processing, beverage production, dairy, pharmaceutical, cosmetic, chemical, and biopharmaceutical industries where hygiene and contamination control are critical.
Q: What materials are used in the construction?
A: The valve features a CF8M (316L) stainless steel body with FDA-compliant PTFE seats. Other seat material options including EPDM, Silicone, and Viton (FPM) are available upon request.
Q: What are the pressure and temperature ratings?

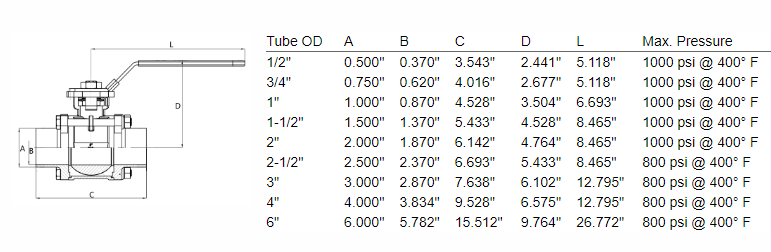

A: Pressure ratings are 1,000 PSI WOG for sizes 1/2" to 2", and 800 PSI WOG for 2-1/2" to 4". Standard temperature range is 14°F ~ 248°F (-10°C ~ 120°C) with higher temperature options available.
Q: What end connections are available?
A: Standard is Tri-Clamp / Tri-Clamp connections. Other options include butt-welded, threaded, flanged, and I-line connections upon request.
Q: Can this valve be automated?
A: Yes. The integral ISO 5211 mounting pad allows easy installation of pneumatic or electric actuators.
Q: Is the valve suitable for CIP/SIP operations?
A: Yes. The full-port encapsulated design with highly polished internal surfaces meets CIP and SIP sterilization and cleaning requirements.
Q: How is the valve maintained?
A: The 3-piece construction allows quick disassembly for inspection, cleaning, and parts replacement without removing the valve body from the pipeline.
Q: What is the internal surface finish?
A: Standard internal finish is Ra 32µin (0.8µm), with Ra 16µin (0.4µm) available upon request
