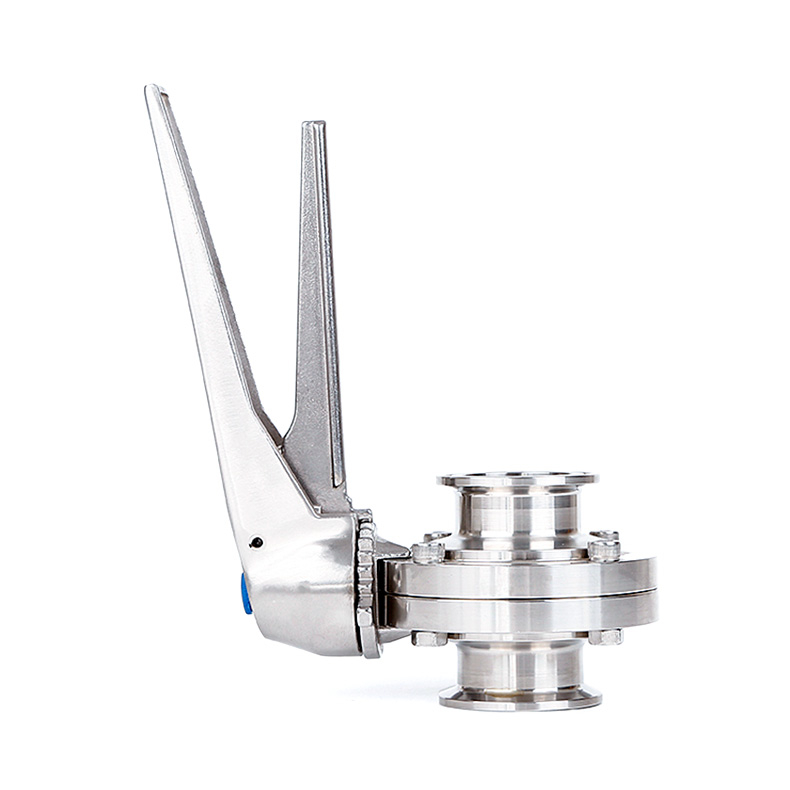

Sanitary Manual Butterfly Valve Mod.SIG/19

Key Features

• 90° Quick Operation – Disc rotates 90° from fully open to fully closed, enabling rapid shut-off or flow regulation

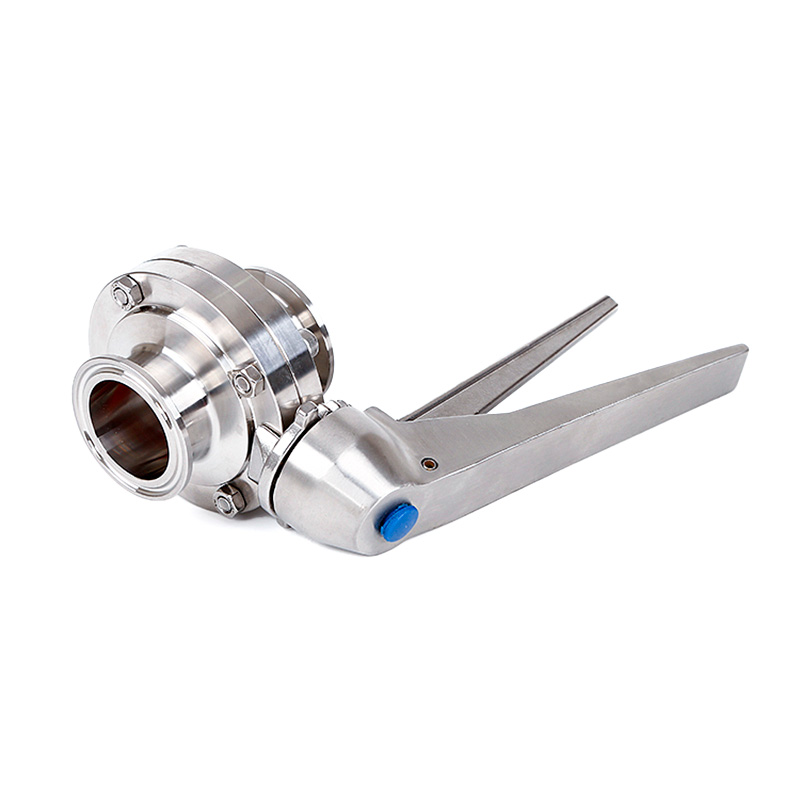

• 12-Position Lever Handle – Stainless steel multi-position handle allows precise flow control with clear position indication

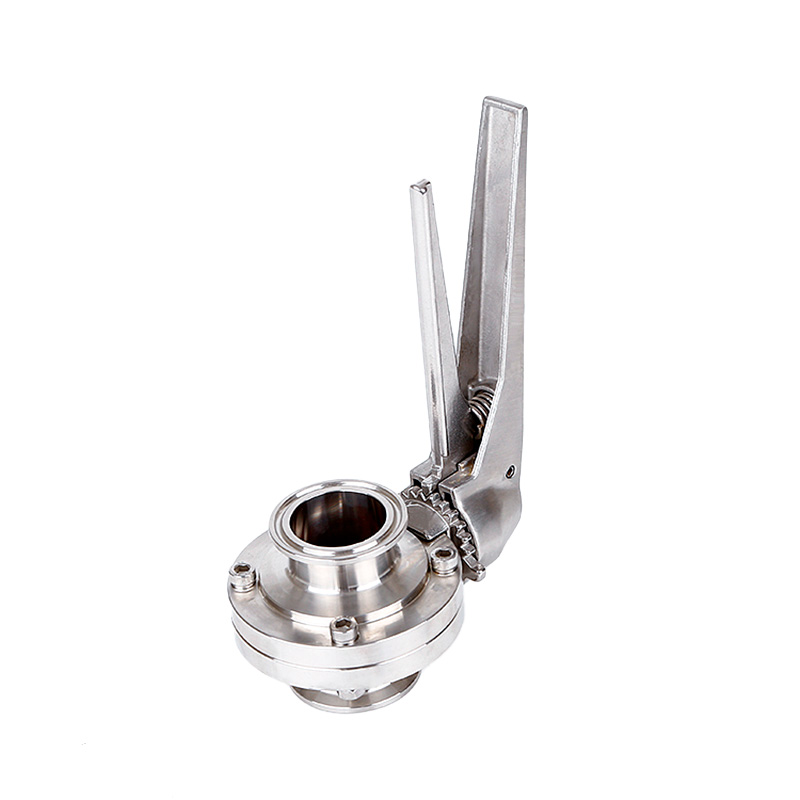

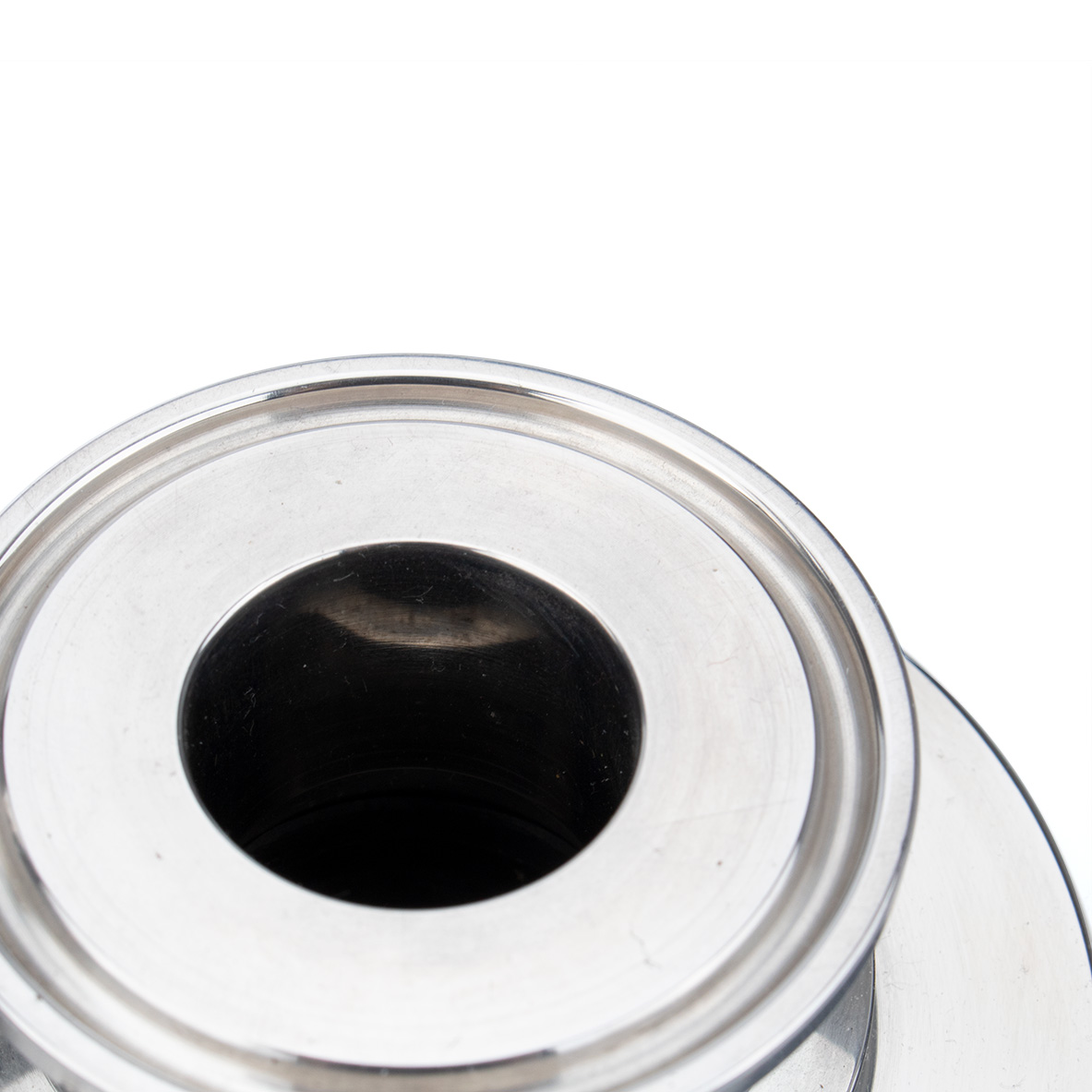

• Tri-Clamp End Connections – Tool-free assembly and disassembly with standard tri-clamp fittings for easy installation and maintenance

• Hygienic Crevice-Free Design – Smooth surface finish (Ra 0.4 – 0.8 μm) minimizes bacterial growth and ensures sanitary integrity

• Multiple Seat Material Options – Available in EPDM, Silicone (VMQ), or Viton (FPM) to suit different process media and temperature requirements

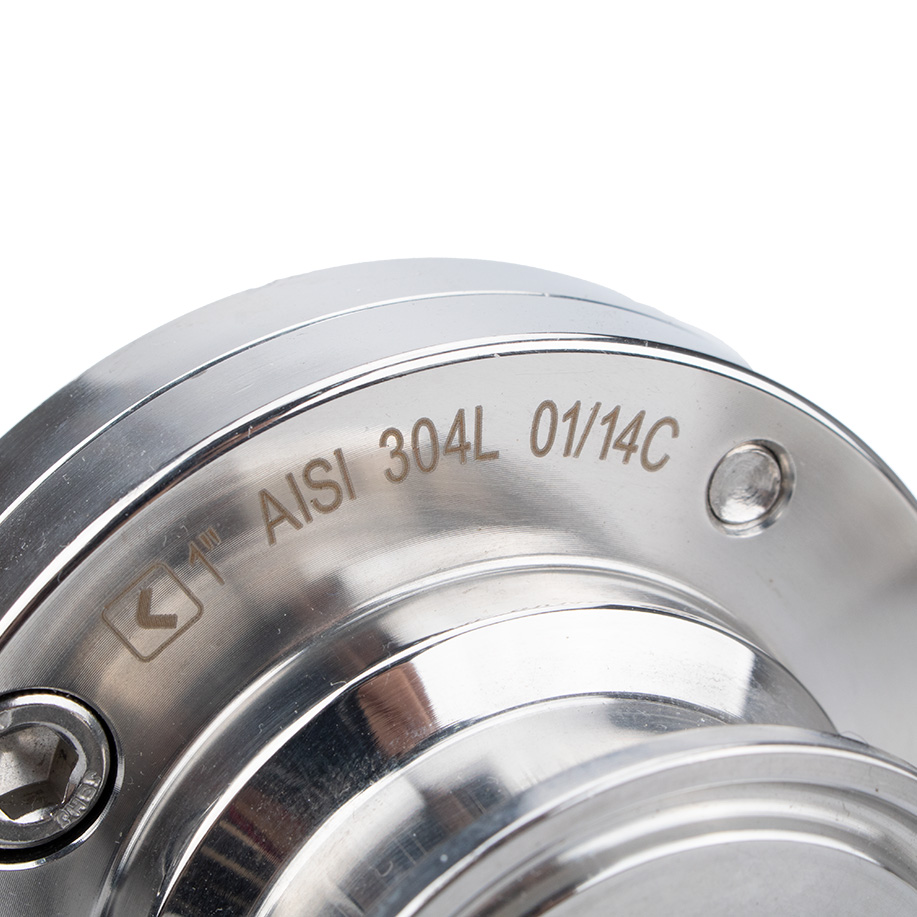

• High Corrosion Resistance – Constructed from 304 or 316L stainless steel for exceptional durability in demanding environments

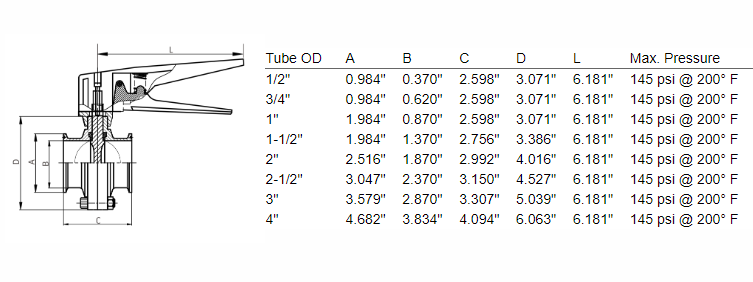

• Wide Size Range – Available from 1/2" to 8" (DN10 – DN200) to suit diverse system requirements

• CIP/SIP Compatible – Designed to support Clean-In-Place and Sterilize-In-Place procedures

Key Advantages

• Simple & Intuitive Operation – Lever handle provides tool-free, straightforward control – ideal for operators at all skill levels

• Low Pressure Drop – Compact disc design ensures low fluid resistance and minimal pressure loss, maintaining system efficiency

• Compact & Lightweight – Space-saving design reduces installation footprint and overall system weight

• Excellent Sealing at Low Pressures – Maintains reliable sealing performance even under low-pressure conditions

• Versatile Applications – Suitable for food processing, beverage production, dairy, pharmaceutical, biotech, and cosmetics industries-

• Easy Maintenance – Tri-clamp design enables rapid disassembly for cleaning, inspection, and seal replacement-

• Interchangeable Design – Standard tri-clamp configuration ensures compatibility with existing sanitary piping systems

• Long Service Life – Premium stainless steel construction and quality seals ensure superior durability under repeated sanitization cycles

How It Works

The Sanitary Manual Butterfly Valve Mod.SIG/19 operates on a simple yet highly effective principle:

1. Flow Control Mechanism – A disc (butterfly plate) is mounted on a rotating shaft within the valve body

2. Handle Operation – The stainless steel lever handle is turned to rotate the disc

3. 90° Rotation – Rotating the handle 90° moves the disc from fully closed (perpendicular to flow) to fully open (parallel to flow), or to any intermediate position for precise flow regulation

4. Position Locking – The 12-position handle allows the disc to be locked at multiple angles, providing repeatable, precise flow control

5. Sealing – The disc compresses against the seat (EPDM, Silicone, or Viton) to create a tight, leak-proof seal when closed

6. CIP/SIP Compatibility – The smooth, crevice-free design allows cleaning and sterilization fluids to flow through effectively, maintaining system cleanliness without disassembly

This design provides a reliable, hygienic, and user-friendly solution for flow control in sanitary processing systems.
