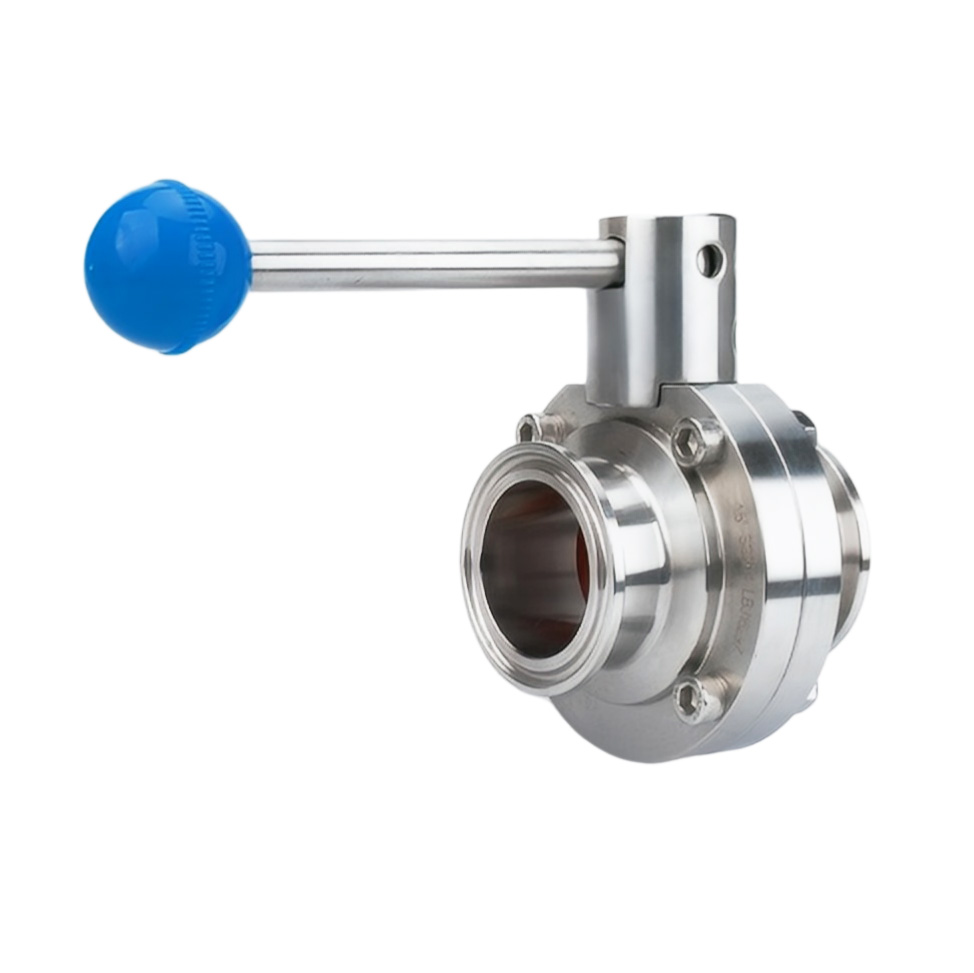

Sanitary Manual Butterfly Valve Clamp End Mod.SIG/16

Key Features

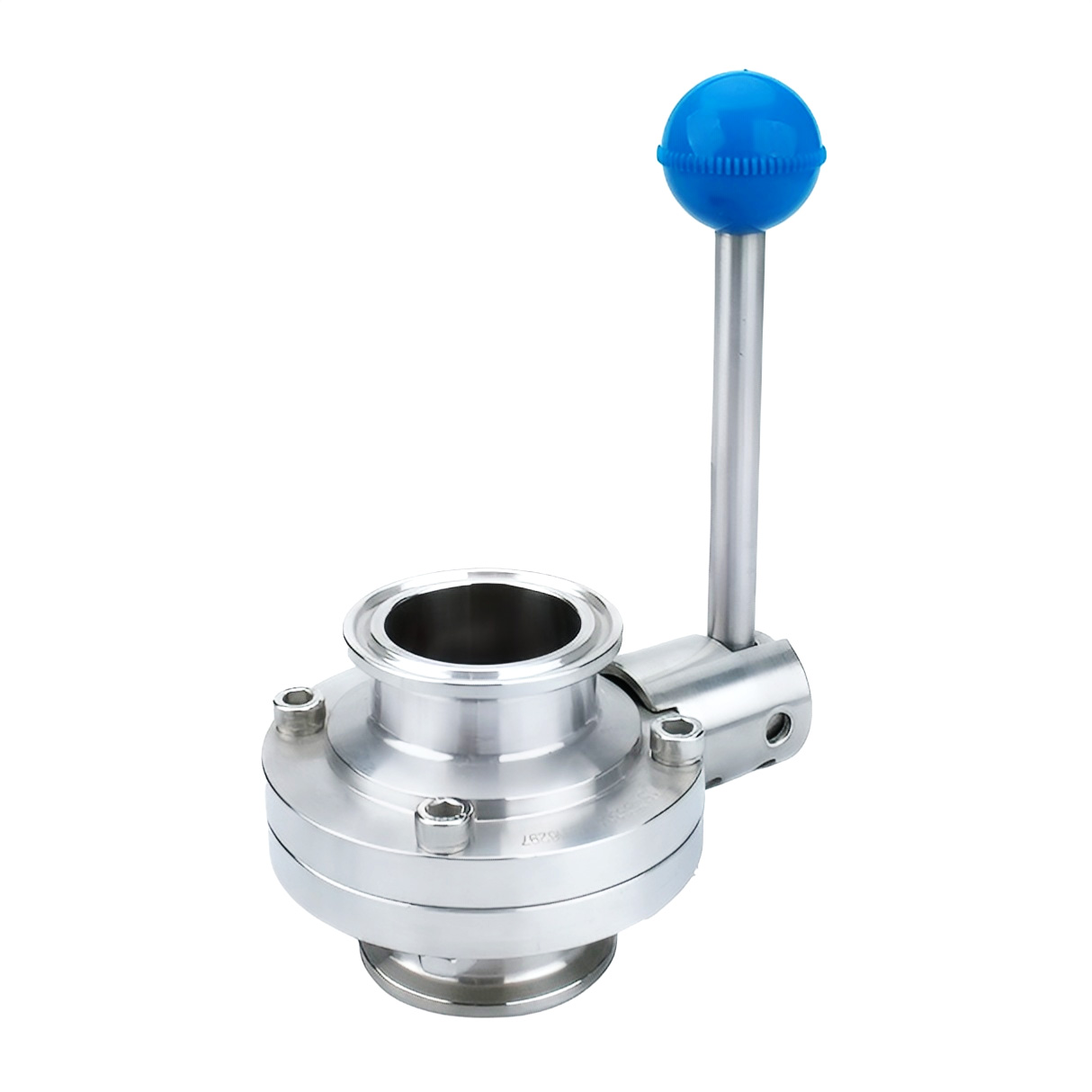

• Manual Operation with Stainless Steel Pull Handle – 12-position spring-loaded locking lever handle allows for precise flow control with secure positioning

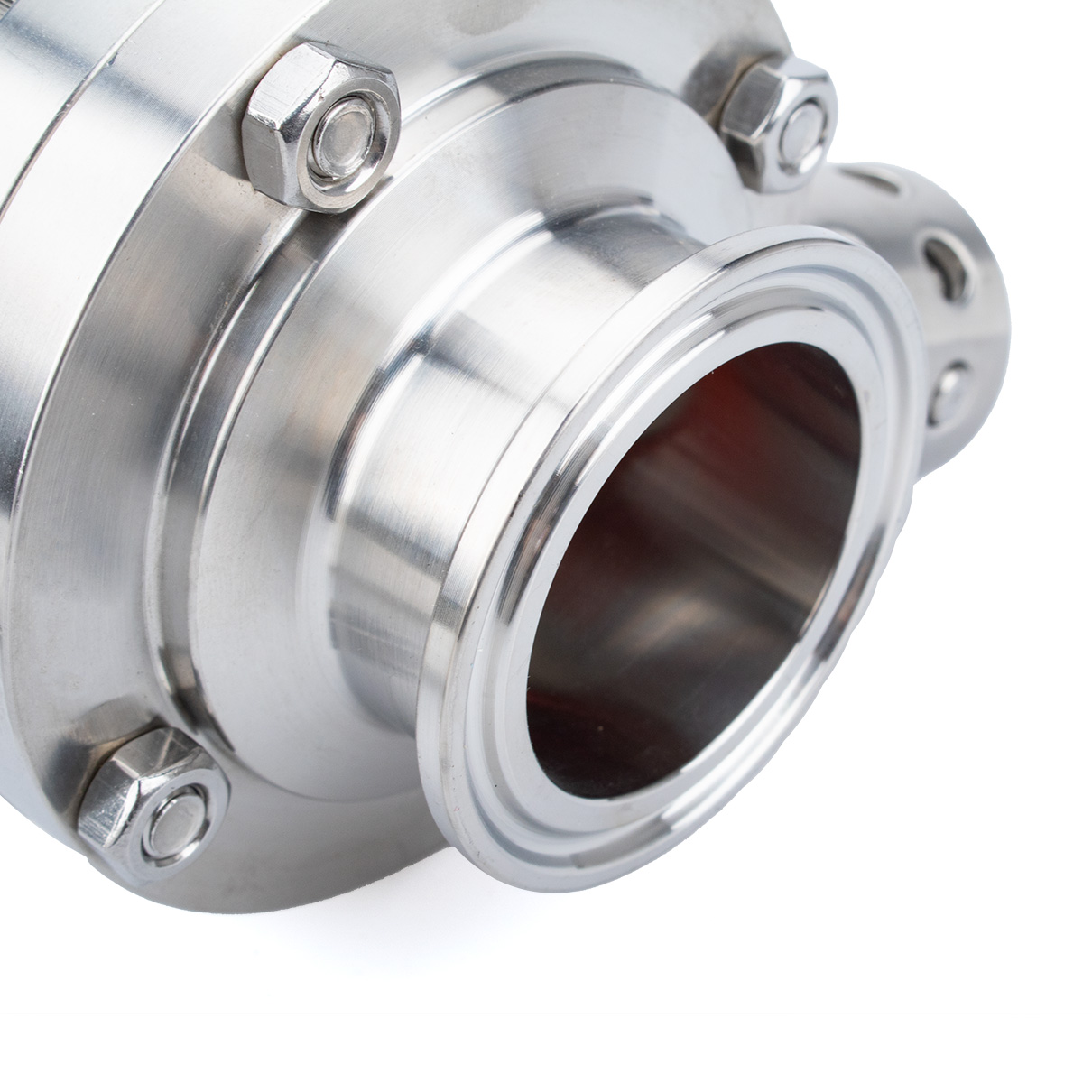

• Tri-Clamp / Clamp End Connections – Standard tri-clamp ends enable tool-free installation and disassembly for easy maintenance and cleaning

• Hygienic Sanitary Finish – All wetted surfaces are finished to ≤ 32Ra, with a mirror-finished disc that provides even flow and prevents obstructions

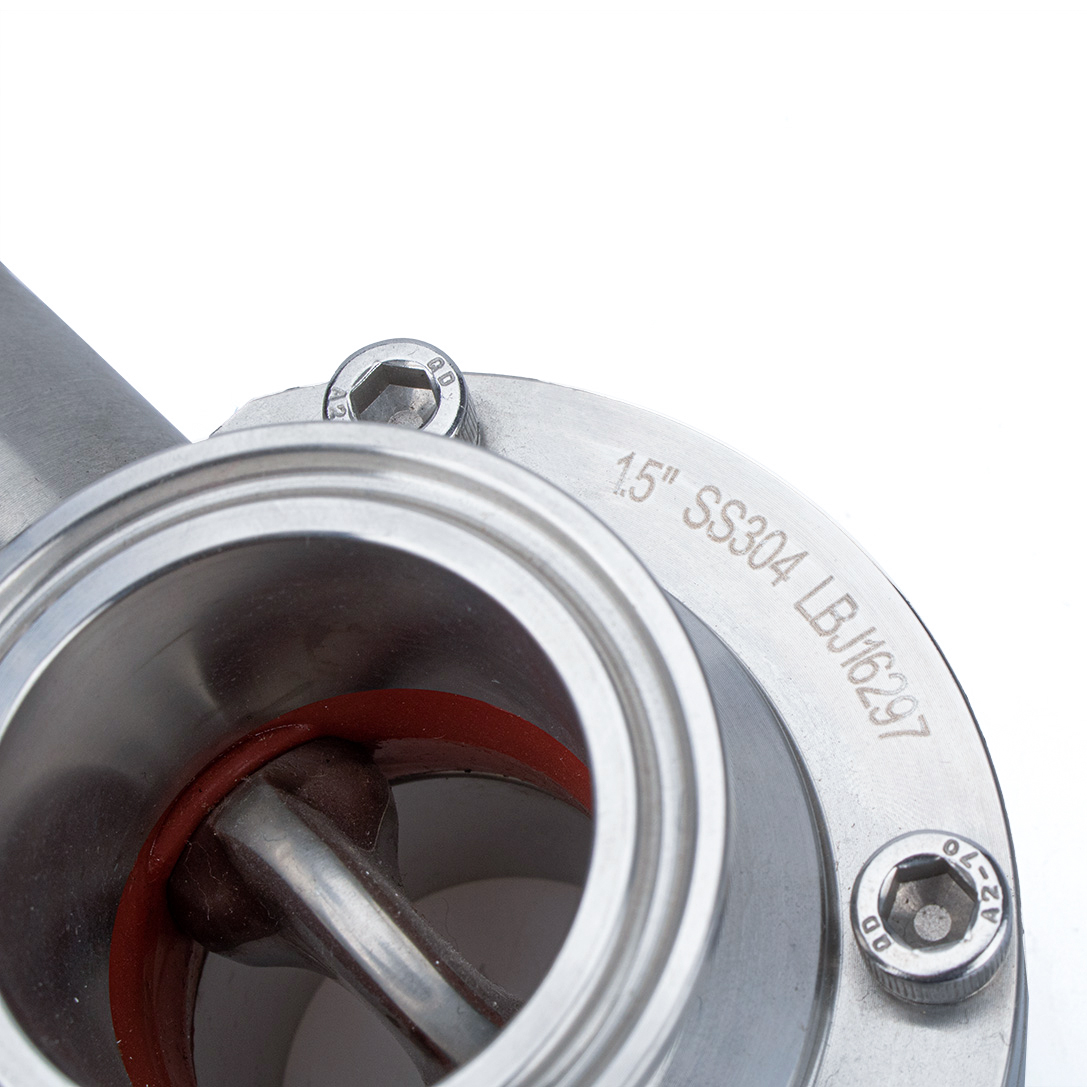

• High-Quality Stainless Steel Construction – Available in 304 and 316L stainless steel for superior corrosion resistance and durability

• FDA-Approved Seal Options – Available with Silicone, EPDM, and Viton seals, all FDA-approved for food and pharmaceutical contact

• Opposing Body Bolt Design – Prevents loosening between body sections due to vibration and operation, ensuring positive sealing

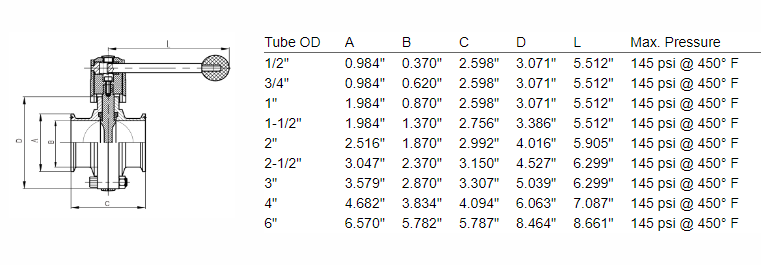

• Wide Size Range – Available from 1/2" to 12" (DN10 - DN300) to suit diverse system requirements-

• Actuator Interchangeable – Manual handle, pneumatic actuator, and electric actuator are interchangeable for future automation

• 100% Tested – Every valve undergoes full testing and inspection before shipment

Key Advantages

• Versatile Flow Control – The 12-position locking handle provides precise throttling and shut-off capability for process optimization

• Superior Hygiene – Sanitary finish (≤ 32Ra) and mirror-polished disc minimize bacterial growth and ensure product purity

• Easy Installation & Maintenance – Tri-clamp ends enable rapid installation and disassembly without special tools, reducing downtime

• Long Service Life – Premium stainless steel construction and FDA-approved seals ensure exceptional durability under repeated CIP/SIP cycles

• Flexible Automation Ready – Interchangeable actuator design allows easy upgrade from manual to pneumatic or electric operation

• Leak-Proof Reliability – Opposing body bolt design and positive sealing ensure secure, vibration-resistant performance

• Versatile Applications – Suitable for food processing, beverage production, dairy, pharmaceutical, biotech, cosmetics, and chemical industries

• Multiple Seal Options – Choice of Silicone, EPDM, or Viton seals to match specific process media and temperature requirements

How It Works

The SIG/16 Sanitary Manual Butterfly Valve operates on a simple yet highly effective quarter-turn principle:

1. Flow Control – A stainless steel disc is positioned within the valve body, rotating on a central stem to regulate flow

2. Handle Operation – The stainless steel pull handle rotates the disc 90 degrees from fully open to fully closed

3. Position Locking – The 12-position spring-loaded locking mechanism allows the handle to be securely locked at any position for precise throttling

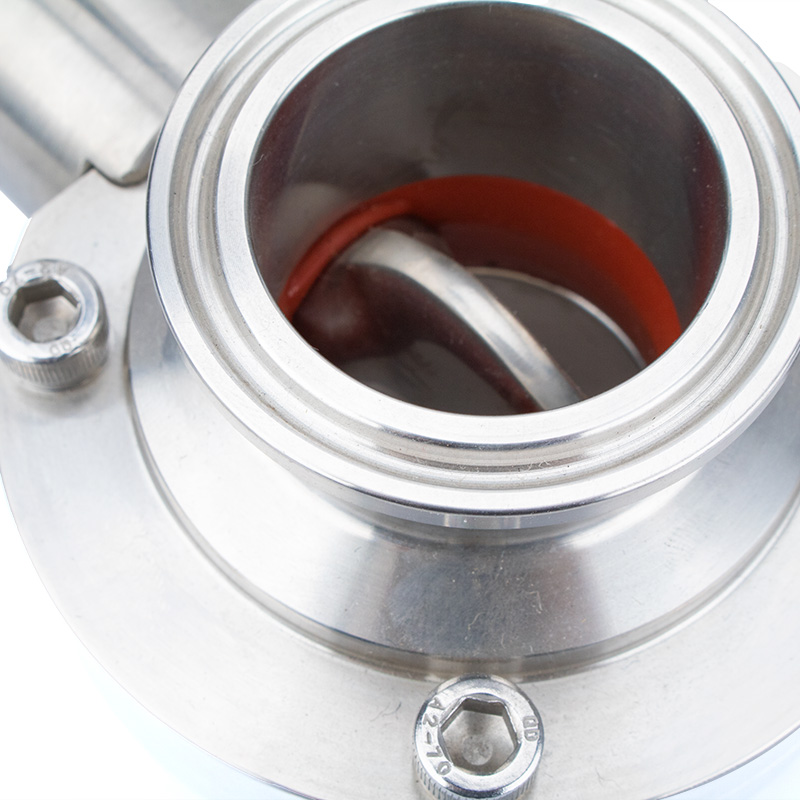

4. Sealing – When closed, the disc compresses against the FDA-approved elastomer seal (EPDM, Silicone, or Viton), creating a bubble-tight shut-off

5. Connection – Tri-clamp ends connect to mating ferrules with a sanitary gasket and clamp, creating a hygienic, leak-proof seal

6. Cleanability – The smooth, crevice-free design and sanitary finish support CIP (Clean-In-Place) and SIP (Sterilize-In-Place) procedures without disassembly

This design provides reliable, hygienic flow control with the flexibility of manual operation and the option for future automation.

Why Choose Us

• Certified Quality – All our SIG/16 Sanitary Manual Butterfly Valves are 3A Sanitary Standards certified, meeting the highest industry requirements for dairy and food processing equipment-. We also hold CE certification and ISO 9001 quality management system certification, ensuring consistent product excellence

• Premium Materials – We use only high-grade 304 and 316L stainless steel with mirror-finished discs for superior corrosion resistance, hygiene, and flow performance

• Superior Surface Finish – All wetted surfaces are finished to ≤ 32Ra, exceeding industry standards for sanitary applications

• FDA-Approved Seals – We offer Silicone, EPDM, and Viton seals, all FDA-approved for food and pharmaceutical contact

• Stringent Quality Control – Every valve undergoes 100% testing and inspection to ensure dimensional accuracy, sealing performance, and operational reliability

• Extensive Size Range – From 1/2" to 6", we offer a full range to meet your specific system requirements-

• Flexible Actuation Options – Manual handle, pneumatic actuator, and electric actuator are fully interchangeable, allowing easy future upgrades

• Competitive Pricing – Direct manufacturing capabilities allow us to offer factory-direct pricing without compromising quality

• Expert Support – Our team of sanitary valve specialists provides technical guidance on valve selection, seal material, and system integration

• Reliable Supply Chain – Consistent inventory and fast shipping ensure your projects and production lines stay on schedule
