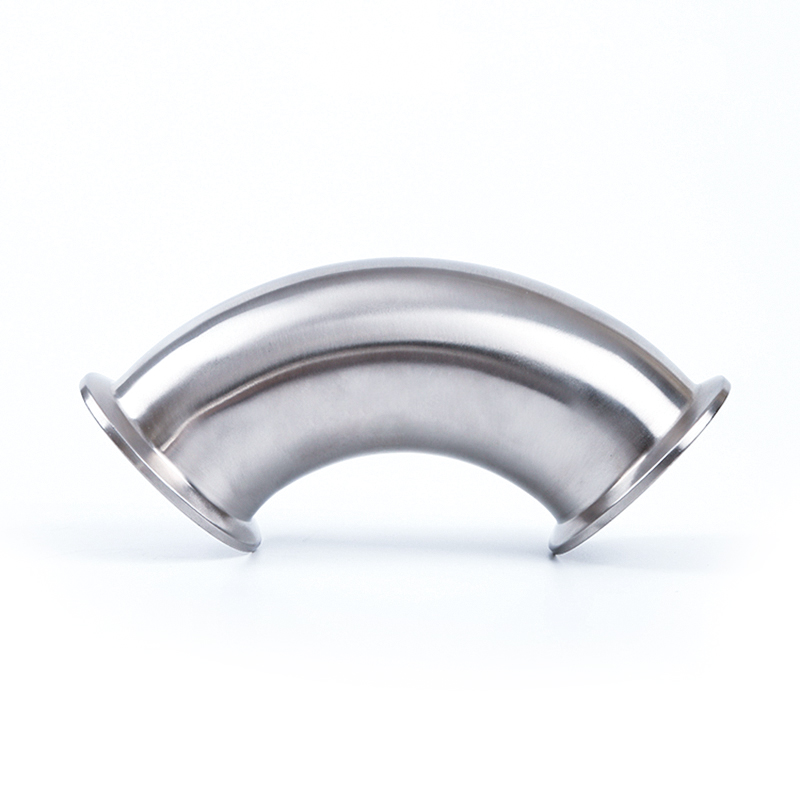

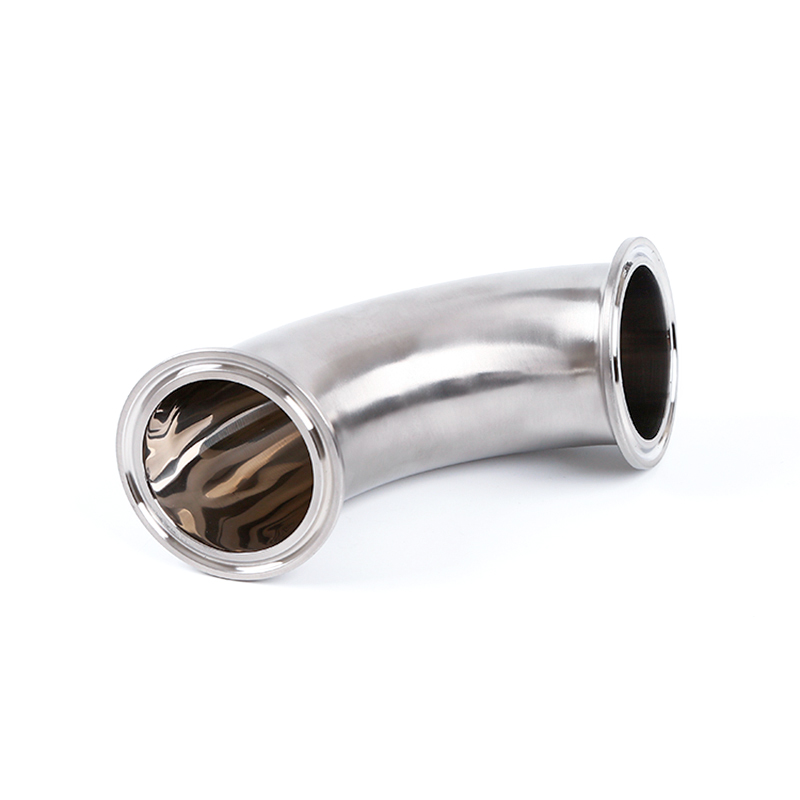

90° Flow Direction Change – Efficiently redirects fluid flow at a right angle, essential for navigating around obstacles and optimizing system layouts
Tri-Clamp / Quick-Clamp Connection – Clamp ends on both ends enable tool-free assembly and disassembly for rapid line access
Hygienic Crevice-Free Design – Smooth interior surface minimizes bacterial growth and ensures sanitary integrity
High Corrosion Resistance – Constructed from premium stainless steel for long-lasting durability in demanding environments
High Pressure Rating – Maximum operating pressure of 250 psi at 70°F ambient temperature

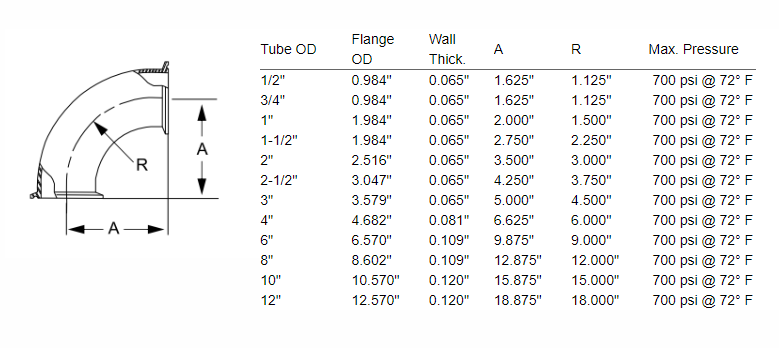

Wide Size Range – Available from 1/2" to 12" tube OD sizes to suit diverse system requirements
Non-Permanent Seal with Take-Down Access – Enables easy disassembly for cleaning, maintenance, and inspection
Time-Saving Installation – Quick-clamp design eliminates the need for welding or threading, dramatically reducing installation time
Easy Maintenance – Tool-free disassembly allows for rapid CIP (Clean-In-Place) and SIP (Sterilize-In-Place) procedures
Versatile Applications – Suitable for food processing, beverage production, pharmaceutical manufacturing, biotech, dairy, cosmetics, and semiconductor industries
Long Service Life – Stainless steel construction with 3A certification ensures superior durability and performance under repeated sanitization cycles
Leak-Proof Reliability – When combined with a compatible gasket and clamp, creates a secure, dependable seal
Interchangeable Design – Standard tri-clamp configuration ensures compatibility with existing sanitary piping systems
The 2CMP 90 Degree Clamp Elbow operates on a simple yet highly effective principle:
Connection – The fitting features clamp ends (ferrules) on both ends that align with corresponding ferrules on pipes or other fittings
Sealing – A sanitary gasket is placed between the two ferrule faces, creating a hygienic, crevice-free seal
Securing – A tri-clamp is tightened over the ferrule ends, compressing the gasket to form a leak-proof, pressure-tight connection
Flow Redirection – The 90° elbow body smoothly redirects fluid flow at a right angle, enabling efficient system layout and space optimization
Quick Access – Simply loosening the clamp allows for instant disassembly for cleaning, inspection, or process changes
This design provides a non-permanent yet highly reliable seal, combining the security of a permanent connection with the flexibility of a removable fitting.
Certified Quality – All our 2CMP 90 Degree Clamp Elbows are 3A Sanitary Standards certified, meeting the highest standards for sanitary fittings. We also hold CE certification and ISO 9001 quality management system certification, ensuring consistent product excellence.
Premium Materials – We use only high-grade 304 and 316L stainless steel, offering exceptional corrosion resistance and longevity
Stringent Quality Control – Every fitting undergoes rigorous inspection to ensure dimensional accuracy, surface finish quality, and performance reliability
Extensive Size Range – From 1/2" to 12" , we offer the full spectrum of sizes to meet your specific requirements
Competitive Pricing – Direct manufacturing capabilities allow us to offer factory-direct pricing without compromising quality
