Valve failure in severe service environments carries massive operational and financial stakes. Unplanned downtime halts production lines instantly, while safety hazards put site personnel at severe risk. Environmental containment breaches lead to catastrophic ecological damage and strict regulatory penalties. Standard, off-the-shelf valves simply cannot handle the extreme pressures, abrasive slurries, and corrosive media found in heavy industry. Their inherent design limitations become obvious when subjected to these harsh, unrelenting conditions.
You need a different approach to fluid control. Custom engineering shifts from a luxury to a strategic necessity. It moves the focus away from initial procurement and squarely onto long-term reliability. You achieve system optimization and uncompromised performance by designing equipment specifically for the application. Addressing the exact fluid dynamics, metallurgical requirements, and actuation needs of your process ensures continuous, safe operations in the most demanding industrial environments.
Standard valves often fail prematurely in severe service applications; custom engineering addresses specific flow, pressure, and metallurgical requirements without compromising overall system efficiency.
Evaluating custom industrial valves requires a strict focus on material science, regulatory compliance (API, ASME), and lifecycle cost analysis.
Partnering with a specialized valve manufacturer mitigates implementation risks through rigorous in-house prototyping, non-destructive testing, and comprehensive lifecycle support.
The transition from standard to custom solutions involves balancing upfront engineering lead times against significant reductions in long-term maintenance and operational downtime.

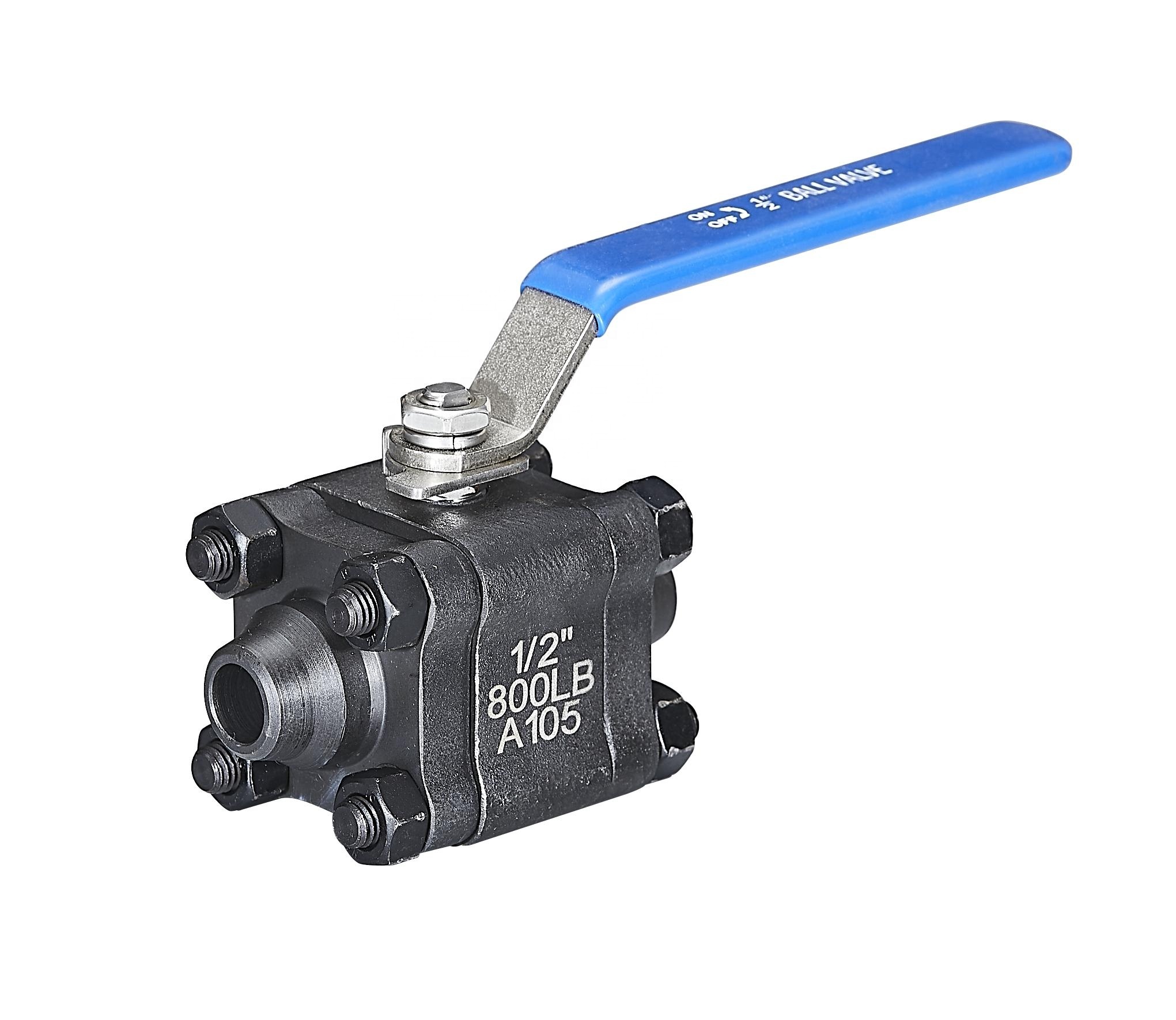

Standard oil and gas valves face severe vulnerabilities across the entire hydrocarbon value chain. Upstream extraction involves high-velocity sand, multiphase flow, and unpredictable pressure spikes that destroy standard seating surfaces in weeks. Wellhead choke valves take a massive beating from particulate erosion, requiring frequent trim replacements if not engineered correctly. Midstream transmission pipelines require absolute isolation over massive distances. A single passing valve in a compressor station compromises the entire network and forces unplanned blowdowns. You cannot rely on standard soft-seated ball valves when pipeline pigging operations introduce heavy debris and scale into the valve cavity.
Downstream refining exposes equipment to aggressive chemicals, extreme thermal cycling, and continuous operation demands. High-pressure/high-temperature (HPHT) environments push standard metallurgy past its yield point. Sour gas containing hydrogen sulfide (H2S) causes sulfide stress cracking and hydrogen embrittlement in standard carbon steels. Corrosive fluids rapidly degrade standard valve trim and elastomeric seals. This degradation leads to catastrophic blowouts, silent fugitive emissions, and severe safety incidents. Standard designs lack the specialized hard-facing and exotic alloys required to survive these continuous chemical and physical attacks.
Mineral processing, tailings management, and high-pressure acid leaching (HPAL) operations present unique, destructive challenges. Standard designs fail rapidly under these operational constraints. Highly abrasive slurries act like liquid sandpaper, scouring internal valve bodies and destroying flow control mechanisms. High-cycle actuation requirements mean the valve operates constantly, accelerating wear on stems, packing, and actuators. When you pump heavy copper or gold tailings, the particulate matter settles in the valve body cavities, preventing standard gate or ball valves from closing fully.
This combination leads to rapid erosion and severe cavitation in off-the-shelf mining valve solutions. Tailings lines choke with settled solids if the internal valve geometry creates dead zones or flow restrictions. Autoclave operations combine high heat, extreme pressure, and heavy acid concentrations. These conditions destroy standard stainless steel components in a matter of days. You must utilize specialized geometries, heavy-duty polyurethane linings, and advanced ceramics to maintain process control in these abrasive environments.
Forcing standard valves into severe applications carries heavy hidden penalties. You face frequent, unpredictable replacements. Maintenance labor requirements skyrocket as technicians constantly rebuild failing equipment. Lost production during unplanned outages dwarfs any initial procurement savings. Degraded system efficiency forces pumps and compressors to work harder, wasting massive amounts of energy and accelerating wear on adjacent rotating equipment. When a standard valve leaks by the seat, you lose valuable product and risk contaminating downstream processes.
A viable alternative requires clear, measurable success criteria. You must achieve an extended mean time between failures (MTBF) to stabilize plant operations. The system needs precise flow control without hysteresis or deadband issues. Absolute environmental containment is mandatory to protect site personnel and surrounding ecosystems. Achieving these criteria demands moving away from catalog items and embracing engineered solutions tailored to your exact piping and instrumentation diagrams.
Engineering a valve from the ground up involves a highly collaborative development process. You move from initial concept and system design directly to final production. This approach solves complex process problems that standard catalogs ignore. Engineers analyze the specific piping and instrumentation diagrams (P&ID) to design a unit that matches the exact process parameters. Delivering reliable custom valve solutions requires understanding the precise fluid dynamics, pressure drops, and thermal conditions of your specific application. We look at the exact flow coefficient (Cv) required and build the valve body around that metric.
Specific applications require unique body geometries to fit tight piping footprints or accommodate non-standard flow paths. Proprietary internal designs handle multiphase flow without cavitating or creating excessive noise. Exact dimensional matching ensures the new unit drops perfectly into existing heavy-wall pipe systems without requiring costly pipe modifications. Bespoke fabrication allows for the integration of specialized purge ports, integral bypasses, and custom heating jackets directly into the valve body. You get a component that acts as a seamless extension of your piping network.
You do not always need full custom fabrication from raw forgings. Existing valve designs can undergo significant engineering modifications to drastically improve performance. Trim alterations change the inherent flow characteristic from linear to equal percentage, or add multi-stage pressure reduction capabilities. Specialized coatings protect against localized erosion and chemical attack. Custom end connections adapt standard bodies to non-standard piping configurations, allowing you to mate a new valve to legacy flange standards.
Evaluate the trade-offs carefully before proceeding. Modifying a standard valve saves engineering time and fits tighter project schedules. Commissioning a fully bespoke unit takes longer but offers a zero-compromise design optimized for a single specific task. Base your decision on project timelines, the severity of the process media, and the physical constraints of the installation site.
Live-Loaded Packing Upgrades: Adding Belleville springs to maintain constant pressure on stem packing, reducing fugitive emissions over thousands of cycles.
Trim Hard-Facing: Applying Stellite overlays to seating surfaces to prevent galling and physical wear under high-pressure drops.
Extended Bonnets: Modifying standard bonnets to isolate packing glands from extreme cryogenic or high-temperature media, preventing seal degradation.
Custom Porting: Machining V-port balls or specialized cage-guided trims for precise throttling control in modulating applications.
Fugitive Emission Upgrades: Retrofitting older valve bodies with modern graphite packing sets to meet current EPA leak detection and repair (LDAR) standards.
Actuation must match the process requirements exactly; a robust valve body is useless with an undersized or sluggish actuator. Custom pneumatic, hydraulic, and electric actuators provide specific torque curves tailored to the valve's seating and unseating requirements. Specialized solenoid valves ensure precise fail-safe requirements and exact cycle speeds. High-speed actuation is critical for emergency shutdown (ESD) valves, while slow, controlled actuation prevents water hammer in large-diameter pipelines.
Custom actuation solutions fit directly into broader fluid handling systems. They integrate seamlessly with Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC) to ensure operational synergy. Engineers configure smart positioners with partial stroke testing (PST) capabilities to verify valve health without interrupting the process flow. This level of integration prevents mismatch errors and guarantees the valve responds perfectly to control loop signals. You eliminate the guesswork from automated fluid control.
Material selection dictates valve survival in severe service. You must evaluate exotic alloys like Inconel, Monel, and Hastelloy for environments facing severe chemical attack and high-temperature oxidation. Duplex and super duplex stainless steels offer high mechanical strength and exceptional resistance to chloride stress corrosion cracking. Specialized hard-facing using Stellite or tungsten carbide protects seating surfaces from physical destruction, galling, and high-velocity particulate erosion. We rely on strict metallurgical standards to ensure the pressure boundary remains intact under extreme stress.
Map specific materials directly to their corresponding resistance profiles to ensure longevity. Using the wrong alloy leads to rapid galvanic corrosion or catastrophic brittle fracture under pressure. You must verify the Pitting Resistance Equivalent Number (PREN) when selecting materials for offshore or brine applications.
Material Category | Specific Alloys | Primary Resistance Profile | Typical Industrial Application |
|---|---|---|---|
Nickel Alloys | Inconel 625, Hastelloy C276 | High-temp oxidation, severe acids, sour gas | Upstream wellheads, downstream alkylation units |
Duplex Steels | Super Duplex 2507, 2205 | Chloride stress corrosion cracking, high yield strength | Offshore platforms, brine handling, desalination |
Hard-Facing & Coatings | Stellite 6, Tungsten Carbide | Severe physical erosion, galling, high-cycle wear | Mining slurries, catalyst handling, catalyst cracking |
Copper-Nickel Alloys | Monel 400 | Hydrofluoric acid, seawater corrosion | Marine environments, specific acid processing |
Advanced Ceramics | Zirconia, Silicon Carbide | Extreme abrasion, chemical inertness | High-pressure acid leaching, fine tailings |
Titanium Alloys | Grade 2, Grade 5 | Wet chlorine, severe oxidizing media | Chemical processing, hydrometallurgy |
Custom trim design mitigates severe fluid problems that destroy standard piping components. It prevents cavitation, stops flashing, and reduces excessive aerodynamic and hydrodynamic noise. When fluid pressure drops below its vapor pressure inside the valve, vapor bubbles form. As pressure recovers, these bubbles collapse with explosive force, tearing metal away from the valve body and trim. Custom multi-stage trims break the pressure drop into safe, manageable increments, eliminating cavitation entirely. You protect the downstream piping from severe vibration and fatigue failure.
Computational fluid dynamics (CFD) modeling plays a massive role during the design phase. Engineers use advanced CFD software to predict flow paths, identify high-velocity erosion zones, and optimize internal geometries. This preserves system efficiency and guarantees the design works under real-world conditions before casting the metal. Evaluating custom industrial valves requires reviewing these detailed CFD reports to verify the engineering logic. You want to see visual proof that the velocity profiles remain within safe limits across the entire throttling range.
Industry standards are non-negotiable for safety and operational legality. You must comply with API 6D for pipeline valves and API 6A for wellhead equipment. ASME B16.34 dictates strict pressure-temperature ratings and minimum wall thickness requirements. ISO 15848 sets the global baseline for fugitive emissions testing, ensuring hazardous volatile organic compounds (VOCs) do not escape into the atmosphere. NACE MR0175 compliance is mandatory for any equipment handling sour gas to prevent catastrophic sulfide stress cracking.
Rigorous testing protocols validate the engineering and manufacturing processes. Hydrostatic shell testing proves the structural integrity of the pressure boundary. High-pressure gas seat leakage tests confirm absolute isolation capabilities. Cryogenic and high-temperature validation testing ensures the valve operates smoothly at the extreme edges of its design envelope without binding or leaking.
Hydrostatic Testing: Pressurizing the valve body with water to 1.5 times its maximum rated working pressure to check for structural flaws.
Seat Leakage Testing: Utilizing high-pressure nitrogen or helium to verify the seal integrity across the closure member based on FCI 70-2 standards.
Fugitive Emissions Testing: Sniffing the packing gland area with helium mass spectrometers to ensure compliance with ISO 15848 or API 624.
Cryogenic Testing: Submerging the valve in liquid nitrogen to verify seat tightness and torque requirements at -196°C.
Fire Safe Testing: Exposing the valve to extreme fire conditions to verify it maintains pressure containment per API 607.
Evaluate the technical bench depth of your industrial valve supplier before initiating a project. They need advanced CAD/CAM capabilities to design complex geometries accurately. Finite element analysis (FEA) proves structural integrity under extreme mechanical and thermal loads. CFD capabilities are mandatory for analyzing severe service flow conditions. A supplier lacking these in-house tools cannot reliably engineer custom solutions. You need a partner who understands the physics of your process, not just a machine shop that cuts metal.
In-house prototyping and rapid iteration keep complex projects on track. Relying on third-party design firms introduces critical delays and communication breakdowns. A capable valve manufacturer handles the entire design loop internally. They utilize 3D printing for rapid physical modeling and possess dedicated testing loops to validate prototype flow characteristics before moving to full-scale production. This vertical integration ensures the final product matches the initial engineering intent perfectly.
Demand strict QA/QC documentation for every custom component. Material Test Reports (MTRs) trace the exact chemical composition and physical properties of the castings back to the original heat lot. Positive Material Identification (PMI) using handheld X-ray fluorescence (XRF) analyzers verifies that the correct alloys were used on the shop floor. Non-destructive testing (NDT) proves the castings have no internal voids, shrinkage, or surface cracks. You cannot afford hidden casting defects in high-pressure applications.
A vertically integrated manufacturing process maintains strict quality control. When the manufacturer controls the foundry operations, the precision machining, and the final assembly, quality remains consistent. Fragmented supply chains introduce unacceptable risks in severe service applications. You want a single point of accountability for the entire build process.
Radiographic Testing (RT): Utilizing X-rays to detect internal casting defects, porosity, and shrinkage.
Ultrasonic Testing (UT): Using high-frequency sound waves to measure wall thickness and detect subsurface anomalies in forgings.
Dye Penetrant Testing (PT): Applying visible or fluorescent dyes to detect microscopic surface-breaking defects on machined surfaces.
Magnetic Particle Testing (MT): Detecting surface and slightly subsurface flaws in ferromagnetic materials using magnetic fields.
Evaluate the supplier's capacity for full-service field support. Engineering a great valve is only half the battle; it must be installed correctly. The manufacturer should provide on-site installation guidance, torque specifications, and commissioning assistance to ensure proper integration with plant systems. Off-site repair capabilities and dedicated service centers are necessary for major overhauls and decontamination procedures. You need technicians who know how to handle exotic alloys and complex actuation systems.
Long-term maintenance contracts stabilize your plant operations. Spare parts management programs prevent inventory bloat while ensuring critical, long-lead-time components are always available. Predictive maintenance integrations, utilizing smart positioners and acoustic monitoring, allow you to track valve health in real-time and schedule maintenance before a catastrophic failure occurs. This proactive approach keeps your facility running at peak capacity.
Extended lead times are a harsh reality for bespoke engineering. Exotic material procurement takes months, as specialized foundries often have massive backlogs. Complex machining, custom hard-facing applications, and rigorous testing protocols add significant time to the production schedule. Failing to account for these timelines results in delayed plant turnarounds and massive lost production revenue. You must build realistic buffers into your project schedule.
Mitigate these scheduling risks through early supplier involvement. Bring the manufacturer into the design phase immediately, even before the final P&IDs are locked. Use phased delivery schedules to get critical path items on site first. Utilize modified standard valves as temporary interim solutions to keep the plant running safely while the fully bespoke custom unit is being manufactured. Clear communication regarding foundry schedules and machining capacity prevents unexpected delays.
Retrofit scenarios introduce heavy physical integration risks. You face dimensional mismatches between the new custom valve and the old piping flanges. Weight constraints on existing pipe supports cause structural issues if the new valve features a heavier, thicker body. Actuator compatibility problems prevent seamless connection to the plant's existing pneumatic supply or digital control network. A custom valve that does not fit the physical space is a costly paperweight.
Mandatory site audits prevent these costly installation disasters. Use 3D laser scanning prior to finalizing custom valve specifications. This technology creates a millimeter-accurate digital twin of the existing physical space. Engineers use this scan to guarantee the new valve, complete with its actuator and accessories, fits the existing footprint perfectly without clashing with adjacent structural steel or piping. You verify the face-to-face dimensions and flange ratings before cutting any metal.
Standard valves suffice for basic utility applications, but severe service environments demand specialized engineering. Operations in oil, gas, and mining require the precision, durability, and tailored metallurgy of custom valve solutions to prevent catastrophic failures and unplanned downtime. The ideal supplier must possess robust in-house engineering capabilities, stringent QA/QC testing protocols, full-service installation support, and a proven track record in your specific industrial sector.
Take the following actions to optimize your fluid control systems:
Audit your highest-failure valve applications to identify chronic problem areas and calculate the true cost of their downtime.
Compile detailed process data for these problem valves, including exact media composition, maximum pressure drops, and extreme temperature ranges.
Initiate a technical consultation with a qualified manufacturer to review CFD modeling options and advanced material selections.
Implement a 3D laser site scan for any planned retrofits to guarantee dimensional accuracy and eliminate installation clashes.
Establish a predictive maintenance schedule utilizing smart positioner data to monitor the health of your newly installed custom valves.
A: Lead times vary significantly based on design complexity. Simple modifications to existing standard valves take a few weeks. Fully bespoke designs requiring exotic cast materials, extensive CFD modeling, and specialized testing take several months. Early project integration and phased delivery schedules help manage these timelines effectively.
A: Custom units feature specific material selection tailored to the exact process media, preventing rapid corrosion. They utilize engineered trim designs to handle specific flow characteristics, preventing cavitation and flashing. They also strictly adhere to fugitive emission and high-pressure standards like API 6A and API 6D.
A: Abrasive slurries destroy standard metals rapidly. Custom mining valves utilize specialized polyurethanes, advanced structural ceramics, and high-chrome alloys. Engineers frequently apply tungsten carbide coatings to internal wear components and seating surfaces to resist severe physical erosion and high-cycle wear.
A: Modification is ideal for accelerated timelines and moderate budget constraints. If the process demands can be met by upgrading a standard valve body with custom trims, specialized protective coatings, or tailored actuation, modification provides a highly effective solution without the extended lead time of full fabrication.
A: A qualified supplier must hold critical industry certifications to ensure safety and reliability. Look for ISO 9001 for quality management systems. They should carry specific API monograms (like API 6D or 6A) and ASME stamps. Specific environmental compliance credentials, such as ISO 15848 for fugitive emissions, are also mandatory.
A: Custom valves match the exact flow coefficient (Cv) required by the process. This exact matching reduces unnecessary pressure drops and eliminates destructive cavitation. By optimizing the fluid path, pumps and compressors work less hard, directly improving overall system efficiency and reducing energy consumption.
