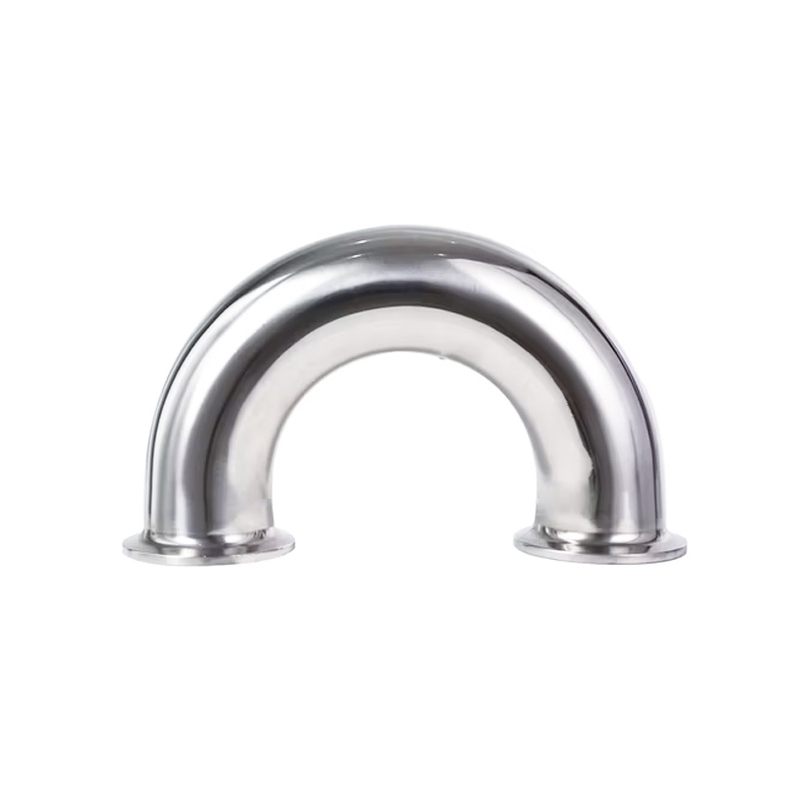

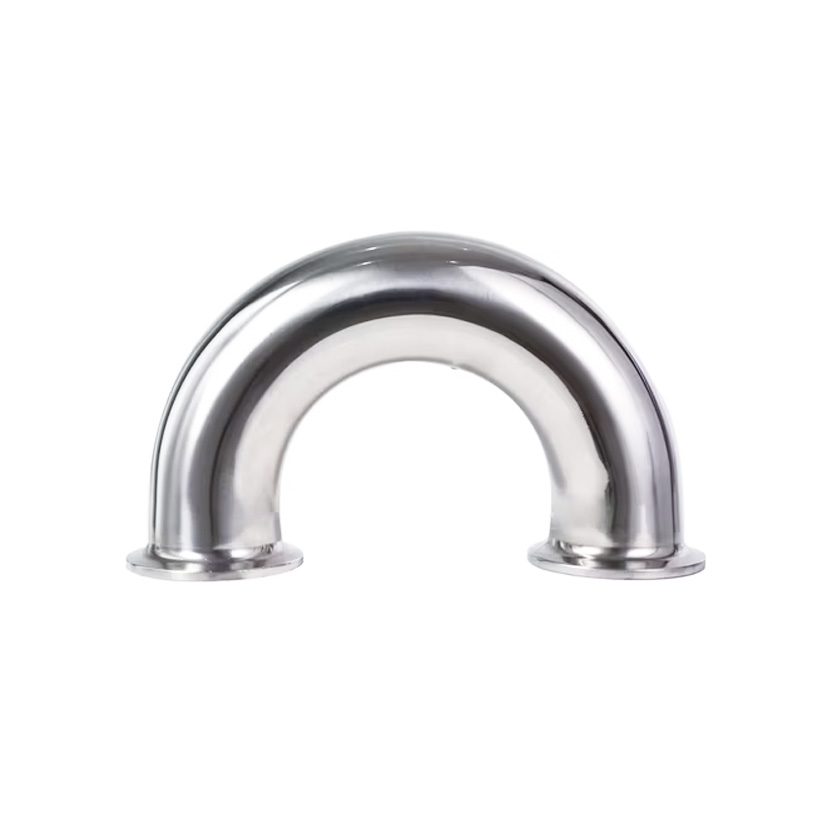

2WUMPCLAMP 180D RETURN BEND

Key Features

• Premium 304/316L Stainless Steel Construction – Offers outstanding resistance to corrosion, oxidation, and chemical attack, making it ideal for food, dairy, beverage, pharmaceutical, and cosmetic processing environments.

• 180° U-Bend Design – The smooth 180° curve enables complete flow reversal in a single fitting, eliminating the need for multiple elbows and reducing potential leak points.

• Tri-Clamp (Quick-Clamp) Connection – Features tri-clamp ferrules on both ends for quick and easy installation. Connections are easy to assemble and disassemble for cleaning and routine maintenance.

• Leak-Proof Sealing – When combined with a gasket and clamp, these fittings create a secure, leak-proof connection to tubing or other fittings.

• Compact Space-Saving Design – The 1.5x tube diameter bend radius allows for sharp directional changes in confined spaces, making it ideal for compact piping layouts.

• Polished Interior / Brushed Exterior Finish – The smooth internal finish reduces bacterial adhesion and residue buildup, minimizing contamination risk.

• Full Material Traceability – Material certifications and test reports are available upon request, ensuring complete quality assurance and compliance.

• Wide Size Range – Available from 1" to 4" to accommodate diverse system requirements-.

• Customization Available – OEM and ODM services are available, with production according to customer specifications.

How It Works

The 2WUMPCLAMP 180D Return Bend functions as a flow reversal fitting that enables fluid or gas to change direction by 180 degrees within a piping system.

1. 180° Flow Reversal – The fitting features a smooth U-shaped curve that redirects process flow in the opposite direction. This eliminates the need for two 90° elbows and a connecting pipe section, reducing installation complexity and potential leak points.

2. Tri-Clamp Connection – Each end is equipped with a tri-clamp ferrule. A gasket is placed between the ferrule and the mating fitting, and a clamp is tightened around the ferrule to create a secure, sanitary seal.

3. Compact Installation – With a 1.5x tube diameter bend radius, the return bend fits into tight spaces where standard long-radius bends cannot be accommodated.

4. Easy Maintenance – The clamp connection allows for quick disassembly without special tools, facilitating thorough cleaning and routine maintenance.

This design is particularly valuable in hygienic sanitary applications where flow reversal, compact layouts, and CIP compatibility are essential.

Why Choose Our 2WUMPCLAMP 180D Return Bend?

• Superior Material Quality – Made from 304 or 316L stainless steel, offering excellent corrosion resistance and durability for demanding sanitary applications.

• Hygienic Design – The polished interior finish reduces bacterial adhesion and residue buildup, critical for food, dairy, beverage, and pharmaceutical applications.

• Certified Quality – 3A Certified, CE Certified, and ISO 9001 Certified, ensuring compliance with rigorous industry standards for sanitary fittings.

• Complete Traceability – Material certifications and test reports are available upon request for full quality documentation.

• Space-Saving Solution – The 1.5x tube diameter bend radius allows for installation in confined spaces without compromising performance.

• Quick and Easy Installation – The tri-clamp connection enables fast assembly and disassembly without special tools, reducing downtime during maintenance.

• Versatile Applications – Suitable for food processing, dairy, beverage, personal care, cosmetics, pharmaceutical, brewing, and chemical industries.

• Flexible Customization – OEM and ODM services are available, with production according to customer drawings and specifications.

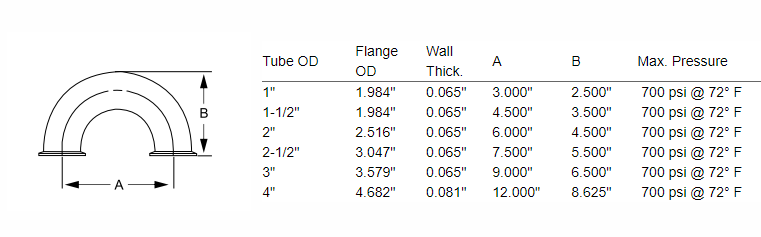

Technical Specifications
