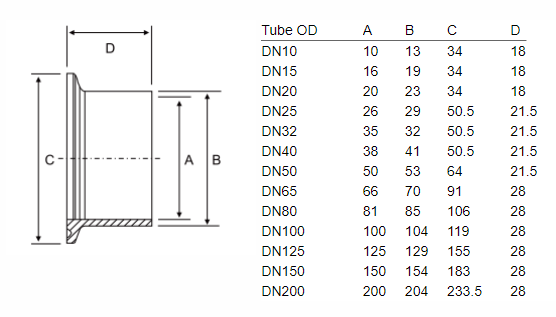

D14AM7 FERRULES

Key Features

• Permanent Welded Connection – Butt weld design creates a permanent, leak-proof joint between tubing and the ferrule-

• Tri-Clamp Interface – Ferrule end is precision-machined to accept standard tri-clamp connections, enabling tool-free assembly and disassembly of process lines

• Long Weld Design – Extended length provides extra welding space, ensuring proper weld penetration and joint strength

• Hygienic Surface Finish – Minimum 32 RA internal surface finish for superior cleanability and corrosion resistance

• High Corrosion Resistance – Available in 304 and 316L stainless steel for exceptional durability in demanding environments

• Full Material Traceability – Each ferrule is stamped with heat lot numbers for complete material traceability and quality assurance

• Multiple Standards Compliance – Manufactured to ASME BPE, 3-A, DIN, SMS, and I-line standards

Advantages

• Versatile System Design – Enables permanent welded connections to be combined with removable tri-clamp fittings, offering the best of both worlds

• Superior Weld Quality – Long ferrule design provides extra welding space, reducing the risk of weld contamination and ensuring stronger, more reliable joints

• Hygienic Operation – Smooth surface finish and crevice-free design meet 3A Sanitary Standards, making it suitable for sterile and high-purity applications

• Easy System Maintenance – Tri-clamp interface allows for rapid disassembly of process lines for cleaning, inspection, or component replacement

• Full Traceability – Heat lot number stamping provides complete material traceability for regulated industries

How It Works

The 14AM7 Tri-Clamp Long Weld Ferrule operates as a transition component between welded tubing and tri-clamp connections:

1. Welding – The ferrule is butt welded to the end of a stainless steel tube or pipe, creating a permanent, leak-proof joint

2. Surface Preparation – The welded assembly is polished to achieve the required surface finish (minimum 32 RA) for sanitary applications

3. Gasket Placement – A sanitary gasket is placed between the ferrule face and the mating tri-clamp fitting, creating a hygienic seal

4. Clamp Securing – A tri-clamp is tightened over the ferrule ends, compressing the gasket to form a leak-proof, pressure-tight connection

5. Quick Disassembly – Simply loosening the clamp allows for instant disconnection for cleaning, maintenance, or process changes
