Eccentric Offset Design – Centerlines are offset to maintain a flat bottom alignment in horizontal piping, ensuring complete drainage and preventing fluid pooling
DIN 11852 Standard Compliance – Manufactured to DIN 11852 / EN 10374 specifications, the leading European standard for hygienic tubing systems
Smooth Crevice-Free Transition – Cold-formed construction ensures a seamless, crevice-free internal surface that eliminates bacterial harborage sites
High Corrosion Resistance – Constructed from premium 304 and 316L stainless steel for exceptional durability in demanding hygienic environments
Weld-End Connections – Designed for orbital or TIG welding, providing permanent, hygienic, and leak-proof joints

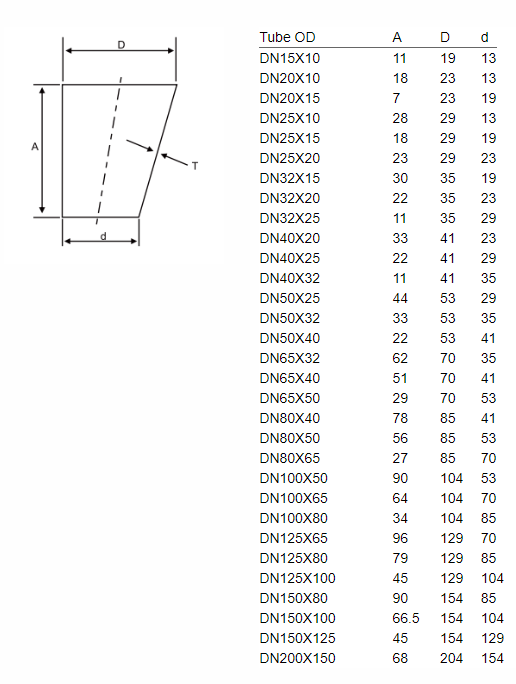

Wide Size Range – Available from DN15 to DN150 with various inlet-to-outlet combinations
Superior Surface Finish – Internal surface finish Ra ≤ 0.8μm standard, with electropolished options available for enhanced cleanliness
CIP/SIP Compatible – Fully supports Clean-In-Place and Sterilize-In-Place procedures-
Prevents Pump Cavitation – The eccentric (flat-top) design allows air to pass through the system immediately, protecting expensive pumps and flow meters from cavitation damage – a critical advantage over concentric reducers in horizontal pump suction applications
Complete Drainage – Flat bottom alignment ensures no fluid pooling or product retention, reducing contamination risks and improving product yield
Superior Hygiene – Smooth, crevice-free internal surfaces minimize bacterial growth and meet GMP/HACCP standards for sterile processing
Enhanced CIP Efficiency – Optimized internal geometry reduces cleaning time and chemical usage, ensuring rapid and effective cleaning cycles
Versatile Applications – Suitable for food processing, beverage production, dairy, pharmaceutical, biotech, brewery, and fine chemical industries
Permanent Reliability – Weld-end connections provide permanent, leak-proof joints with no seals or gaskets to fail
Orbital Welding Ready – Extended tangents and strict dimensional tolerances ensure consistent weld bead penetration during automatic orbital welding
The D32W DIN 11852 Eccentric Reducer operates as a diameter transition component within a sanitary welded piping system:
Diameter Transition – The reducer connects a larger diameter pipe to a smaller diameter pipe, gradually reducing the flow cross-section to control fluid velocity and adapt to downstream equipment requirements
Eccentric Flow Path – Unlike concentric reducers that maintain a common centerline, the eccentric design offsets the centerlines, creating a flat bottom that keeps the pipe invert level
Weld-End Installation – Both ends are welded (orbital or TIG) to mating pipes, creating a permanent, hygienic, and crevice-free joint that eliminates leak points
Air Management – In horizontal installations, the flat-top orientation allows entrained air or gases to flow through rather than becoming trapped, preventing cavitation in downstream pumps
Complete Drainage – The flat bottom ensures full drainage during CIP cycles, preventing product residue accumulation and bacterial growth
Certified Quality – All our D32W DIN 11852 Eccentric Reducers are 3A Sanitary Standards certified, meeting the highest standards for sanitary fittings. We also hold CE certification and ISO 9001 quality management system certification, ensuring consistent product excellence-
Premium Materials – We use only high-grade 304 (1.4301) and 316L (1.4404) stainless steel, offering exceptional corrosion resistance and longevity
Cold-Formed Construction – Our reducers are cold-pressed or hydroformed for seamless construction, ensuring superior strength and a smooth internal transition
Stringent Quality Control – Every fitting undergoes rigorous inspection to ensure dimensional accuracy, surface finish quality (Ra < 0.8μm), and performance reliability
Extensive Size Range – From DN15 to DN150 with multiple inlet-to-outlet combinations, we offer the full spectrum of sizes to meet your specific requirements
Orbital Welding Optimized – Extended tangents and strict dimensional tolerances ensure consistent, high-quality welds in automated welding processes
Competitive Pricing – Direct manufacturing capabilities allow us to offer factory-direct pricing without compromising quality
Expert Support – Our team of sanitary fitting specialists provides technical guidance to help you select the right product for your application
Global Compliance – Products meet DIN 11852, 3A, and ASME BPE standards and international sanitary fitting specifications
Reliable Supply Chain – Consistent inventory and fast shipping ensure your projects stay on schedule
Q: What does "D32W" mean?
A: "D32W" is a product series/model designation for this DIN 11852 eccentric reducer. It identifies the specific configuration and size range of the fitting.
Q: What is the difference between eccentric and concentric reducers?
A: Eccentric reducers have offset centerlines and maintain a flat bottom, making them ideal for horizontal piping where complete drainage and air elimination are critical. Concentric reducers maintain a common centerline and are typically used in vertical piping applications-.
Q: Why choose an eccentric reducer for horizontal pump suction?
A: In horizontal pump suction applications, a concentric reducer can trap air at the top of the pipe, causing cavitation that damages pumps. An eccentric reducer with flat-top installation allows air to pass through immediately, protecting expensive equipment.
Q: What materials are available?
A: Our D32W DIN 11852 Eccentric Reducers are available in 304 stainless steel and 316L stainless steel. 316L offers enhanced corrosion resistance for more demanding pharmaceutical and biotech applications.
Q: What certifications do your products have?
A: Our fittings are 3A Sanitary Standards certified, CE certified, and manufactured under an ISO 9001 certified quality management system. Material test reports are supplied with each order.
