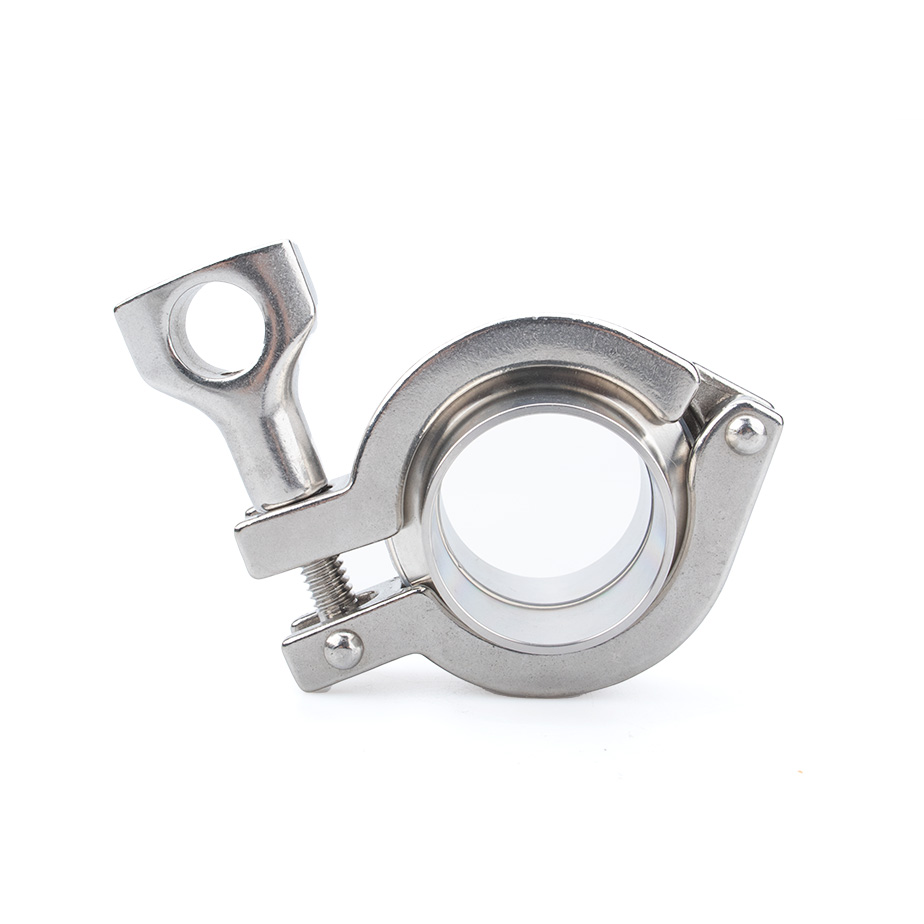

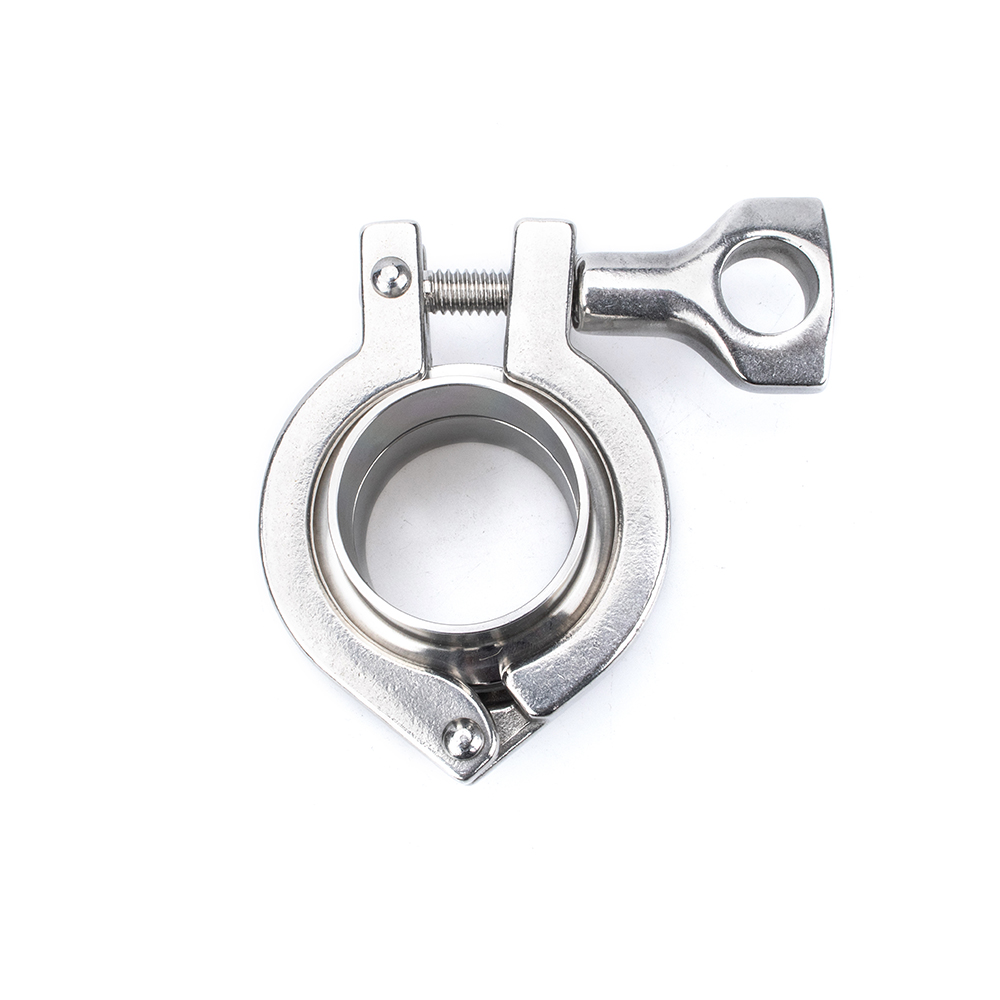

The D13MHHM Single Pin Heavy Duty Clamp is a robust, high‑performance sanitary clamp designed for quick, secure, and leak‑proof connections in demanding hygienic piping systems.
| Quantity: | |
|---|---|
Single‑Pin Hinge Design – The robust single‑pin hinge ensures smooth, precise closing and even compression around the gasket for a consistent, leak‑free seal
Heavy‑Duty Construction – Thicker material and reinforced geometry provide superior clamping force and resistance to deformation, even under high pressure and frequent thermal cycling
Quick‑Release Mechanism – A single‑action tightening (using a hand‑operated wing nut or T‑bar) enables instant clamp‑on and clamp‑off without special tools
Hygienic Surface Finish – Smooth, crevice‑free surfaces prevent bacterial accumulation and meet 3A Sanitary Standards for food and dairy equipment
High Corrosion Resistance – Available in 304 and 316L stainless steel for long‑life performance in aggressive or high‑temperature environments

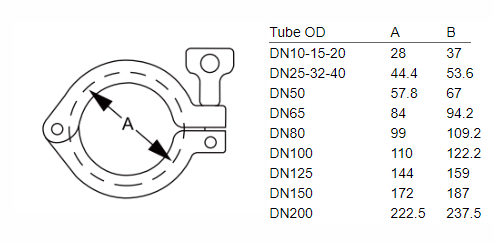

Wide Size Compatibility – Available for tube OD sizes from 1/2″ to 12″ and compatible with all standard sanitary ferrule profiles
Interchangeable Design – Fits most industry‑standard gaskets and ferrules, ensuring seamless integration into existing systems
Time‑Saving Operations – Single‑pin quick‑release design eliminates the need for bolts, nuts, or wrenches, reducing installation and maintenance time by up to 70%
Reliable Sealing – The heavy‑duty construction provides consistent clamping force that compensates for gasket compression and thermal expansion, ensuring zero leakage
Easy Cleaning & Sterilization – Tool‑free disassembly allows for rapid CIP/SIP (Clean‑In‑Place / Sterilize‑In‑Place) and thorough visual inspection
Long Service Life – Forged from solid stainless steel with 3A certification, the clamp withstands repeated sanitization cycles without losing strength or sealing performance
Versatile Application – Suitable for high‑pressure, high‑temperature, and vacuum services across food, dairy, beverage, pharmaceutical, and biotech processes
Reduced Inventory – One clamp design fits multiple ferrule sizes (with appropriate gaskets), simplifying spare parts management
Worker Safety – The single‑pin design eliminates loose parts, reducing the risk of dropped components in sensitive production areas
The D13MHHM Single Pin Heavy Duty Clamp operates on a simple yet highly effective mechanical principle:
Alignment – The clamp is positioned over the two mating ferrule ends (or a ferrule and a blank cap). The single‑pin hinge aligns the two halves of the clamp.
Gasket Compression – As the clamp is closed, the internal groove presses against the ferrule faces, compressing the sanitary gasket uniformly between them.
Tightening – The wing nut or T‑bar is hand‑tightened, drawing the clamp halves together. The heavy‑duty geometry converts tightening torque into high, even sealing force around the entire circumference.
Seal Formation – The compressed gasket forms a hygienic, crevice‑free seal that prevents fluid escape and eliminates dead spaces.
Release – Loosening the wing nut and opening the clamp (by pivoting on the single pin) allows instant separation of the connection for cleaning, maintenance, or product changeover.
The single‑pin hinge ensures that the clamp remains a single assembly – no separate pins or parts to lose – making it ideal for environments where speed, hygiene, and reliability are critical.
Certified Quality – Our D13MHHM Single Pin Heavy Duty Clamps are 3A Sanitary Standards certified, meeting the strictest hygiene requirements for dairy and food processing. We also hold CE certification and ISO 9001 quality management system certification, ensuring every clamp meets rigorous performance and safety standards.
Premium Materials – We use only high‑grade 304 and 316L stainless steel with full material traceability, offering outstanding corrosion resistance and mechanical strength.
Heavy‑Duty Engineering – Our clamps feature reinforced profiles and precision‑machined hinge pins for superior clamping force and extended service life under heavy‑use conditions.
Stringent Quality Control – Each clamp undergoes dimensional inspection, surface finish verification, and functional testing to guarantee consistent sealing performance.
Wide Size & Standard Range – We offer sizes from 1/2″ to 12″ in Tri‑Clamp, DIN 11851, and SMS configurations to suit your system needs.
Competitive Pricing – Direct manufacturing and efficient production allow us to deliver factory‑direct pricing without sacrificing quality.
Expert Technical Support – Our experienced engineering team provides application guidance to help you select the right clamp, gasket, and torque for your process.
Reliable Supply & Fast Delivery – Large inventory and streamlined logistics ensure your orders are shipped promptly, keeping your projects on schedule.
