Isolating high-solid, abrasive, or viscous media in heavy industrial pipelines presents a distinct engineering challenge. System designers constantly balance the need for reliable shut-off against the risk of over-specifying costly exotic alloys or deploying valve types prone to clogging. When handling dense slurries, standard manual handwheels frequently fail to overcome the immense torque requirements of large-scale pipelines. Operators face severe physical strain, and mechanical components risk premature failure. Furthermore, relying on stainless steel construction in non-corrosive, heavy-wear environments introduces significant financial inefficiency without delivering proportional performance benefits. The ductile iron knife gate valve emerges as the standard mechanical solution to these operational bottlenecks. By integrating a mechanical gear operator with a high-strength nodular iron body, this configuration successfully balances high tensile strength, mechanical advantage, and simple structural reliability. It provides the necessary shearing force to cut through dense media while maintaining cost-efficiency in heavy-duty applications where aggressive corrosion is not the primary threat.
Material Economics: Ductile iron (specifically GGG40) provides superior impact resistance and tensile strength compared to standard cast iron, offering a cost-effective alternative to stainless steel for non-corrosive slurries and non-hazardous media.
Actuation Necessity: Gear operators are mandatory for a large diameter knife gate valve to safely and effectively manage the high torque required to shear through dense media.
Primary Use Cases: These valves are the industry standard for wastewater treatment, pulp and paper processing, biogas plants, and as a reliable knife gate valve for mining slurry.
Sourcing Reliability: Selecting a qualified ductile iron knife gate valve supplier requires evaluating their adherence to pressure testing standards (e.g., AWWA, EN), material traceability, and available body styles (wafer, lug, flanged).

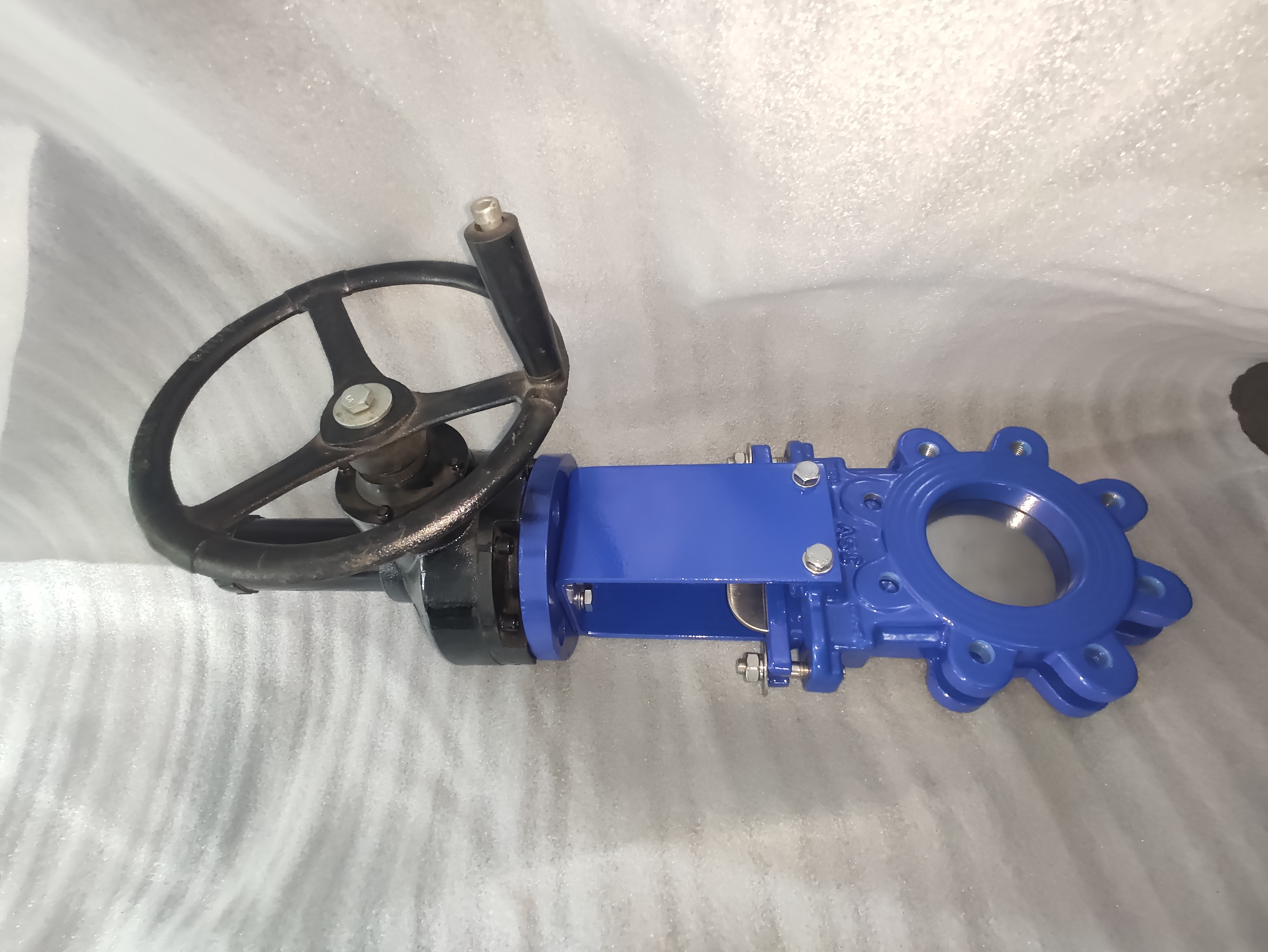

To understand why this specific valve configuration succeeds where others fail, you must examine its core mechanical profile. The success of a gear operated knife gate valve relies on three integrated factors: a sharp-edged gate designed for shearing solids, a high-strength ductile iron body capable of withstanding pipeline stress, and mechanical torque multiplication to ensure consistent actuation under load.
Engineers often attempt to use butterfly valves in slurry applications due to their compact footprint. This approach consistently leads to operational failure. Butterfly valves feature a central disc that sits directly in the flow path. When handling heavy slurries, this disc obstructs the flow, creating pressure drops and allowing solid particulates to accumulate around the seating area. The media dewaters around the shaft, packing solid over time. Eventually, the trapped solids prevent the disc from seating properly, leading to catastrophic seal failure and pipeline leakage.
In contrast, the knife gate valve features an unobstructed full-bore design. When the valve is open, the gate retracts entirely from the flow path, eliminating areas where solids can accumulate. During closure, the beveled, sharp-edged gate drives downward, actively shearing through fibrous materials, sludge, and dense particulates to achieve a tight seal against the elastomer seat.
Feature | Knife Gate Valve | Butterfly Valve |
|---|---|---|
Flow Path | Full bore, unobstructed when open. | Obstructed by central disc and shaft. |
Slurry Handling | Excellent. Shears through solids. | Poor. Solids pack around the disc. |
Pressure Drop | Minimal to zero. | Moderate to high due to flow restriction. |
Maintenance | Packing gland adjustable inline. | Requires removal from line for seat repair. |
Material selection dictates both the longevity and the economic viability of the pipeline. A GGG40 knife gate valve utilizes nodular cast iron, which contains graphite in a spherical nodular form rather than the flake form found in standard gray cast iron. This metallurgical difference significantly alters the physical properties of the valve body.
GGG40 ductile iron offers exceptional yield strength (typically around 250 MPa) and elongation properties. It can absorb mechanical shocks, pipeline vibrations, and pressure spikes without fracturing. Standard gray cast iron remains highly brittle; a sudden hydraulic shock or physical impact from heavy equipment can cause a gray iron valve body to crack, leading to immediate system failure. On the other end of the spectrum, stainless steel provides excellent corrosion resistance but introduces unnecessary costs in neutral pH environments. For non-corrosive slurries, wastewater, and dry bulk handling, GGG40 delivers the structural integrity of steel at a fraction of the material cost.
Manually closing a valve against a column of dense, moving fluid requires substantial physical force. As valve diameters increase, the surface area of the gate expands, multiplying the friction against the seat and the resistance from the media. Relying on a standard manual handwheel in these scenarios poses ergonomic risks to operators and often results in incomplete valve closure.
Bevel gear operators resolve this by utilizing a system of interlocking gears to reduce the physical input force required. The gear ratio (often 3:1 or 4:1) multiplies the operator's input torque, transferring immense downward force to the valve stem via a bronze stem nut. Industry standards dictate that transitioning from a manual handwheel to a gear operator becomes structurally and operationally necessary for valves exceeding DN300 (12 inches) in size, or in high-pressure lines where the differential pressure across the gate demands excessive seating force. The thrust bearings within the gear operator absorb the vertical load, preventing the stem from buckling under extreme pressure.
The structural advantages of ductile iron combined with gear actuation make these valves the default choice across several heavy industries. Their deployment is dictated by the specific characteristics of the media being handled.
Municipal wastewater networks rely heavily on robust isolation valves to manage raw sewage, heavy sludge, and grit chambers. In grit chambers specifically, the media contains high concentrations of sand, gravel, and inorganic solids. Standard valves trap this grit in their seating mechanisms, preventing closure. The ductile iron body easily withstands the physical demands and external environmental stresses of underground or exposed municipal networks. Simultaneously, the sharp gate effectively shears through fibrous blockages, rags, and solid waste that routinely cripple other valve types, pushing the grit out of the seating area as it closes.
System designers must recognize specific zones within treatment plants where material upgrades are necessary. While ductile iron handles raw sewage perfectly, highly corrosive chemical dosing areas (such as chlorine or ferric chloride injection points) require upgrading to a stainless steel body to prevent rapid material degradation. In primary clarifier sludge lines, the gear operator ensures operators can isolate pumps safely without straining against compacted sludge.
Mining operations pump highly abrasive, dense particulate media over long distances. A knife gate valve for mining slurry must withstand constant scouring from rocks, sand, and mineral ores. The high tensile strength of the ductile iron body provides the necessary external pressure containment for high-head tailings lines.
To combat internal abrasion, these valves are typically paired with heavy-duty, replaceable seat materials. Thick polyurethane or natural rubber seats absorb the impact of abrasive particles, protecting the ductile iron body from internal wear while ensuring a drop-tight seal when the gate is driven closed by the gear operator.
When installing these valves in a tailings line, field crews follow a strict sequence:
Verify the pipeline is fully depressurized and drained before unbolting the existing spool piece.
Inspect the mating flanges for gouges or uneven wear that could compromise the flange gasket seal.
Hoist the valve into position using the designated lifting lugs on the ductile iron body, never lifting by the gear operator handwheel.
Insert the lower flange bolts first to create a cradle for the valve, then align the remaining bolt holes.
Tighten the flange bolts in a star pattern to the manufacturer's specified torque to prevent distorting the valve body.
Paper mills process heavy paper stock, recycled fibers, and various liquors. The fibrous nature of paper pulp, often reaching 4% to 8% consistency, makes it notorious for clogging standard valves. The uni-directional shearing action of the knife gate valve prevents pulp buildup in the seating area. As the gate descends, it cuts cleanly through the thick stock, ensuring reliable isolation for maintenance or flow diversion without requiring constant manual cleanouts. They are heavily utilized on high-density stock cleaners, blow tank isolation lines, and in handling black and green liquors where reliable shut-off is mandatory for plant safety.
Anaerobic digestion systems process agricultural slurries, digestate, and thick organic waste. These facilities require reliable, non-hazardous media shut-off to isolate different digester tanks and manage the flow of thick organic matter. The gear-operated ductile iron valve provides the necessary torque to cut through dense organic slurries, ensuring secure isolation during maintenance cycles while keeping infrastructure costs manageable.
Gravity-fed dry solids, wet sand, and pneumatic conveying systems require robust isolation mechanisms. A large diameter knife gate valve is frequently deployed at silo outlets, cement batching plants, and in dredging operations. The gear operator allows precise, controlled closure against falling bulk materials, preventing the gate from jamming while the ductile iron body resists the structural stress of heavy bulk loads.
Specifying the correct valve requires matching the mechanical features to the exact pipeline conditions. Designers must evaluate connection styles, pressure limits, stem designs, and elastomer compatibility.
The method of installing the valve into the pipeline directly impacts maintenance capabilities and structural rigidity.
Body Style | Installation Method | End-of-Line Capability | Best Application |
|---|---|---|---|
Wafer | Clamped between flanges with long bolts. | No. Cannot hold pressure if downstream pipe is removed. | Space-constrained areas, budget-conscious projects. |
Lug | Bolted directly into tapped holes on the valve body. | Yes. Allows downstream pipe removal. | Systems requiring frequent maintenance or modular piping. |
Flanged | Bolted flange-to-flange. | Yes. Maximum structural rigidity. | Extreme heavy-duty, high-vibration, or large diameter lines. |
Ductile iron bodies typically achieve standard pressure ratings such as PN10, PN16, or Class 150. It is critical to note that while these valves handle high pressures for liquids and slurries, they are strictly limited to non-hazardous media and are never suitable for lethal gases or high-pressure steam.
Flow direction is equally important. Standard slurry isolation utilizes uni-directional valves, designed to hold pressure from one specific side, utilizing the media pressure to push the gate against the seat. In complex manifolds where backflow is a risk, bi-directional configurations are necessary to maintain a seal regardless of which direction the pressure originates. Installing a uni-directional valve backward will result in immediate leakage under pressure.
Space constraints dictate the choice of stem configuration. A Rising Stem design attaches the stem directly to the gate; as the valve opens, the stem rises out of the gear operator. This provides immediate visual indication of the valve's position but requires significant vertical clearance above the pipeline. A Non-Rising Stem design threads the stem into the gate. The stem rotates but does not move vertically, making it ideal for compact spaces or underground vaults, though it requires separate mechanical position indicators to confirm whether the valve is open or closed.
The ductile iron body provides the structure, but the elastomer seat dictates the seal. Selecting the correct seat material based on the media is non-negotiable.
Seat Material | Temperature Limit | Primary Industrial Application |
|---|---|---|
EPDM | Up to 120°C | Municipal water, wastewater, and mild alkaline slurries. |
NBR (Nitrile) | Up to 90°C | Oil-contaminated media, hydrocarbons, and biogas digestate. |
Polyurethane | Up to 80°C | Highly abrasive mining slurries and sand handling. |
PTFE (Teflon) | Up to 150°C | Mild chemicals and solvents requiring low friction. |
Metal-to-Metal | Above 200°C | Extreme abrasives, dry bulk solids, and high-temperature ash. |
Even robust mechanical systems face operational risks if deployed incorrectly. Anticipating these vulnerabilities ensures long-term pipeline reliability and reduces emergency downtime.
Bare ductile iron possesses excellent mechanical strength but lacks resistance to highly acidic or corrosive chemical environments. Deploying a standard GGG40 body in aggressive acid lines will result in rapid pitting, wall thinning, and eventual structural degradation.
To mitigate this, engineers specify fusion-bonded epoxy (FBE) coatings for the interior and exterior of the valve body, providing a barrier against mild corrosives and environmental moisture. For more aggressive environments, transitioning to stainless steel internals (the gate and stem) while retaining the coated ductile iron body offers a balanced compromise between cost and longevity.
Gear operators are exposed to environmental debris, dust, and moisture. Over time, lack of lubrication causes the bevel gears to bind, increasing the physical effort required to operate the valve and potentially stripping the gear teeth. Furthermore, the packing gland—the seal around the stem—will naturally wear down from the friction of the gate moving up and down.
Field maintenance teams must execute the following procedures to prevent mechanical failure:
Routinely pump high-temperature industrial grease into the bevel gear housing through the provided zerk fittings.
Inspect the stem threads for debris buildup and apply anti-seize compound to ensure smooth travel through the stem nut.
Monitor the packing gland for minor media leaks during operation.
Tighten the packing follower nuts evenly in a cross pattern to compress the packing material and stop leaks, being careful not to overtighten and bind the gate.
Replace the braided packing material entirely during scheduled plant shutdowns if tightening no longer stops the leak.
Closing a large diameter valve too quickly in a high-velocity pipeline creates hydraulic shock, commonly known as water hammer. This sudden pressure spike travels back through the fluid column and can rupture pipes, damage supports, and destroy the valve itself.
Gear operators naturally mitigate this risk. Unlike fast-acting pneumatic or hydraulic actuators, the mechanical gear reduction forces a slow, deliberate closing speed. The operator must turn the handwheel multiple times to achieve full travel, naturally regulating the flow reduction and preventing the sudden fluid deceleration that causes water hammer.
The physical performance of the valve is entirely dependent on the quality control processes of the facility that produces it. Sourcing from a reputable ductile iron knife gate valve supplier requires looking beyond basic specifications and examining their manufacturing infrastructure.
A qualified manufacturer must demonstrate robust in-house capabilities. Look for facilities that control their own foundry processes, ensuring the metallurgical integrity of the ductile iron pours. CNC machining precision is critical for ensuring the gate aligns perfectly with the seat and the packing chamber is machined to exact tolerances. Furthermore, ISO 9001 certification and the ability to produce multiple body styles (wafer, lug, flanged) indicate a mature, reliable production environment capable of handling complex industrial orders.
Never accept valves without documented proof of performance. Buyers must demand hydrostatic shell and seat leak testing reports from the knife gate valve manufacturer. These tests, conducted according to API 598 or EN 12266-1 standards, prove the valve body can withstand pressure without rupturing and the seat will not leak under rated conditions. The hydrostatic shell test involves filling the valve with water and pressurizing it to 1.5 times its maximum rated working pressure for a specified duration to verify structural integrity. Additionally, request Mill Test Reports (MTRs) to verify the exact chemical composition, yield strength, and tensile strength of the GGG40 material batch used for your specific valves.
Compile your exact pipeline specifications, including flow rate, media density, maximum operating pressure, and temperature limits.
Evaluate the media pH and abrasiveness to determine if standard GGG40 ductile iron requires fusion-bonded epoxy coatings or specialized elastomer seats.
Calculate the required operating torque based on valve diameter and differential pressure to properly size the bevel gear operator.
Request documented hydrostatic shell and seat leak testing reports, along with Mill Test Reports (MTRs), from your selected manufacturer before finalizing the purchase order.
A: The difference lies in their mechanical properties. GGG40 offers higher elongation and excellent impact resistance, making it the standard for most industrial valves. GGG50 provides higher tensile strength but slightly lower elongation, making it more rigid. For standard slurry and wastewater isolation, GGG40 is the preferred specification.
A: Butterfly valve discs sit directly in the flow path, trapping solid particulates which eventually prevent the valve from sealing. Knife gate valves feature a full, unobstructed bore. Their sharp-edged gate is specifically designed to shear through thick media and solids during closure, ensuring a tight seal without clogging.
A: Gear operators should be specified when the valve size exceeds DN300 (12 inches) or in high-pressure applications. At these thresholds, the friction and media resistance against the large gate create torque requirements that exceed ergonomic safety limits for manual handwheel operation.
A: Bare ductile iron is unsuitable for highly corrosive or acidic chemicals as it will rapidly degrade. For mild corrosives, the iron body can be protected with fusion-bonded epoxy (FBE) coatings. For aggressive chemical processing, you must shift to stainless steel or specialized alloy bodies.
A: Standard knife gate valves are designed strictly for on/off isolation. Throttling highly abrasive media causes rapid, uneven wear on the gate and seat, leading to premature leakage. If flow control is required, specialized V-port knife gate valves must be specified.
A: Pressure ratings typically decrease as the valve diameter increases due to the massive surface area of the gate. While smaller valves easily handle PN10 or PN16 (150 psi), very large diameter valves may be de-rated to lower pressures depending on the manufacturer's structural design.
