When specifying Class 300 ball valves for industrial piping, many engineers encounter a frustrating issue: the valve works fine under static pressure, but it becomes hard to operate, gets stuck, or cannot seal tightly when there is a large pressure difference across the ball.
This common problem does not always mean the valve is defective. Most failures under high differential pressure stem from improper valve structure selection rather than poor manufacturing quality.
Differential pressure refers to the pressure difference between the upstream and downstream sides of the ball. For a floating ball Class 300 ball valve, the upstream fluid pressure pushes the ball firmly against the downstream seat.
When the delta-P (differential pressure) is high, the ball is pressed tightly onto the sealing face. This creates excessive friction between the ball and seat. That is exactly why the handwheel becomes stiff, or the valve even locks up and cannot be turned.
Hard operation / Valve stuck
High differential pressure forces the ball against the seat. Friction spikes sharply. Operators struggle to rotate the handwheel. In severe cases, the valve cannot open or close manually. This risk rises significantly for floating ball designs under large pressure delta.
Internal leakage after closure
If the seat cannot absorb the heavy thrust from high differential pressure, the sealing contact will deform gradually. The valve passes the pressure test at the factory, but it starts leaking in service after repeated high differential pressure cycles.
Seat damage and short service life
Continuous high thrust wears the seat material. PTFE or RPTFE soft seats are vulnerable. Once scratches appear on the sealing surface, permanent leakage occurs.

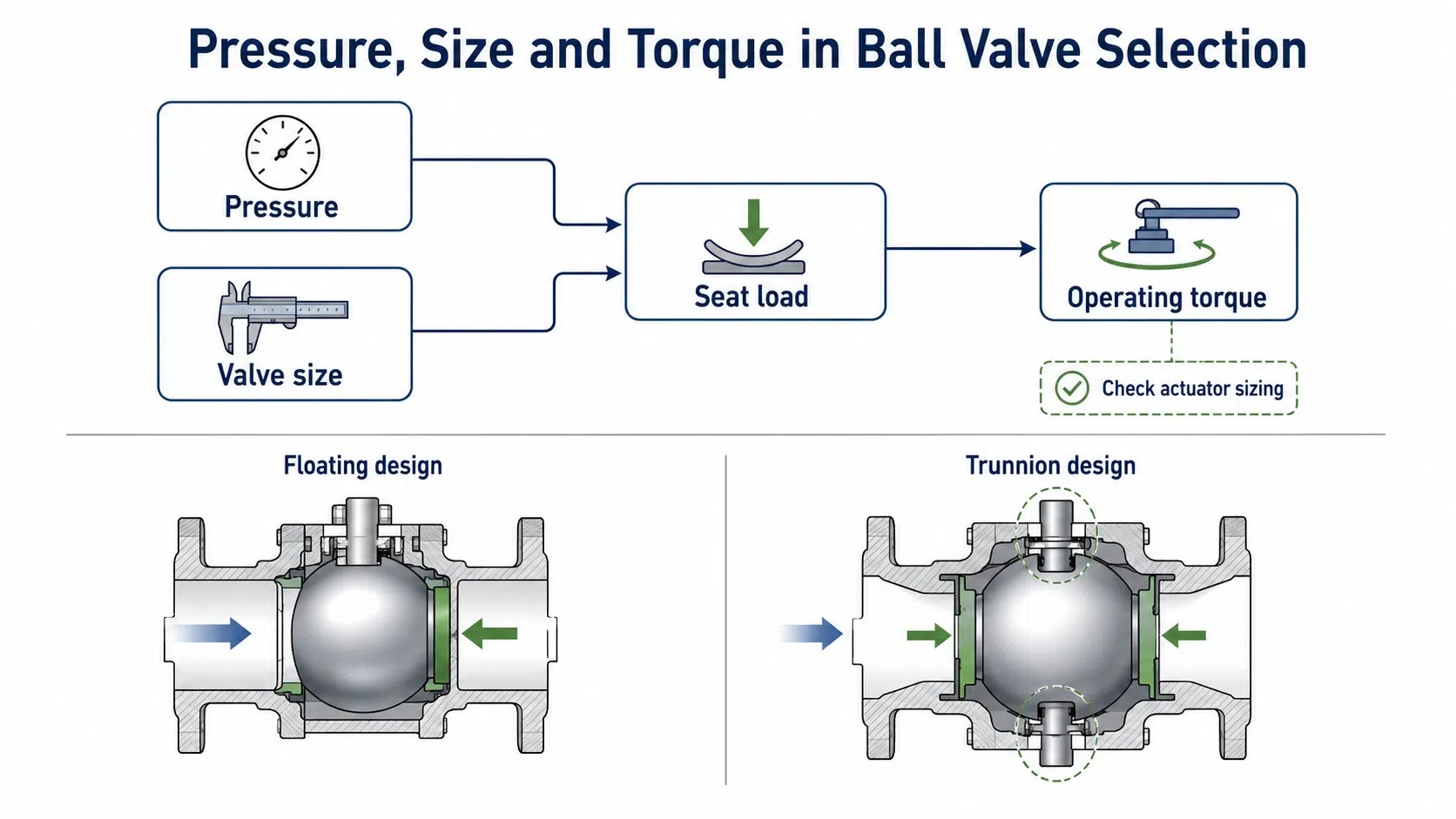

Differentiate floating ball and trunnion mounted ball valves
Floating ball Class 300 ball valves are suitable for low-to-medium differential pressure. For applications with sustained high delta pressure, a trunnion mounted ball valve is the preferred solution. The trunnion supports the ball and absorbs most fluid thrust, greatly reducing operating torque.
Review your actual differential pressure, not just nominal Class 300 rating
Class 300 defines the maximum allowable working pressure at designated temperature. It does not mean the valve can handle unlimited differential pressure. Always tell your valve supplier the maximum delta-P of your pipeline.
Choose proper seat material
Metal-seated ball valves offer better resistance against high differential pressure and abrasive media. Soft seats work well for clean service but have limits under heavy thrust.
Consider short-stem design with adequate torque margin
If you select a short-stem Class 300 flanged ball valve, confirm the calculated operating torque covers your maximum differential pressure condition. A sufficient torque margin prevents stuck operation in the field.
A Class 300 pressure rating guarantees the valve body can hold pipeline pressure, but it does not eliminate high differential pressure risks. Many end-users mistakenly assume all Class 300 ball valves perform equally under any pressure difference.
The best practice is to share your maximum differential pressure, media type and operating temperature with your valve manufacturer at the early design stage.
If you need technical support to select a suitable Class 300 high-pressure ball valve for your project, contact our engineering team for a custom recommendation.
